Install the bumper carrier in the front top
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

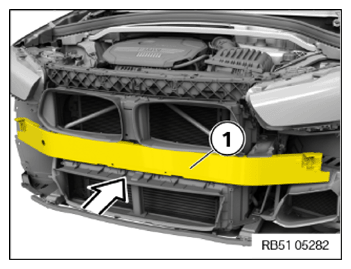

- Position the bumper carrier (1) at the front top.
- Tighten down screws (3).TIGHTENING TORQUE SPECIFICATIONS
Top front bumper support to top deformation element Hexagon screw
M8x95Tightening torque 28 Nm - Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Fanfare horn to top front bumper support Hexagon screw Tightening torque 11.8 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Bracing strut to top front bumper support or to top connection M6x20 screw Tightening torque 11.8 Nm
Follow-up work
- Refer to INSTALLING IMPACT ABSORBER .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
- Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
