Partially install the front wheel arch cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

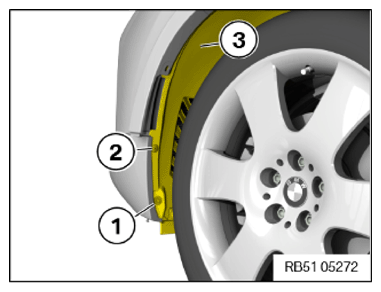

Fold the front wheel arch cover (3) forward.
Mount blind rivet (2) using the special tool 0 496 521 (00 2 230) .

Tighten down screw (1) .

Tightening torques

Front wheel arch cover to front bumper panel
Hexagon screw for thermoplastic plastic	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
