Connector To Fuse/Relay Box Index

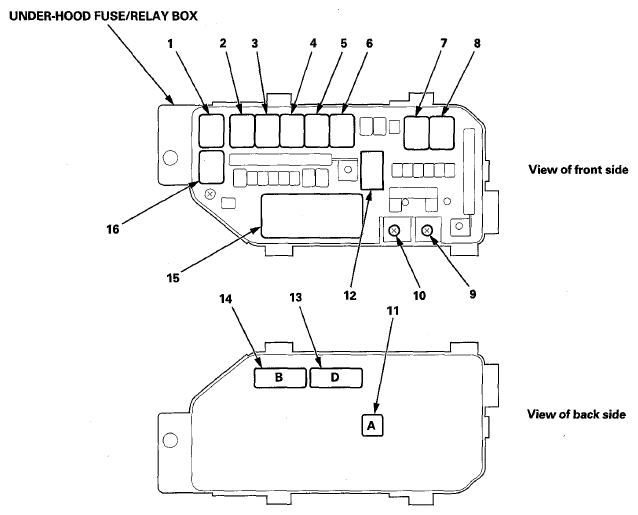

Under-Hood Fuse/Relay Box
UNDER-HOOD FUSE/RELAY CONNECTOR TERMINAL REFERENCE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (electrical load detector (ELD)) | 11 | 3 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| A/C compressor clutch relay | 16 | 4 | ||
| B (relay circuit board) | 14 | 14 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Blower motor relay | 1 | 4 | ||
| D (relay circuit board) | 13 | 10 | Left engine compartment wire harness (engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| ELD | 12 | 3 | Connector A (3P) | |
| Electronic throttle control system (ETCS) control relay | 6 | 4 | ||
| Horn relay | 2 | 4 | ||
| Ignition coil relay | 5 | 4 | ||
| PGM-FI main relay 1 | 3 | 4 | ||
| PGM-FI subrelay | 4 | 4 | ||
| Radiator fan relay | 7 | 4 | ||
| Rear window defogger relay | 8 | 4 | ||
| Relay circuit board | 15 | Connector B (14P) and connector D (10P) | ||
| T101 | 9 | - | Starter subharness (see STARTER SUBHARNESS ) | |
| T102 | 10 | - | Starter subharness (see STARTER SUBHARNESS ) |

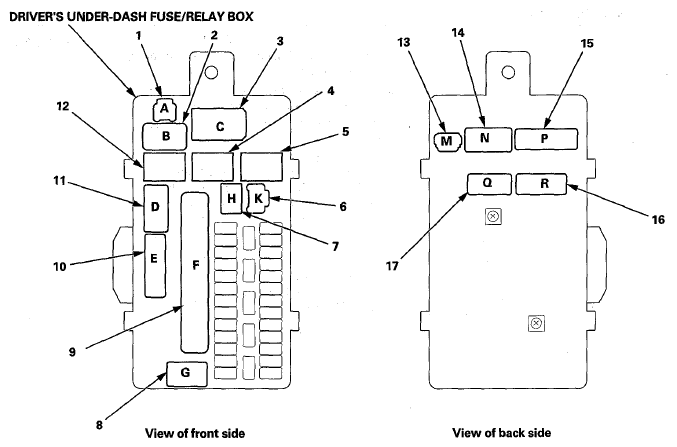

Driver's Under-Dash Fuse/Relay Box
DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR TERMINAL REFERENCE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 1 | - | Not used | |
| B | 2 | 2 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| C | 3 | 5 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| D | 11 | 16 | Left side wire harness
|
|
| E | 10 | 20 | Left side wire harness | |
| F | 9 | 33 | Left engine compartment wire harness (dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| Front accessory power socket relay | 4 | 4 | ||
| G | 8 | 13 | Left engine compartment wire harness (dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| H (optional connector) | 7 | 10 | ||
| K (MICU service check connector) | 6 | 2 | ||
| M | 13 | 2 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| N | 14 | 16 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| P | 15 | 20 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| PGM-FI main relay 2 | 12 | 4 | ||
| Q | 17 | 20 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| R | 16 | 24 | Dashboard wire harness (view of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| Starter cut relay | 5 | 4 |
Passenger's Under-Dash Fuse/Relay Box
PASSENGER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR TERMINAL REFERENCE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 1 | 38 | Dashboard wire harness (view of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |
| B | 8 | 1 | Dashboard wire harness (view of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |
| C | 7 | 12 | Dashboard wire harness (view of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |
| D | 2 | 28 | Audio wire harness
|
|
| E | 6 | 18 | Right engine compartment wire harness (dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| F | 5 | 2 | Not used | |
| G | 3 | 16 | Not used | |
| H | 4 | 38 | Right side wire harness
|
