Starter Subharness

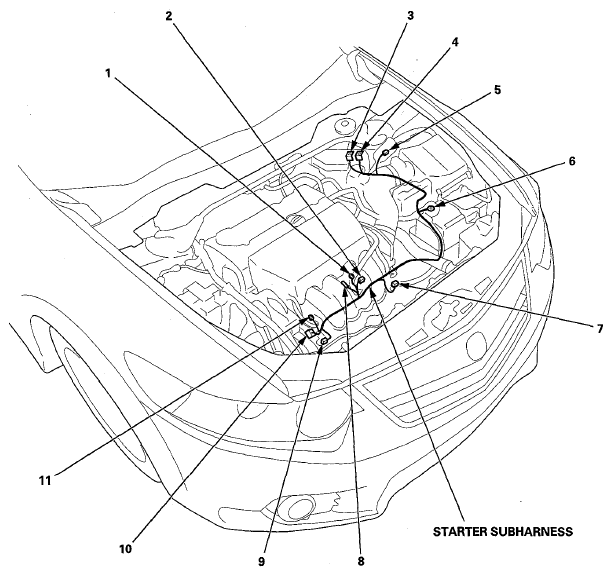

STARTER SUBHARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/C compressor | 9 | 3 | Right front of engine compartment | ||
| Alternator | 10 | 4 | Right front of engine compartment | ||
| Knock sensor | 8 | 1 | Front of engine | ||
| Starter solenoid | 2 | 1 | Front of engine | ||
| C102 | 7 | 10 | Front of engine | Engine wire harness
|
|
| C151 | 5 | 1 | Left side of engine compartment | Left engine compartment wire harness (engine compartment branch) | |
| T4 | 11 | Right front of engine compartment | Alternator +B terminal | ||
| T5 | 1 | Front of engine | Starter motor | ||
| T101 (battery) | 3 | Left side of engine compartment | Under-hood fuse/relay box | ||
| T102 (alternator) | 4 | Left side of engine compartment | Under-hood fuse/relay box | ||
| (+) | 6 | Left side of engine compartment | Battery positive terminal |
