Left Side Wire Harness (Sedan)

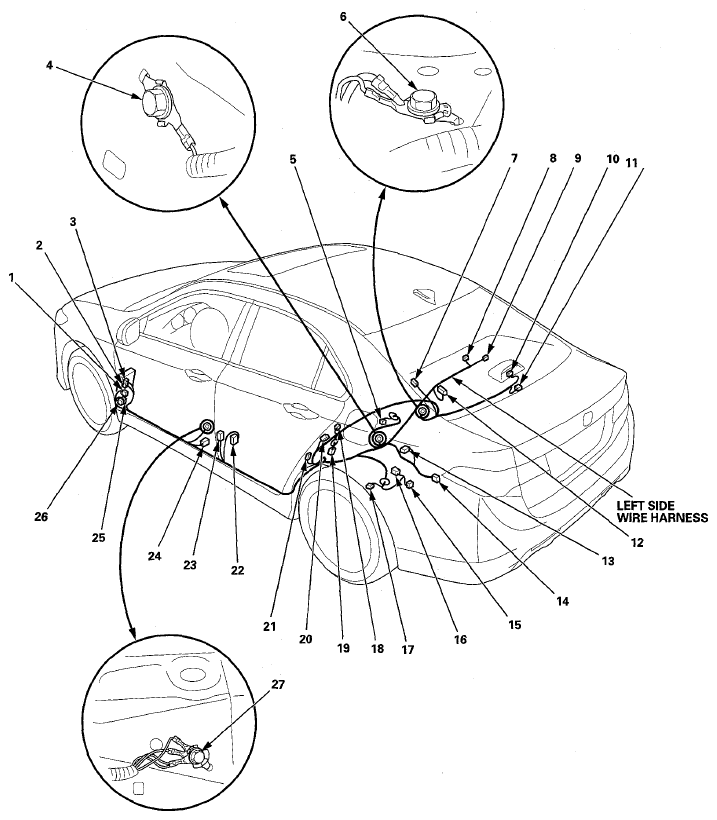

LEFT SIDE WIRE HARNESS (SEDAN) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Condenser A (for rear window defogger) | 18 | 2 | Left B-pillar | ||
| Condenser B (for rear window defogger) | 21 | 2 | Left B-pillar | ||
| Driver's door switch | 23 | 1 | Left B-pillar | ||
| Driver's under-dash fuse/relay box connector D (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 3 | 16 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 2 | 20 | Under left side of dash | ||
| EVAP canister vent shut valve | 15 | 2 | Under floor (Fuel tank) | ||
| Fuel fill door lock actuator | 13 | 2 | Left front of trunk | ||
| Fuel tank pressure (FTP) sensor | 16 | 3 | Under floor (Fuel tank) | ||
| Fuel tank unit | 5 | 4 | Under rear seat cushion | ||
| High mount brake light | 10 | 2 | Middle of rear shelf | ||
| Left rear door switch | 20 | 1 | Left C-pillar | ||
| Left rear speaker | 12 | 2 | Left side of rear shelf | ||
| Left rear TPMS initiator | 19 | 3 | Under floor | ||
| Left rear wheel speed sensor | 17 | 2 | Under floor | ||
| Rear window defogger connector A (+) | 7 | 1 | Middle of rear shelf | ||
| Subwoofer | 8 | 2 | Middle of rear shelf | ||
| Trunk light | 11 | 2 | Middle of rear shelf | ||
| C305 | 1 | 8 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C601 | 26 | 23 | Under left side of dash | Dashboard wire harness (view of driver's side) | |
| C602 | 25 | 16 | Under left side of dash | Dashboard wire harness (view of driver's side) | |
| C603 | 24 | 2 | Left side of floor | SRS floor wire harness (Sedan) | |
| C604 | 14 | 20 | Left rear of trunk | Rear wire harness (Sedan) | |
| C654 | 9 | 18 | Under rear shelf | Right side wire harness (Sedan) | |
| C771 | 22 | 18 | Left B-pillar | Left rear door wire harness | |
| G601 | 27 | Left side of floor | Body ground, via left side wire harness | ||
| G602 | 6 | Under rear seat cushion | Body ground, via left side wire harness | ||
| G603 | 4 | Left of rear shelf | Body ground, via left side wire harness |
