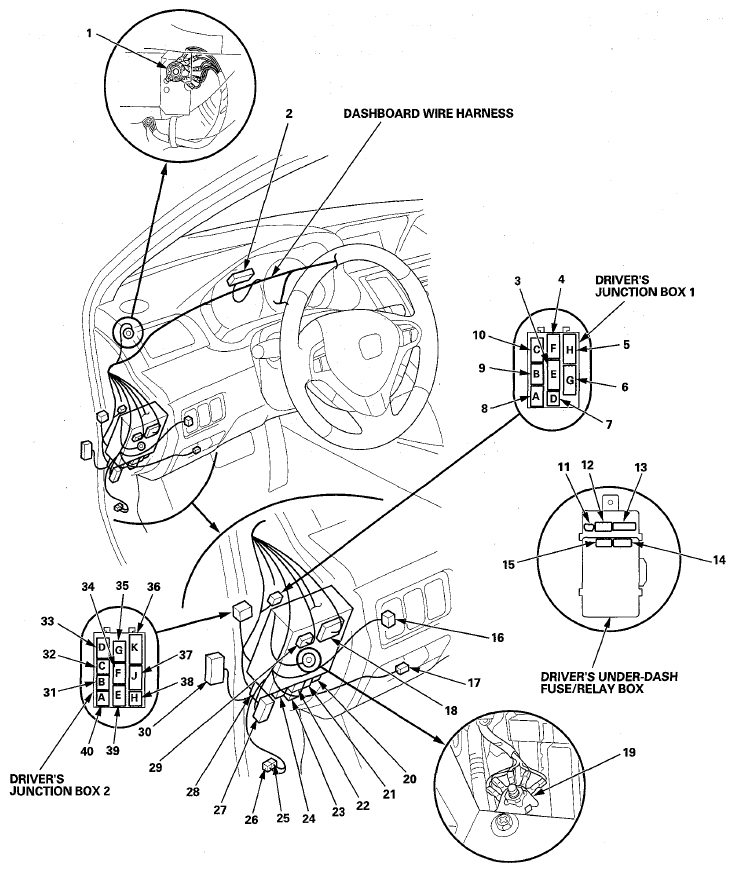

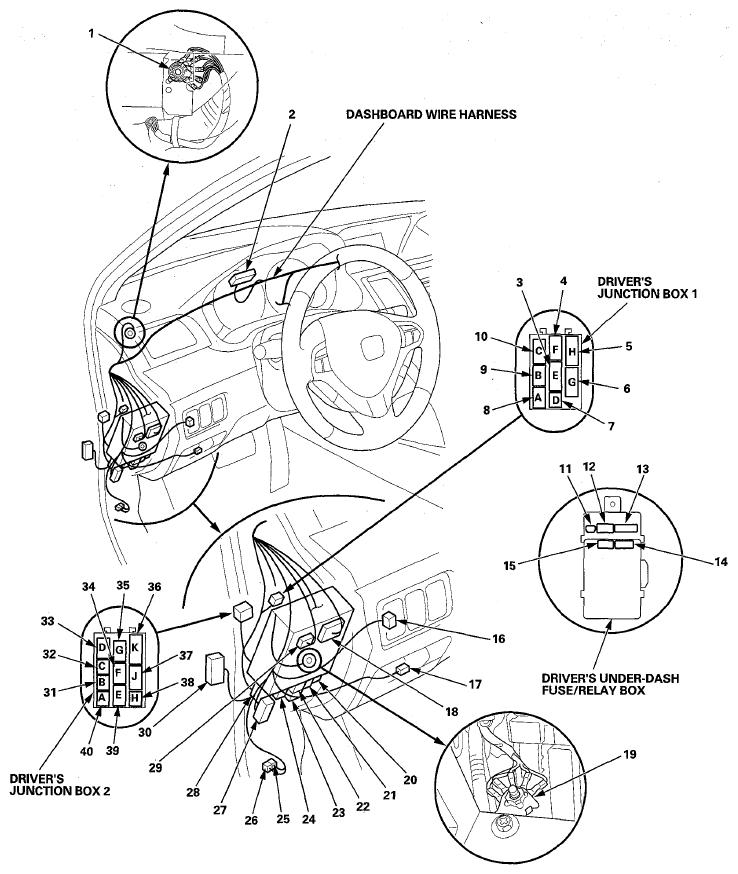

Dashboard Wire Harness (View of Driver's Side)
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Data link connector (DLC) | 27 | 16 | Under left side of dash | ||
| Driver's footwell light | 17 | 2 | Under left side of dash | ||
| Driver's junction box 1 connector A | 8 | 6 | Under left side of dash | ||
| Driver's junction box 1 connector B | 9 | 6 | Under left side of dash | ||
| Driver's junction box 1 connector C | 10 | 8 | Under left side of dash | ||
| Driver's junction box 1 connector D | 7 | 4 | Under left side of dash | ||
| Driver's junction box 1 connector E | 3 | 10 | Under left side of dash | ||
| Driver's junction box 1 connector F | 4 | 8 | Under left side of dash | ||
| Driver's junction box 1 connector G | 6 | 10 | Under left side of dash | ||
| Driver's junction box 1 connector H | 5 | 10 | Under left side of dash | ||
| Driver's junction box 2 connector A | 40 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector B | 31 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector C | 32 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector D | 33 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector E | 39 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector F | 34 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector G | 35 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector H | 38 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector J | 37 | 8 | Under left side of dash | ||
| Driver's junction box 2 connector K | 36 | 10 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector B (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 29 | 2 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector C (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 18 | 5 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector M (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 11 | 4 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector N (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 12 | 16 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector P (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 13 | 20 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector Q (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 15 | 20 | Under left side of dash | Driver's MICU | |
| Driver's under-dash fuse/relay box connector R (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 14 | 24 | Under left side of dash | Driver's MICU | |
| Gauge control module | 2 | 32 | Behind gauge | ||
| VSA OFF switch | 16 | 5 | Left side of dashboard |
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| C301 | 21 | 24 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C302 | 23 | 2 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C303 | 20 | 4 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C304 | 22 | 13 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C501 | 24 | 20 | Under left side of dash | Roof wire harness
|
|
| C502 | 28 | 8 | Under left side of dash | Roof wire harness
|
|
| C601 | 26 | 23 | Under left side of dash | Left side wire harness
|
|
| C602 | 25 | 16 | Under left side of dash | Left side wire harness
|
|
| C751 | 30 | 28 | Under left side of dash | Driver's door wire harness | |
| G501 | 1 | Under left side of dash | Body ground, via dashboard wire harness | ||
| G502 | 19 | Under left side of dash | Body ground, via dashboard wire harness |
