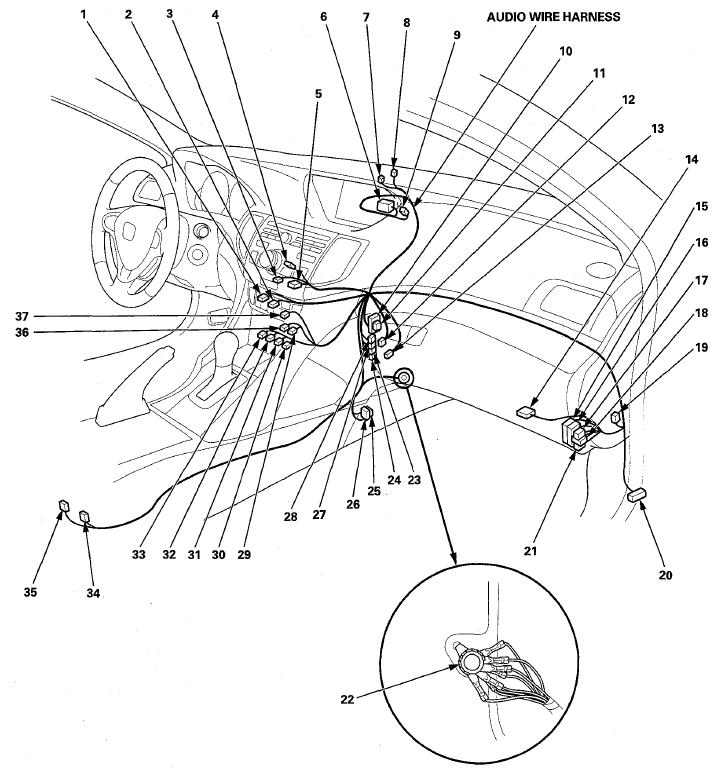

| Audio-navigation switch panel |
5 |
24 |
Middle of dash |
|
|
| Audio-navigation unit connector A |
30 |
24 |
Under middle of dash |
|
|
| Audio-navigation unit connector B |
31 |
24 |
Under middle of dash |
|
|
| Audio-navigation unit connector C |
33 |
14 |
Under middle of dash |
|
|
| Audio-navigation unit connector D |
36 |
20 |
Under middle of dash |
|
|
| Audio-navigation unit connector F |
32 |
12 |
Under middle of dash |
|
|
| Audio-navigation unit connector G |
37 |
8 |
Under middle of dash |
|
|
| Audio-navigation unit connector H |
29 |
28 |
Under middle of dash |
|
|
| Automatic lighting/sunlight sensor |
8 |
5 |
Middle of dash |
|
|
| Auxiliary jack |
34 |
5 |
Under center console |
|
|
| Center speaker |
7 |
2 |
Middle of dash |
|
|
| Climate control unit connector A |
2 |
28 |
Middle of dash |
|
|
| Climate control unit connector B |
1 |
12 |
Middle of dash |
|
|
| Console accessory power socket |
35 |
2 |
Under center console |
|
|
| Glove box light |
13 |
2 |
Glove box |
|
|
| HandsFreeLink control unit |
14 |
28 |
Under right of dash |
|
|
| Hazard warning switch |
3 |
5 |
Middle of dash |
|
|
| Interface dial |
4 |
5 |
Middle of dash |
|
|
| Navigation display unit |
6 |
28 |
Middle of dash |
|
|
| Navigation service check connector |
19 |
2 |
Under right side of dash |
|
|
| Passenger's airbag cutoff indicator |
9 |
4 |
Middle of dash |
|
|
| Passenger's under-dash fuse/relay box connector D |
20 |
28 |
Under right side of dash |
|
|
| Trunk lid opener main switch |
12 |
2 |
Under right of dash |
|
|
| C401 |
10 |
28 |
Middle of dash |
Dashboard wire harness (view of middle to passenger's side) |
|
| C402 |
11 |
16 |
Middle of dash |
Dashboard wire harness (view of middle to passenger's side) |
|
| C403 |
25 |
16 |
Middle of dash |
SRS floor wire harness
|
|
| C404 (junction connector) |
28 |
12 |
Under middle of dash |
|
|
| C405 (junction connector) |
27 |
12 |
Under middle of dash |
|
|
| C406 (junction connector) |
23 |
12 |
Under middle of dash |
|
|
| C407 (junction connector) |
21 |
12 |
Under right side of dash |
|
|
| C408 (junction connector) |
17 |
12 |
Under right side of dash |
|
|
| C409 |
26 |
20 |
Under middle of dash |
A/C wire harness |
|
| C410 |
16 |
28 |
Under right side of dash |
Right side wire harness
|
|
| C411 |
15 |
34 |
Under right side of dash |
Right side wire harness
|
|
| C412 |
18 |
12 |
Under right side of dash |
Right side wire harness
|
|
| C413 (junction connector) |
24 |
12 |
Under middle of dash |
|
|
| G401 |
22 |
|
Under middle of dash |
Body ground, via audio wire harness |
|
