Right Side Wire Harness (Sport Wagon)

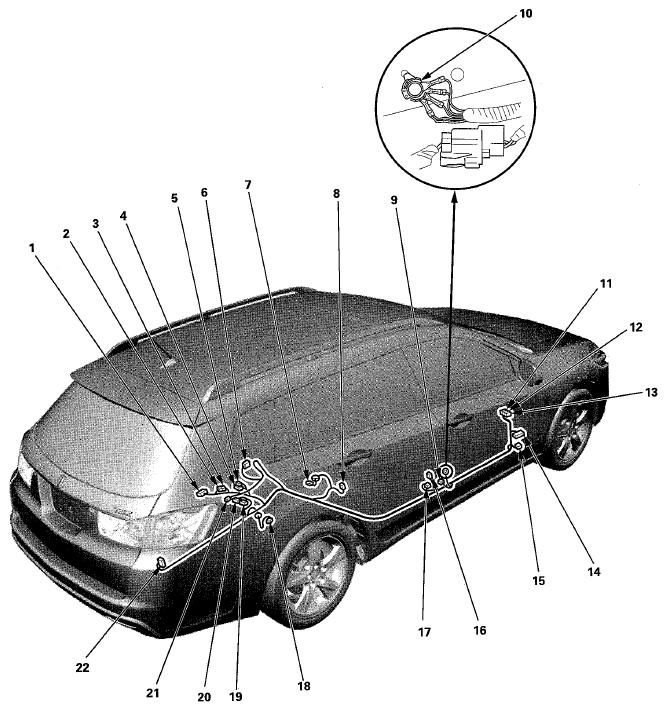

RIGHT SIDE WIRE HARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| AcuraLink connector (female connector) |
2 |
5 |
Under right side of rear seat |
|
|
| AcuraLink connector (male connector) |
3 |
5 |
Under right side of rear seat |
|
|
| AcuraLink control unit (XM receiver) connector A |
1 |
32 |
Left side of cargo area |
|
|
| Front passenger's door switch |
16 |
1 |
Right B-pillar |
|
|
| Passenger's under-dash fuse/relay box connector H (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
14 |
38 |
Under right side of dash |
|
|
| Right cargo area light |
6 |
2 |
Right side of cargo area |
|
|
| Right rear door switch |
8 |
1 |
Right C-pillar |
|
|
| Right rear TPMS initiator |
7 |
3 |
Under right side of floor |
|
|
| Right rear wheel speed sensor |
18 |
2 |
Under right side of floor |
|
|
| Stereo amplifier A |
19 |
18 |
Right side of cargo area |
|
|
| Stereo amplifier B |
20 |
28 |
Right side of cargo area |
|
|
| Stereo amplifier B |
20 |
24 |
Right side of cargo area |
|
|
| Subwoofer |
21 |
8 |
Right side of cargo area |
|
|
| XM receiver connector A |
1 |
14 |
Left side of cargo area |
|
|
| C410 |
11 |
28 |
Under right side of dash |
Audio wire harness
- With navigation
- Without navigation
|
|
| C411 |
12 |
34 |
Under right side of dash |
Audio wire harness (with navigation) |
|
| C412 |
13 |
12 |
Under right side of dash |
Audio wire harness
- With navigation
- Without navigation
|
|
| C651 |
15 |
23 |
Right kick panel |
Dashboard wire harness (view of middle to passenger's side) |
|
| C652 (junction connector) |
4 |
12 |
Center of cargo area |
|
|
| C653 |
9 |
4 |
Under front passenger's seat |
SRS floor wire harness (Sport Wagon) |
|
| C654 |
5 |
2 |
Center of cargo area |
Left side wire harness (Sport Wagon) |
|
| C655 |
22 |
20 |
Right side of cargo area |
Rear wire harness (Sport Wagon) |
|
| C781 |
17 |
18 |
Right B-pillar |
Right rear door wire harness |
|
| G651 |
10 |
|
Under front passenger's seat |
Body ground, via right side wire |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
