Left Side Wire Harness (Sport Wagon)

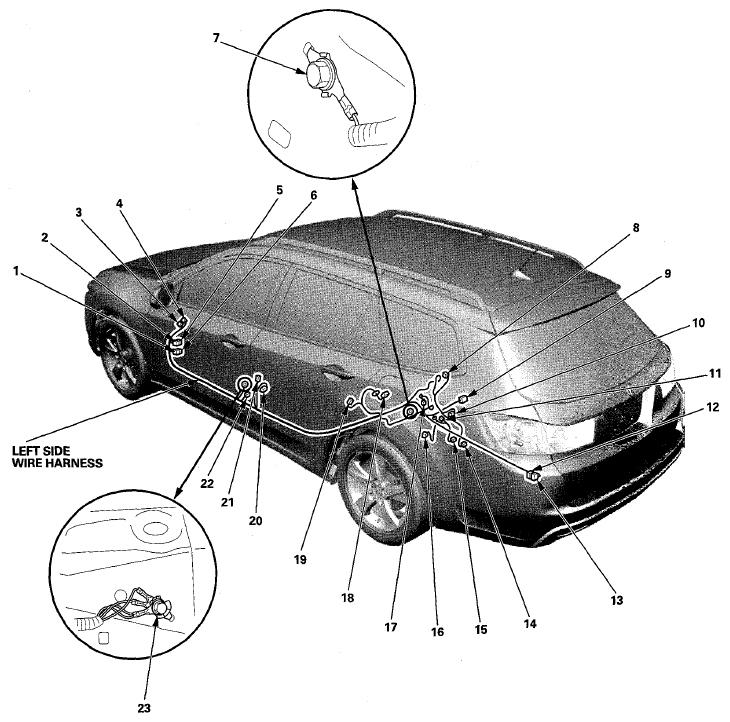

LEFT SIDE WIRE HARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cargo area accessory power socket | 14 | 2 | Left side of cargo area | ||
| Left cargo area light | 8 | 2 | Left side of cargo area | ||
| Driver's door switch | 21 | 1 | Left B-pillar | ||
| Driver's under-dash fuse/relay box connector D (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 4 | 16 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 3 | 20 | Under left side of dash | ||
| EVAP canister vent shut valve | 15 | 2 | Under floor (fuel tank) | ||
| Fuel fill door lock actuator | 10 | 2 | Left side of cargo area | ||
| Fuel tank pressure (FTP) sensor | 11 | 3 | Under floor (fuel tank) | ||
| Fuel tank unit | 17 | 4 | Under rear seat cushion | ||
| Left rear door switch | 19 | 1 | Left C-pillar | ||
| Left rear TPMS initiator | 18 | 3 | Under floor | ||
| Left rear wheel speed sensor | 16 | 2 | Under floor | ||
| C305 | 2 | 8 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C306 | 5 | 2 | Under left side of dash | Left engine compartment wire harness (dashboard branch) | |
| C601 | 1 | 23 | Under left side of dash | Dashboard wire harness (view of driver's side) | |
| C602 | 6 | 16 | Under left side of dash | Dashboard wire harness (view of driver's side) | |
| C603 | 22 | 2 | Under driver's seat | SRS floor wire harness (Sport Wagon) | |
| C604 | 13 | 20 | Left side of tailgate | Rear wire harness (Sport Wagon) | |
| C605 | 12 | 8 | Left side of tailgate | Rear wire harness (Sport Wagon) | |
| C654 | 9 | 2 | Left side of cargo area | Right side wire harness (Sport Wagon) | |
| C771 | 20 | 18 | Left B-pillar | Left rear door wire harness | |
| G601 | 23 | Left side of floor | Body ground, via left side wire harness | ||
| G603 | 7 | Under left rear seat cushion | Body ground, via left side wire harness |
