Right Engine Compartment Wire Harness (Dashboard Branch)

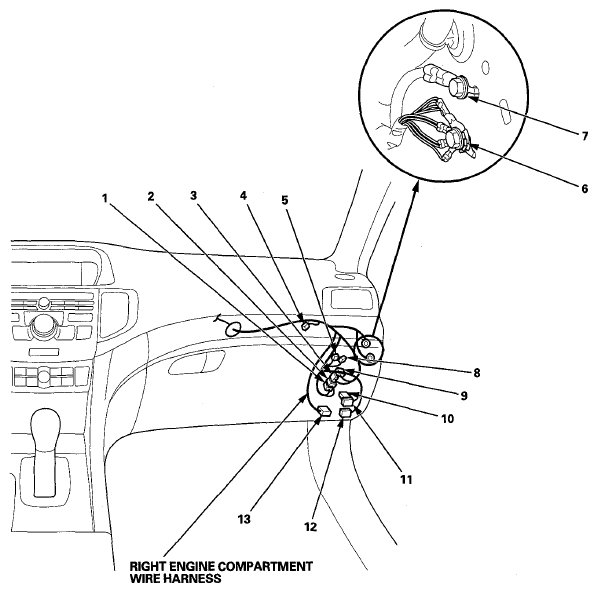

RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| EPS control unit connector A | 9 | 2 | Under right side of dash | ||
| EPS control unit connector B | 2 | 2 | Under right side of dash | ||
| EPS control unit connector C | 1 | 2 | Under right side of dash | ||
| EPS control unit connector D | 3 | 28 | Under right side of dash | ||
| Passenger's under-dash fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 13 | 18 | Under right side of dash | ||
| C202 | 5 | 18 | Under right side of dash | Left engine compartment subharness | |
| C203 | 8 | 2 | Under right side of dash | Left engine compartment subharness | |
| C204 | 10 | 3 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) | |
| C205 | 12 | 16 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) | |
| C206 | 11 | 4 | Under right side of dash | Dashboard wire harness (view of middle to passenger's side) | |
| C207 (junction connector) | 4 | 12 | Under right side of dash | ||
| G201 | 6 | Under right side of dash | Body ground, via right engine compartment wire harness | ||
| G203 | 7 | Under right side of dash | Body ground, via right engine compartment wire harness |
