Disassembly [02/2024 - ]: Procedure

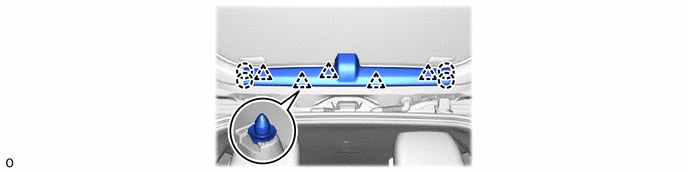

  1. REMOVE BACK DOOR CENTER GARNISH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1222437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

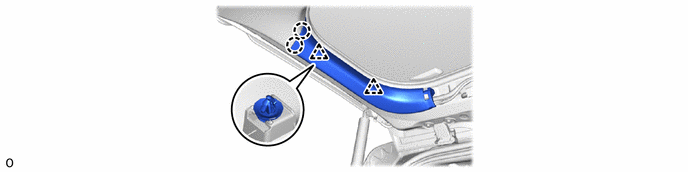

  2. REMOVE BACK DOOR SIDE GARNISH LH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1226481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

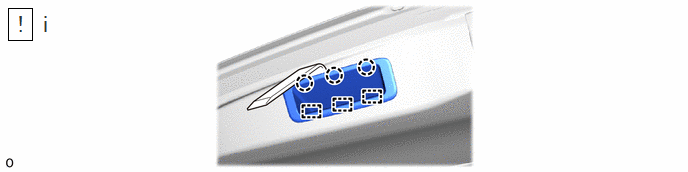

  4. REMOVE BACK DOOR FINISH COVER
    1. GTY1226903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, detach the claw and guide to remove the back door finish cover.
      2. w/o Power Back Door:
        1. Use the same procedure for the other side.

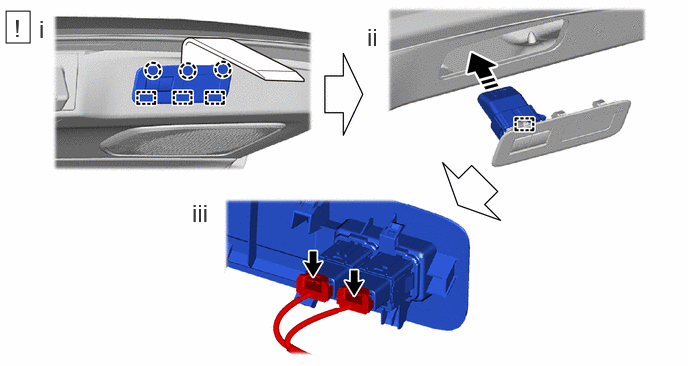

  5. REMOVE BACK DOOR INSIDE HANDLE (w/ Power Back Door)
    1. GTY1223829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover, detach the claw and guide to remove the back door inside handle.
      2. Detach the guide and remove the door control switch cover.
      3. Disconnect the 2 connectors.

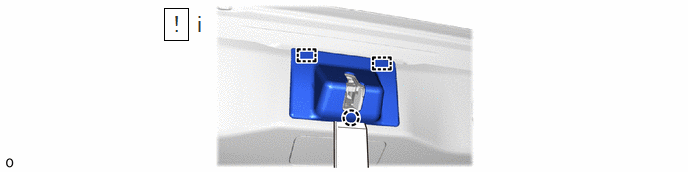

  6. REMOVE BACK DOOR LOCK COVER
    1. GTY1224280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, detach the claw and guide to remove the back door lock cover.

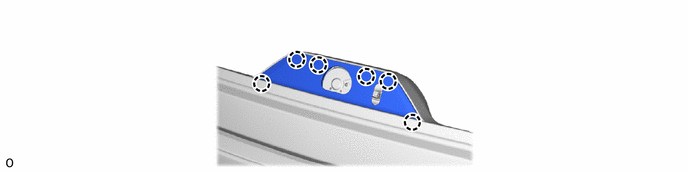

  7. REMOVE BACK DOOR LOCK COVER
    1. GTY1226482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

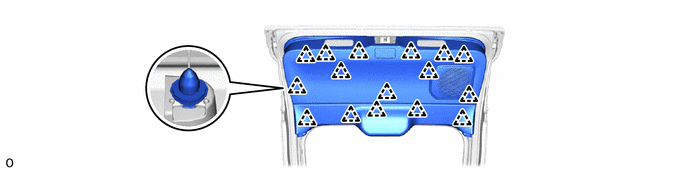

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1222444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BACK DOOR SERVICE HOLE COVER RH
    1. GTY1222443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 SPEAKER ASSEMBLY WITH BRACKET (for 14 Speakers)
    Refer to PROCEDURE - Step 10
  11. REMOVE SPEAKER ASSEMBLY WITH BRACKET (for 14 Speakers)
    Refer to PROCEDURE - Step 11
  12. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    Refer to PROCEDURE - Step 9

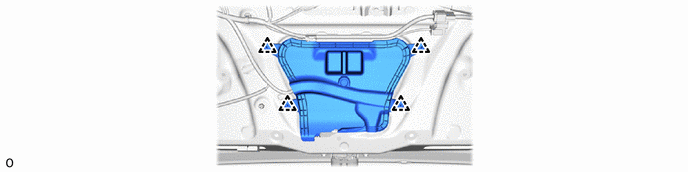

  13. REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER (w/ Cover)
    1. GTY1222445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 10

  15. REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    See step  9

  16. REMOVE REAR INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  17. REMOVE BACK DOOR GARNISH (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 3

  18. REMOVE REAR WIPER SHAFT COVER

    Refer to PROCEDURE - Step 9

  19. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 10

  20. REMOVE REAR WIPER LINK CAP

    Refer to PROCEDURE - Step 11

  21. REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT
    Refer to PROCEDURE - Step 12
  22. REMOVE REAR WIPER LINK ASSEMBLY
    Refer to PROCEDURE - Step 13
  23. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 14

  24. REMOVE BACK WINDOW LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  25. REMOVE POWER BACK DOOR UNIT ASSEMBLY LH (w/ Power Back Door)
    See step  9
  26. REMOVE POWER BACK DOOR UNIT ASSEMBLY RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.

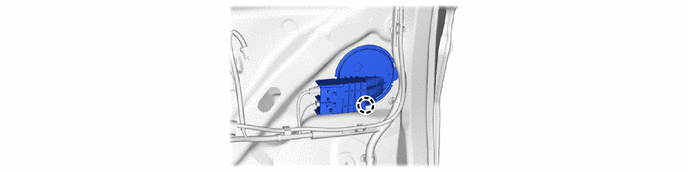

  27. REMOVE BACK DOOR NO. 4 SERVICE HOLE COVER (w/ Cover)
    1. GTY1226483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

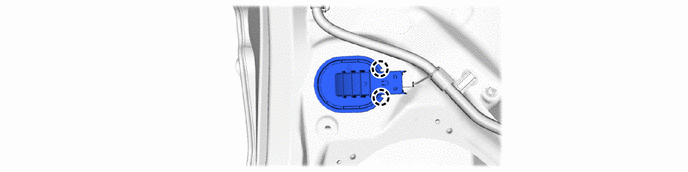

  28. REMOVE BACK DOOR NO. 3 SERVICE HOLE COVER (w/ Cover)
    1. GTY1225747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  3

  30. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
  31. REMOVE BACK DOOR STAY ASSEMBLY LH (w/o Power Back Door)
    See step  1
  32. REMOVE BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)
    1. Use the same procedure as for the LH side.
  33. REMOVE BACK DOOR LOWER DAMPER STAY BRACKET LH

    See step  13

  34. REMOVE BACK DOOR LOWER DAMPER STAY BRACKET RH
    1. Use the same procedure as for the LH side.
  35. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH
    1. w/o Power Back Door:

      See step  2

    2. w/ Power Back Door:

      See step  12

  36. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH
    1. Use the same procedure as for the LH side.
  37. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  38. REMOVE BACK WINDOW STAY ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  39. REMOVE BACK WINDOW STAY ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  40. REMOVE BACK WINDOW STAY BOLT

    Refer to PROCEDURE - Step 2

  41. REMOVE BACK DOOR GLASS
    Refer to PROCEDURE - Step 10

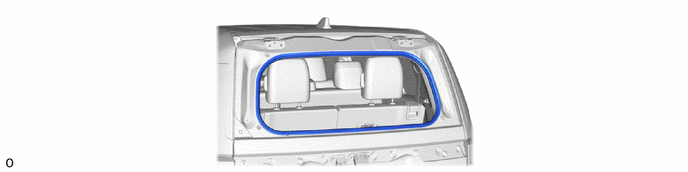

  42. REMOVE BACK DOOR NO. 2 WEATHERSTRIP
    1. GTY1222446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE BACK DOOR PANEL CUSHION
    1. GTY1222448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure for the others.

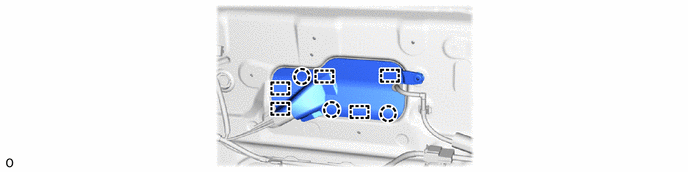

  44. REMOVE BACK DOOR NO. 1 SERVICE HOLE COVER (w/ Cover)
    1. GTY1222447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE BACK DOOR OUTSIDE UPPER GARNISH SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 10
  46. REMOVE BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 11
  47. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  48. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
    Refer to PROCEDURE - Step 2
  49. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

  50. REMOVE LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH

    See step  2

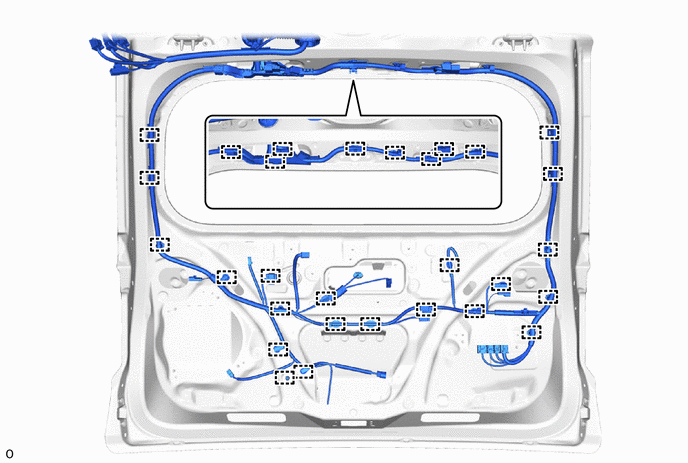

  51. REMOVE NO. 1 BACK DOOR WIRE

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1222450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

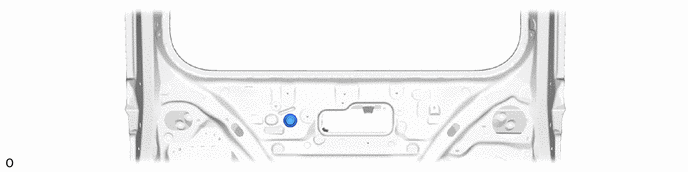

  52. REMOVE HOLE PLUG
    1. GTY1222449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

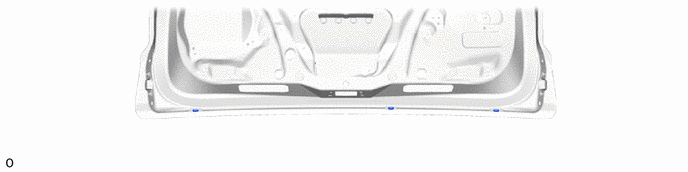

  53. REMOVE DOOR DUST PROOF SEAL
    1. GTY1226485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE BACK DOOR LOWER STOPPER
    1. GTY1222452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure for the other side.
