Removal [02/2024 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
    Refer to PROCEDURE - Step 3

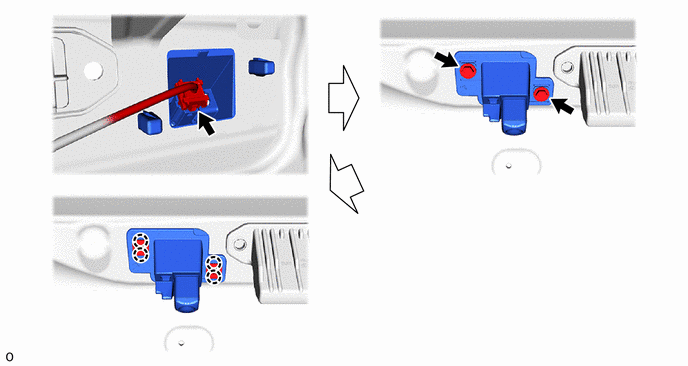

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY
    1. GTY1221864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
