Removal [02/2024 - ]: Procedure
- REMOVE BACK DOOR CENTER GARNISH
Refer to PROCEDURE - Step 1
- REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 2
- REMOVE BACK DOOR SIDE GARNISH RH
- Use the same procedure as for the LH side.
- REMOVE BACK DOOR FINISH COVER
Refer to PROCEDURE - Step 4 - REMOVE BACK DOOR INSIDE HANDLE (w/ Power Back Door)
Refer to PROCEDURE - Step 5 - REMOVE BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 6 - REMOVE BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 7
- REMOVE BACK DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER (w/ Cover)
Refer to PROCEDURE - Step 13

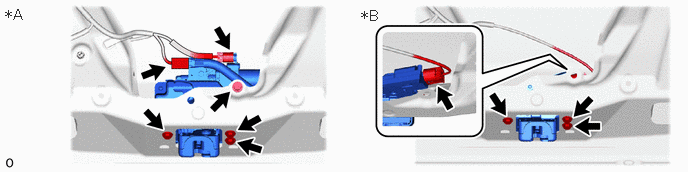

- REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
