Removal [02/2024 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  4. REMOVE BACK DOOR FINISH COVER
    Refer to PROCEDURE - Step 4
  5. REMOVE BACK DOOR INSIDE HANDLE (w/ Power Back Door)
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 7

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone of the rear No. 3 speaker assembly.

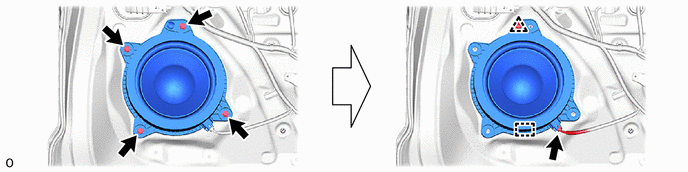

    1. GTY1221538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 SPEAKER WITH BRACKET ASSEMBLY (for 14 Speakers)
    NOTE:

    Do not touch the cone of the No. 2 speaker with bracket assembly.

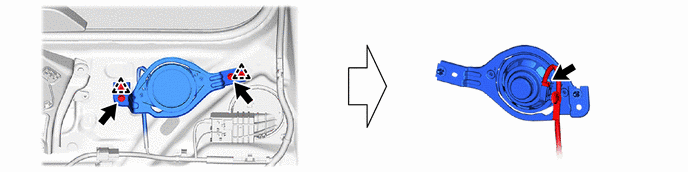

    1. GTY1221540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SPEAKER WITH BRACKET ASSEMBLY (for 14 Speakers)
    1. Use the same procedure described for the No. 2 speaker with bracket assembly.
