Removal [02/2024 - ]: Procedure

  1. REMOVE REAR SPOILER

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE REAR INNER MIRROR CAMERA ASSEMBLY WITH GARNISH (w/ Digital Inner Mirror)

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE REAR WIPER SHAFT COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. REMOVE REAR WIPER LINK CAP

    Refer to PROCEDURE - Step 11

  6. REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT

    Refer to PROCEDURE - Step 12

  7. REMOVE REAR WIPER LINK ASSEMBLY
    Refer to PROCEDURE - Step 13
  8. REMOVE BACK WINDOW STAY ASSEMBLY LH
    See step  1
  9. REMOVE BACK WINDOW STAY ASSEMBLY RH
    1. Use the same procedure described for LH side.
  10. REMOVE BACK DOOR GLASS

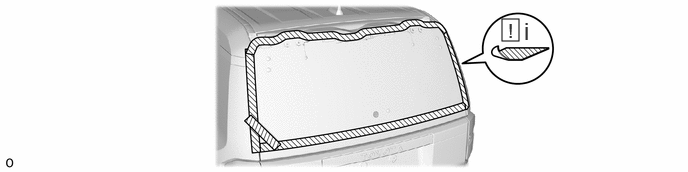

    1. GTY1223707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the outer surface of the vehicle body to prevent scratches.

        HINT:

        When separating the back door glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

    2. When reusing the back window glass:
      GTY1221256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmarks - -
      1. Place matchmarks over the glass and vehicle body at the locations shown in the illustration.
    3. GTY1225612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 nuts and back door glass.
        NOTE:

        Be careful not to drop the back door glass.

  11. REMOVE NO. 3 BACK DOOR WIRE HARNESS GUIDE
    1. When reusing the back window glass:
      GTY1226462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Detach the clamp and using a scraper, remove the back door wire harness RH.
        NOTE:
        • Do not damage the back window glass.
        • Always replace the installed back door wire harness RH with a new back door wire harness RH.
  12. REMOVE BACK DOOR SEAL
    1. When reusing the back window glass:

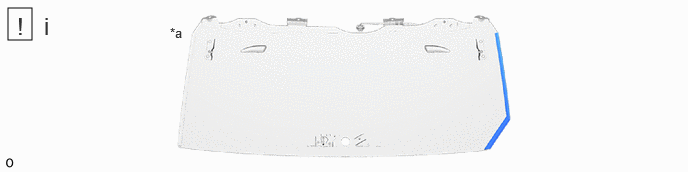

      GTY1221801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back door seal LH.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door seal LH with a new back door seal LH.
  13. REMOVE BACK DOOR SEAL
    1. When reusing the back window glass:

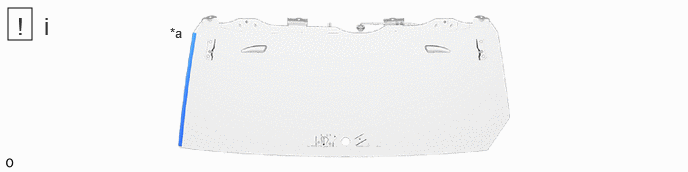

      GTY1226396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back door seal.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door seal with a new back door seal.
  14. REMOVE BACK WINDOW LOCK STRIKER ASSEMBLY
    1. When reusing the back window glass:
      GTY1223744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  15. REMOVE BACK DOOR GLASS UPPER GUIDE BRACKET LH
    1. When reusing the back window glass:

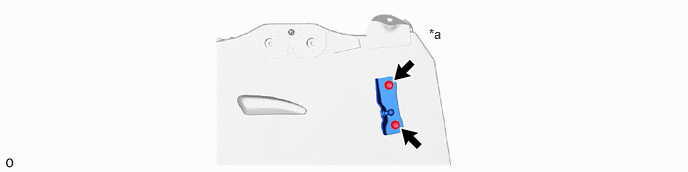

      GTY1223189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  16. REMOVE BACK DOOR GLASS UPPER GUIDE BRACKET RH
    1. Use the same procedure described for LH side.
  17. REMOVE BACK DOOR WINDOW HINGE RETAINER

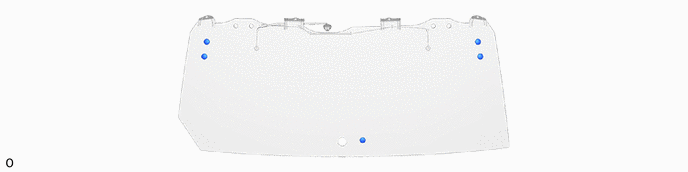

    1. GTY1221524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BACK DOOR HINGE PLATE LH
    1. When reusing the back window glass:

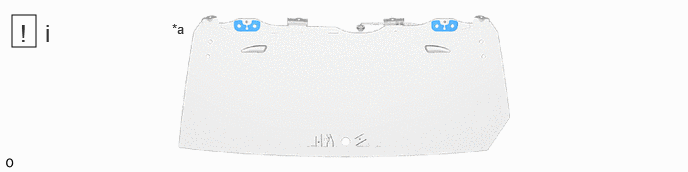

      GTY1223446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back door hinge plate.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back door hinge plate with a new back door hinge plate.
  19. REMOVE BACK DOOR HINGE PLATE RH
    1. Use the same procedure described for LH side.
  20. REMOVE NO. 1 BACK WINDOW GLASS SPACER
    1. When reusing the back window glass:

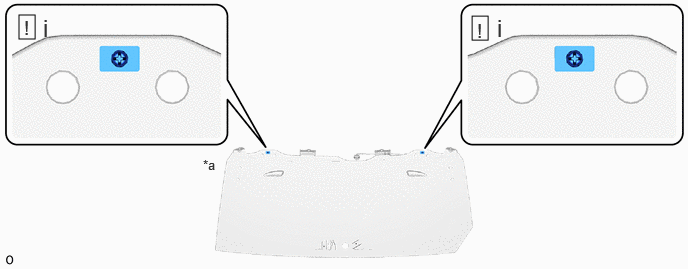

      GTY1225781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back window glass spacer.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back window glass spacer with a new back window glass spacer.
  21. REMOVE BACK WINDOW OUTSIDE MOULDING LH
    1. When reusing the back window glass:
      GTY1224550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the back window outside moulding LH.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed back window outside moulding LH with a new back window outside moulding LH.
  22. REMOVE BACK WINDOW OUTSIDE MOULDING RH
    1. Use the same procedure described for the other side.
  23. REMOVE NO. 1 REAR WINDOW WIRE
    1. When reusing the back window glass:

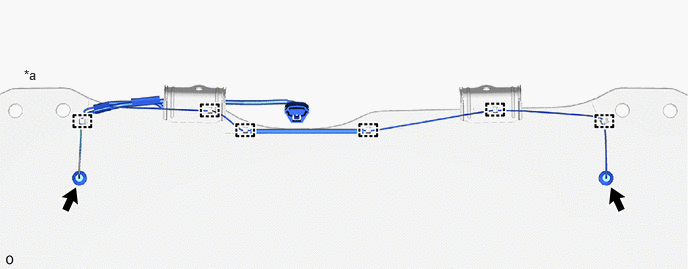

      GTY1220528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
  24. REMOVE NO. 2 BACK DOOR WIRE HARNESS GUIDE

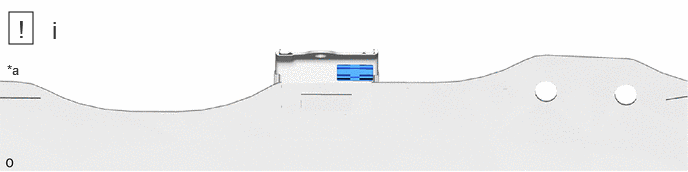

    1. GTY1212881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the No. 2 back door wire harness guide.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed No. 2 back door wire harness guide with a new No. 2 back door wire harness guide.
  25. REMOVE NO. 1 BACK DOOR WIRE HARNESS GUIDE

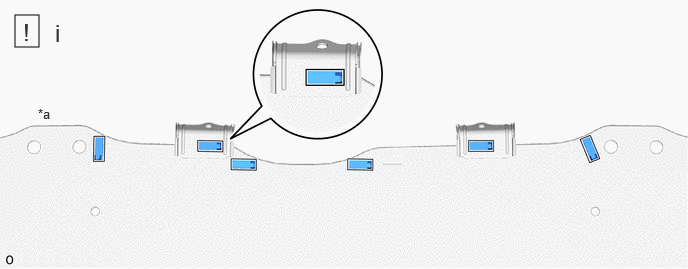

    1. GTY1218146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Backside - -
      1. Using a scraper, remove the No. 1 back door wire harness guide.
        NOTE:
        • Do not damage the back door glass.
        • Always replace the installed No. 1 back door wire harness guide with a new No. 1 back door wire harness guide.
