Removal [02/2024 - ]: Procedure

REMOVE BACK DOOR CENTER GARNISH
Refer to PROCEDURE - Step 1
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 2
REMOVE BACK DOOR SIDE GARNISH RH
1. Use the same procedure described for the LH side.
REMOVE BACK DOOR FINISH COVER

Refer to PROCEDURE - Step 4
REMOVE BACK DOOR INSIDE HANDLE (w/ Power Back Door)

Refer to PROCEDURE - Step 5
REMOVE BACK DOOR LOCK COVER

Refer to PROCEDURE - Step 6
REMOVE BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 7
REMOVE BACK DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 8

REMOVE REAR WIPER SHAFT COVER

GTY1217672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fastener

-

-

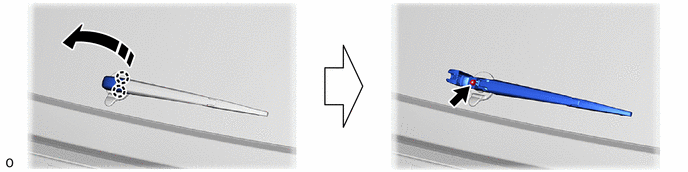

REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

GTY1225603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

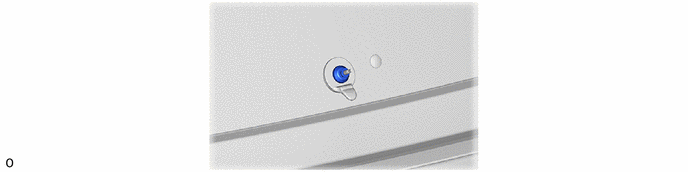

REMOVE REAR WIPER LINK CAP

GTY1224214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR WIPER LINK PIVOT WITH WASHER PACKING NUT

GTY1221270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

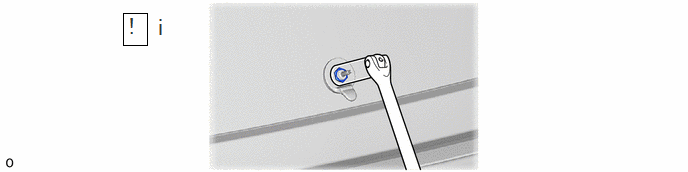

Using a 23 mm deep socket wrench, remove the nut and rear wiper link pivot with washer packing nut.

REMOVE REAR WIPER LINK ASSEMBLY

HINT:
When removing the rear wiper link assembly, open the back door glass.

When reusing the rear wiper link assembly:

GTY1218228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Matchmarks

-

-

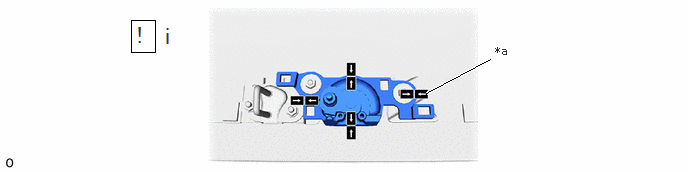

Place matchmarks over the rear wiper link assembly and around the rear wiper link assembly at the locations indicated in the illustration.

GTY1217611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

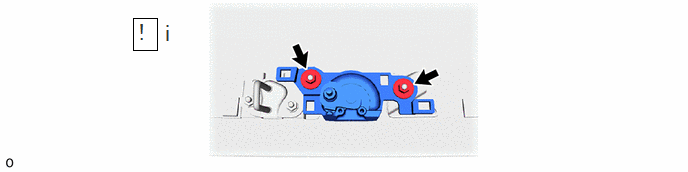

Remove the 2 nuts and rear wiper link assembly.
NOTE:
Be careful not to scratch the back door glass.

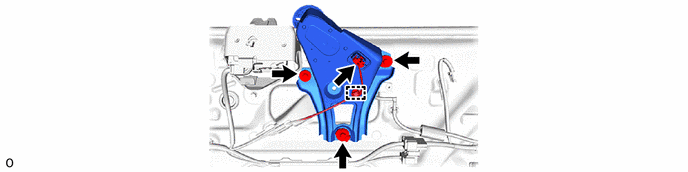

REMOVE REAR WIPER MOTOR ASSEMBLY

GTY1224210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
