Removal [09/2021 - 11/2022]: Procedure

  1. INSTALL ENGINE ASSEMBLY TO ENGINE STAND

    Refer to REMOVAL [09/2021 - 11/2022]

  2. REMOVE ENGINE HANGER

    Refer to PROCEDURE - Step 62

  3. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

    Refer to PROCEDURE - Step 5

  7. REMOVE WATER HOSE CLAMP BRACKET

    Refer to PROCEDURE - Step 6

  8. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 6

  9. REMOVE EXHAUST MANIFOLD
  10. DISCONNECT NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 4

  11. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  12. DISCONNECT NO. 5 WATER BY-PASS HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  13. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 7

  14. DISCONNECT NO. 3 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5

  15. DISCONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6

  16. REMOVE WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 7

  17. REMOVE EGR COOLER ASSEMBLY

    Refer to PROCEDURE - Step 8

  18. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  19. REMOVE EGR VALVE ADAPTER GASKET
  20. REMOVE EGR INLET GASKET
  21. DISCONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5

  22. DISCONNECT NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6

  23. REMOVE EGR VALVE ASSEMBLY

    Refer to PROCEDURE - Step 7

  24. REMOVE NO. 3 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 25

  25. REMOVE INTAKE MANIFOLD STAY

    Refer to PROCEDURE - Step 11

  26. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE

    Refer to PROCEDURE - Step 12

  27. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 13

  28. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 14

  29. REMOVE FUEL PIPE CLAMP

    Refer to PROCEDURE - Step 2

  30. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  31. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  32. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 8

  33. REMOVE FUEL PUMP FLANGE

    Refer to PROCEDURE - Step 9

  34. REMOVE FUEL PUMP SPACER GASKET

    Refer to PROCEDURE - Step 10

  35. REMOVE FUEL PUMP LIFTER ASSEMBLY

    Refer to PROCEDURE - Step 11

  36. REMOVE NO. 1 WATER BY-PASS HOSE ASSEMBLY

    Refer to PROCEDURE - Step 35

  37. REMOVE SENSOR WIRE

    Refer to PROCEDURE - Step 36

  38. REMOVE NO. 6 ENGINE WIRE

    Refer to PROCEDURE - Step 37

  39. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  40. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 5

  41. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 6

  42. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 7

  43. REMOVE PORT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 8

  44. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 3

  45. REMOVE DIRECT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  46. REMOVE NOZZLE HOLDER CLAMP

    Refer to PROCEDURE - Step 5

  47. REMOVE NO. 3 FUEL INJECTOR BACK-UP RING
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  48. REMOVE NO. 1 FUEL INJECTOR BACK-UP RING

    Refer to PROCEDURE - Step 7

  49. REMOVE C-RING

    Refer to PROCEDURE - Step 8

  50. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 9

  51. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 10

  52. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 1

  53. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 52

  54. REMOVE VACUUM SURGE TANK

    Refer to PROCEDURE - Step 57

  55. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

    Refer to PROCEDURE - Step 2

  56. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to PROCEDURE - Step 1

  57. REMOVE O-RING
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  58. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

    Refer to PROCEDURE - Step 16

  59. REMOVE CAM TIMING CONTROL MOTOR O-RING

    Refer to PROCEDURE - Step 17

  60. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 8

  61. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 14

  62. REMOVE WATER OUTLET

    Refer to PROCEDURE - Step 15

  63. REMOVE WATER OUTLET GASKET

    Refer to PROCEDURE - Step 16

  64. REMOVE WATER BY-PASS OUTLET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  65. REMOVE WATER OUTLET PIPE GASKET

    Refer to PROCEDURE - Step 18

  66. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

    Refer to PROCEDURE - Step 1

  67. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

    Refer to PROCEDURE - Step 2

  68. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  69. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 22

  70. REMOVE ENGINE MOUNTING BRACKET RH

    Refer to PROCEDURE - Step 23

  71. REMOVE NO. 2 TIMING CHAIN COVER ASSEMBLY

    Refer to PROCEDURE - Step 25

  72. REMOVE TIMING CHAIN COVER OIL SEAL

    Refer to PROCEDURE - Step 26

  73. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

    Refer to PROCEDURE - Step 27

  74. REMOVE CHAIN TENSIONER PLATE
  75. REMOVE OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  76. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

    Refer to PROCEDURE - Step 30

  77. REMOVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  78. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 33

  79. REMOVE CHAIN TENSIONER SLIPPER

    Refer to PROCEDURE - Step 34

  80. REMOVE NO. 1 CHAIN VIBRATION DAMPER

    Refer to PROCEDURE - Step 35

  81. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

    Refer to PROCEDURE - Step 36

  82. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to PROCEDURE - Step 37

  83. REMOVE FUEL PUMP LIFTER GUIDE

    Refer to PROCEDURE - Step 40

  84. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  85. REMOVE CAMSHAFT BEARING CAP

    Refer to PROCEDURE - Step 42

  86. REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 43

  87. REMOVE EXHAUST CAMSHAFT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 44

  88. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 45

  89. REMOVE VALVE LASH ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 46

  90. REMOVE CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 50

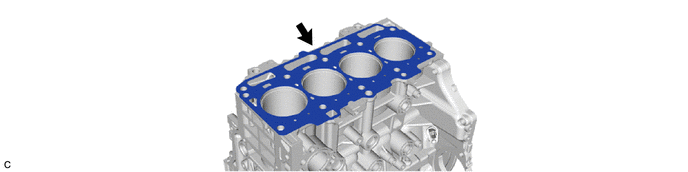

  91. REMOVE CYLINDER HEAD GASKET
    1. GTY1029328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  92. INSPECT CYLINDER HEAD SET BOLT

    Refer to PROCEDURE - Step 16

  93. INSPECT CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
