Removal [09/2021 - 11/2022]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 1

  3. REMOVE AUXILIARY BATTERY

    Refer to REMOVAL [09/2021 - 11/2022]

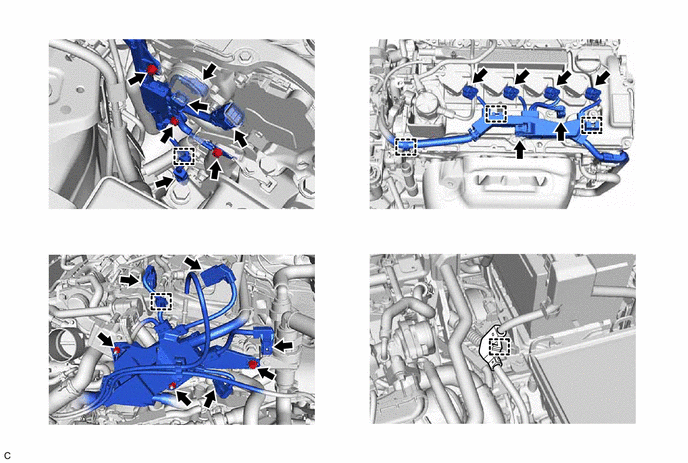

  4. DISCONNECT ENGINE WIRE
    1. GTY1029137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

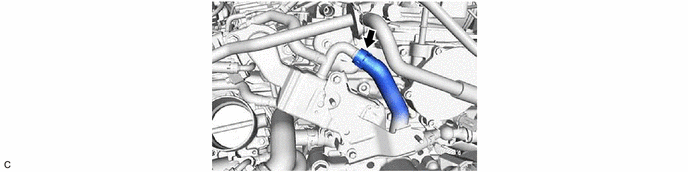

  5. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. GTY1029240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

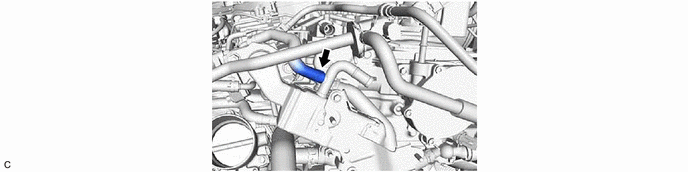

  6. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1029090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

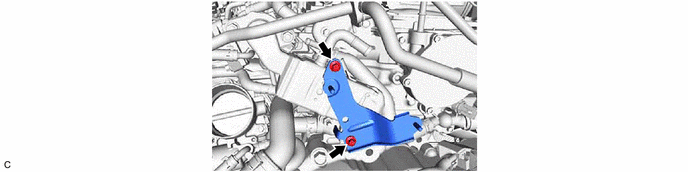

  7. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1029092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

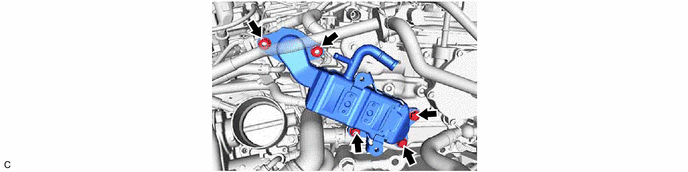

  8. REMOVE EGR COOLER ASSEMBLY
    1. GTY1029091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      [The illustrations are representative examples, and details may differ.]

  9. REMOVE EGR VALVE GASKET
    1. GTY1029230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 EGR COOLER GASKET
    1. GTY1030596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
