Removal [09/2021 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 1

  2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

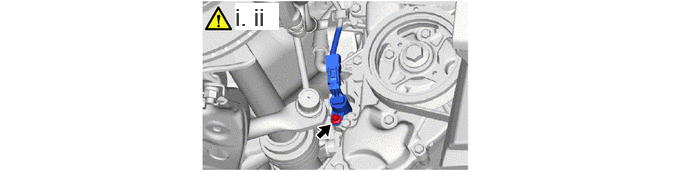

    1. GTY1030662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the oil pressure control valve assembly connector.
      2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
