Removal [09/2021 - 11/2023]: Procedure

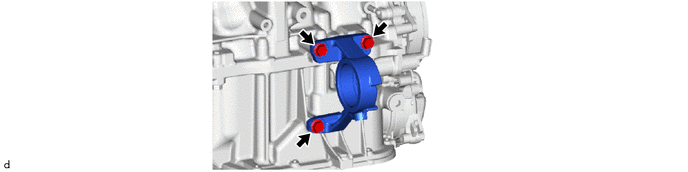

  1. REMOVE DRIVE SHAFT BEARING BRACKET (for AWD)
    1. GTY1029390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not apply or add any oil or grease to the belt tensioner to prevent abnormal noises from the belt tensioner pulley, belt squealing, etc.
    • Do not allow oil or grease to adhere to the moving parts of the belt tensioner, as this may cause malfunctions.
    GTY743260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

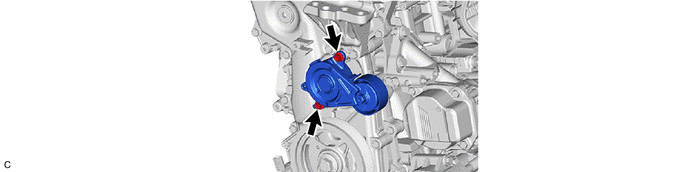

    1. GTY1030573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 RADIATOR HOSE

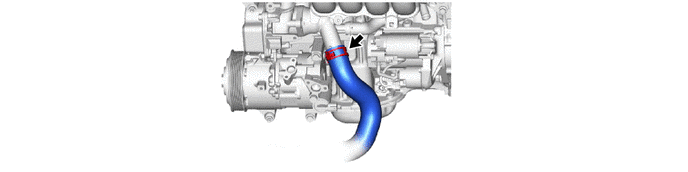

    1. GTY1030501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

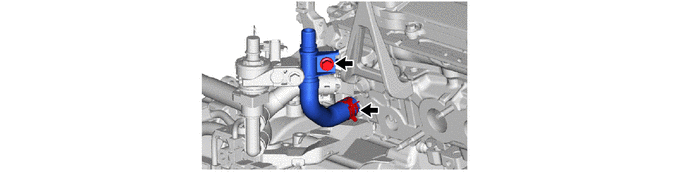

    1. GTY1029512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

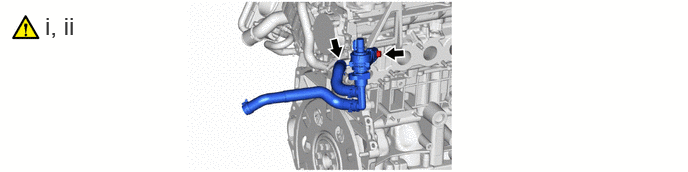

    1. GTY1029922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt to disconnect the flow shutting valve (water by-pass hose assembly) from the water hose clamp bracket.
      2. Slide the clip and remove the flow shutting valve (water by-pass hose assembly) from the water by-pass outlet sub-assembly.

        HINT:

        Use a container to catch any engine coolant which flows out of the flow shutting valve (water by-pass hose assembly) and water by-pass outlet sub-assembly.

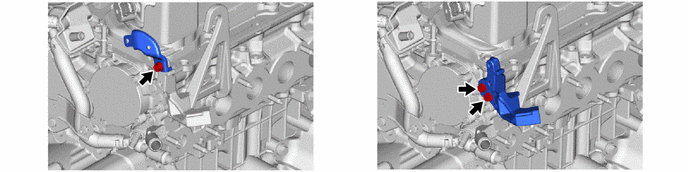

  6. REMOVE WATER HOSE CLAMP BRACKET
    1. GTY1029514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 4

  10. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to REMOVAL [09/2021 - 11/2023]
  11. DISCONNECT NO. 5 WATER BY-PASS HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  12. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 7

  13. SEPARATE NO. 3 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - 11/2023]

  14. SEPARATE NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - 11/2023]

  15. REMOVE WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - 11/2023]

  16. REMOVE EGR COOLER ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - 11/2023]

  17. REMOVE EGR VALVE GASKET

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 11/2023]

  18. REMOVE NO. 1 EGR COOLER GASKET

    Refer to PROCEDURE - Step 10 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 10 [11/2022 - 11/2023]

  19. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 2 [11/2022 - 11/2023]
  20. REMOVE EGR VALVE ADAPTER GASKET

    Refer to PROCEDURE - Step 3 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - 11/2023]

  21. REMOVE EGR INLET GASKET

    Refer to PROCEDURE - Step 4 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 4 [11/2022 - 11/2023]

  22. REMOVE NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - 11/2023]

  23. REMOVE NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - 11/2023]

  24. REMOVE EGR VALVE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - 11/2023]
  25. REMOVE NO. 3 WATER BY-PASS PIPE

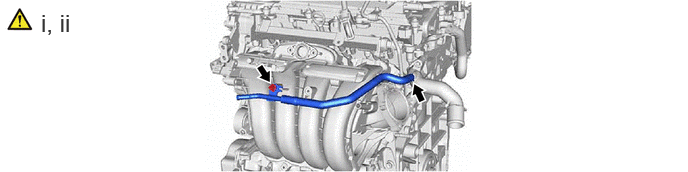

    1. GTY1029480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
      2. Slide the clip and remove the No. 3 water by-pass pipe from the water outlet.
  26. REMOVE INTAKE MANIFOLD STAY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 11
  27. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE

    Refer to PROCEDURE - Step 12

  28. REMOVE INTAKE MANIFOLD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 13
  29. DISCONNECT FUEL TUBE SUB-ASSEMBLY

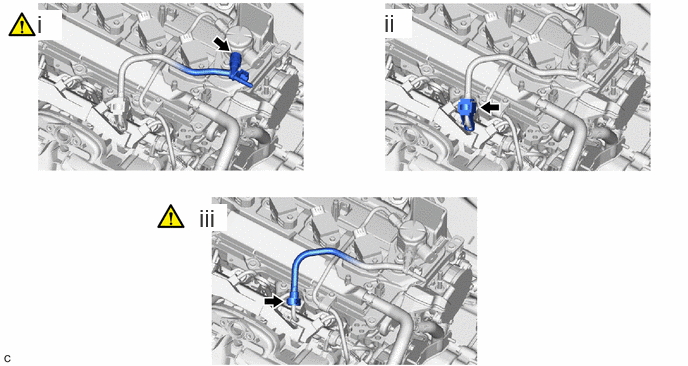

    1. GTY1030269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tube sub-assembly from the fuel pump assembly.

        Refer to PRECAUTION [09/2021 - 11/2022] , or refer to PRECAUTION [11/2022 - 11/2023]

      2. Remove the fuel pipe clamp from the fuel tube connector.
      3. Disconnect the fuel tube sub-assembly from the fuel delivery pipe.

        Refer to PRECAUTION [09/2021 - 11/2022] , or refer to PRECAUTION [11/2022 - 11/2023]

  30. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - ]
  31. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - ]
  32. REMOVE FUEL PUMP FLANGE

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - ]

  33. REMOVE FUEL PUMP SPACER GASKET

    Refer to PROCEDURE - Step 10 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 10 [11/2022 - ]

  34. REMOVE FUEL PUMP LIFTER ASSY

    Refer to PROCEDURE - Step 11 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 11 [11/2022 - ]

  35. REMOVE NO. 1 WATER BY-PASS HOSE ASSEMBLY

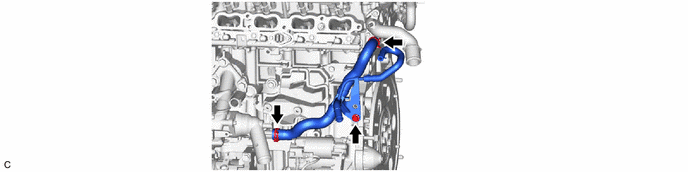

    1. GTY1029865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE SENSOR WIRE

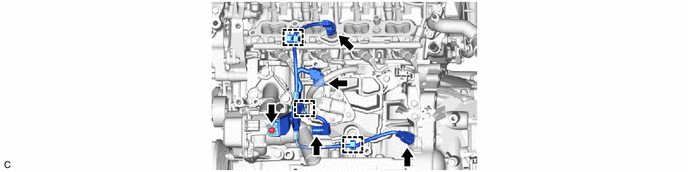

    1. GTY1029938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE NO. 6 ENGINE WIRE

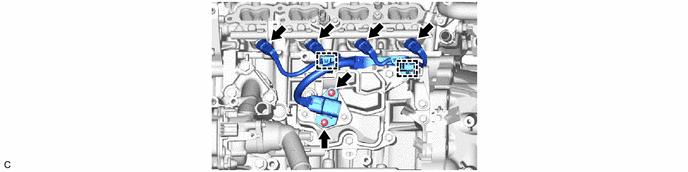

    1. GTY1029936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 4 [11/2022 - 11/2023]
  39. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 5 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - 11/2023]

  40. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - 11/2023]

  41. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - 11/2023]

  42. REMOVE PORT FUEL INJECTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - 11/2023]
  43. REMOVE FUEL DELIVERY PIPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - 11/2023]
  44. REMOVE DIRECT FUEL INJECTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 4 [11/2022 - 11/2023]
  45. REMOVE NOZZLE HOLDER CLAMP

    Refer to PROCEDURE - Step 5 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - 11/2023]

  46. REMOVE NO. 3 FUEL INJECTOR BACK-UP RING
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - 11/2023]
  47. REMOVE NO. 1 FUEL INJECTOR BACK-UP RING

    Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - 11/2023]

  48. REMOVE C-RING

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 8 [11/2022 - 11/2023]

  49. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 11/2023]

  50. REMOVE FUEL INJECTOR SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 10 [11/2022 - 11/2023]
  51. REMOVE IGNITION COIL ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  52. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

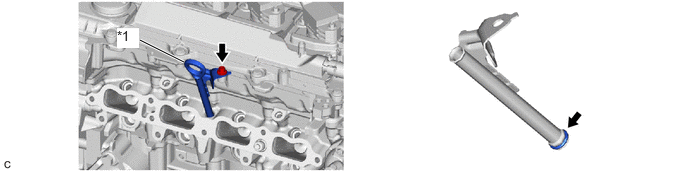

    1. GTY1030375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 OIL LEVEL GAGE SUB-ASSEMBLY - -
  53. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  54. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  55. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

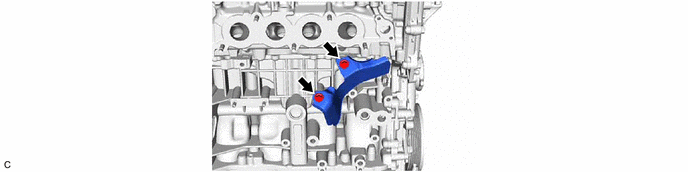

    1. GTY1029943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 3

  57. REMOVE VACUUM SURGE TANK

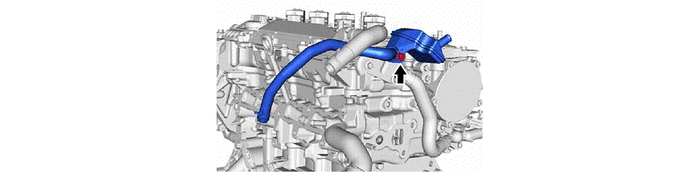

    1. GTY1029460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE VACUUM SURGE TANK BRACKET

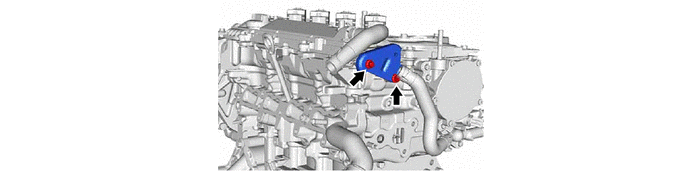

    1. GTY1029762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE NO. 2 VENTILATION HOSE

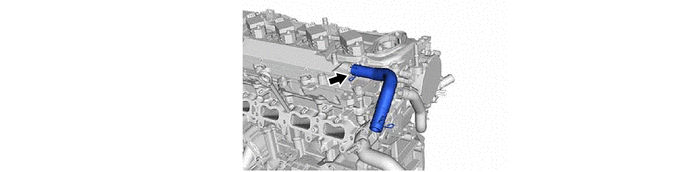

    1. GTY1029457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE WIRE HARNESS CLAMP BRACKET

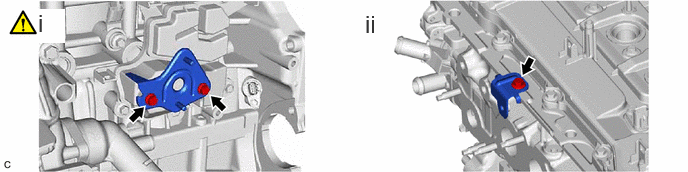

    1. GTY1030060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 2 bolts and wire harness clamp bracket from the No. 1 ventilation case.
      2. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
  61. REMOVE STUD BOLT

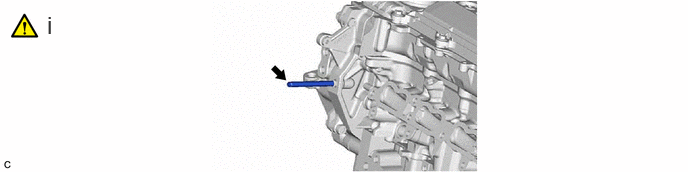

    1. GTY1030505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E8 "TORX" socket wrench, remove the stud bolt from the timing chain cover assembly.
