Removal [09/2021 - 11/2022]: Procedure

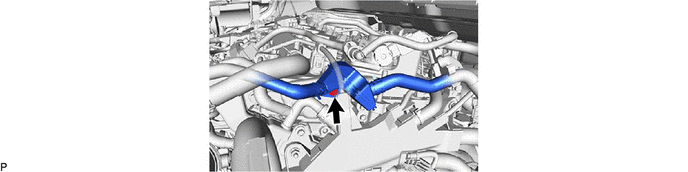

Refer to REMOVAL [09/2021 - 11/2022]

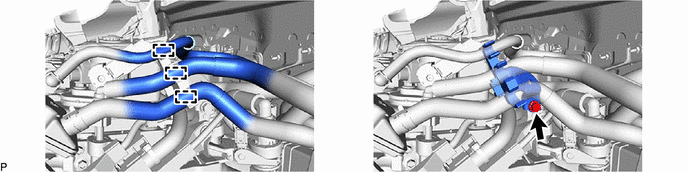

Refer to REMOVAL [09/2021 - 11/2022]

Refer to PROCEDURE - Step 18

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Retainer	-	-
   	Pinch		Pull off

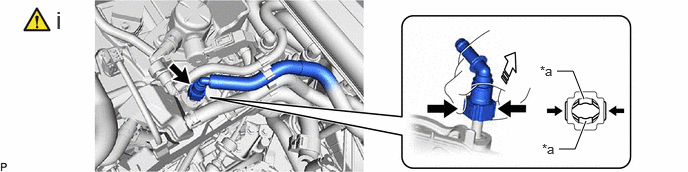

   1. Pinch the retainer of the No. 1 vacuum hose connector, and then pull off the No. 1 vacuum hose connector of the vacuum pump assembly.
      NOTE:

      Be sure to disconnect the No. 1 vacuum hose connector by hand.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape	-	-
   	Release the lock lever		Disconnect the connector

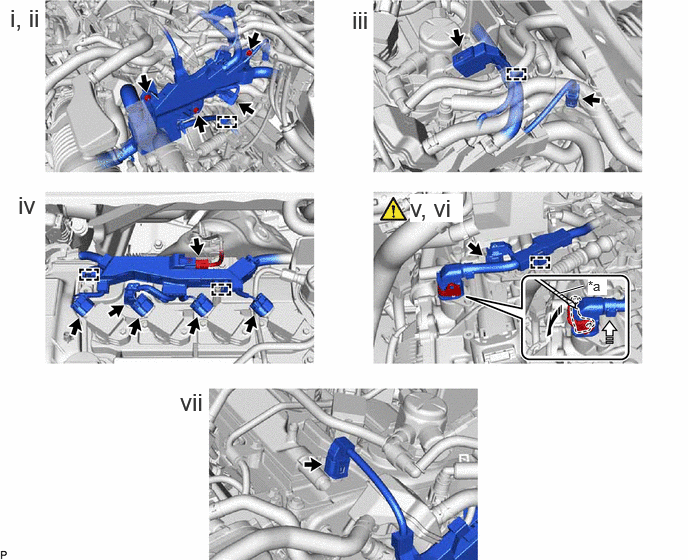

   1. Disconnect the connector and disengage the clamp.
   2. Remove the bolt and 2 nuts, and separate the engine wire.
   3. Disconnect the 2 connectors and disengage the clamp.
   4. Disconnect the 6 connectors and disengage the 2 clamps.
   5. Release the lock lever and disconnect the connector.
   6. Disconnect the connector and disengage the clamp.
   7. Disconnect the connector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

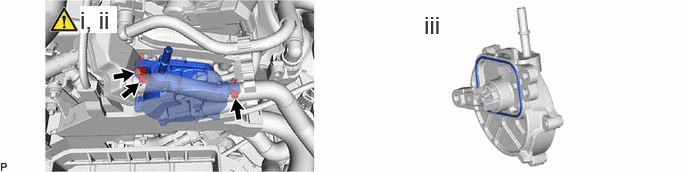

   1. Move aside the engine wire.
      NOTE:

      Do not apply excessive force to the engine wire.

   2. Using an 8 mm socket wrench, remove the 3 bolts and vacuum pump assembly from the engine assembly.
   3. Remove the No. 1 vacuum pump O-ring from the vacuum pump assembly.
