Removal [12/2022 - 12/2023]: Procedure
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
Refer to PRECAUTION [12/2022 - ]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2 - ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- for Manual Tilt and Manual Telescopic Steering Column:
Refer to PROCEDURE - Step 2
- for Power Tilt and Power Telescopic Steering Column:
Refer to PROCEDURE - Step 3
- for Manual Tilt and Manual Telescopic Steering Column:
- REMOVE STEERING WHEEL ASSEMBLY
Refer to REMOVAL [12/2022 - 12/2023]
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [12/2022 - 12/2023]
- REMOVE FRONT DOOR SCUFF PLATE LH
- Use the same procedure described for the RH side.
See step 10
- Use the same procedure described for the RH side.

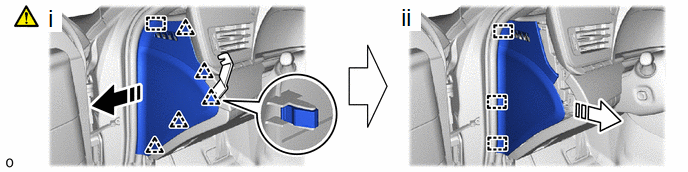

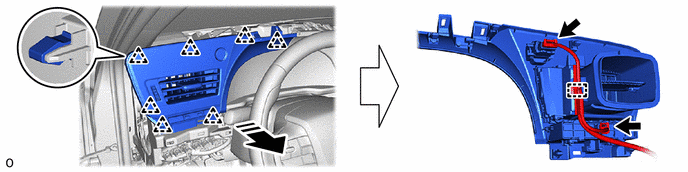

- REMOVE NO. 1 INSTRUMENT SIDE PANEL

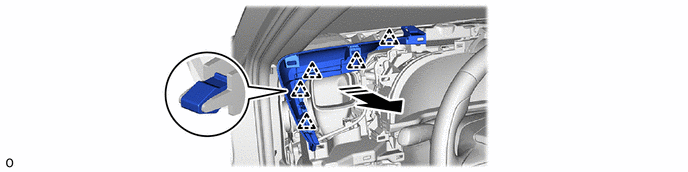

- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

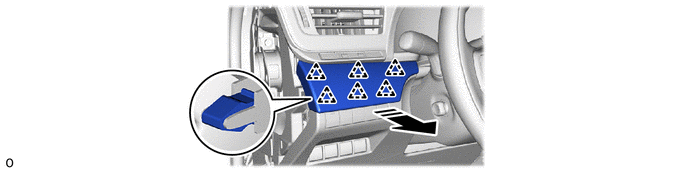

- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
HINT:
The illustrations are representative examples, and details may differ.

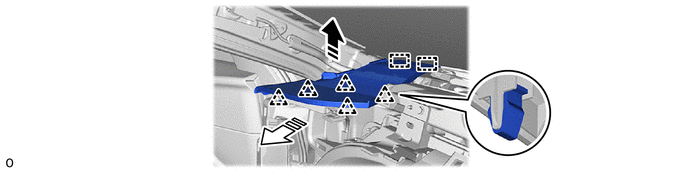

- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

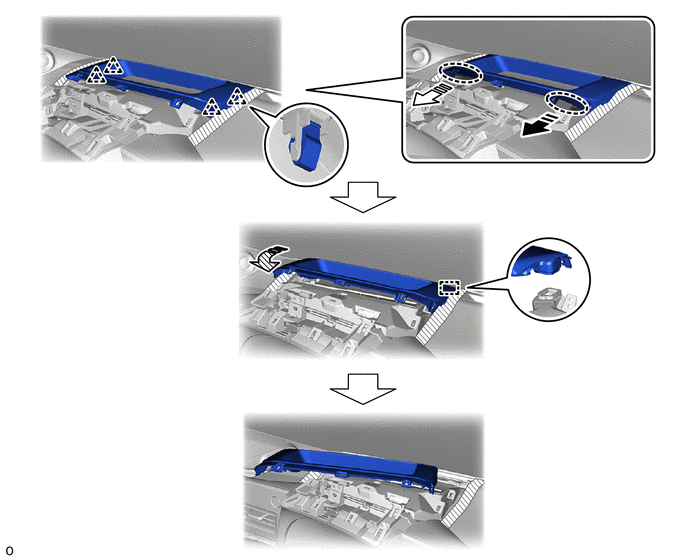

- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

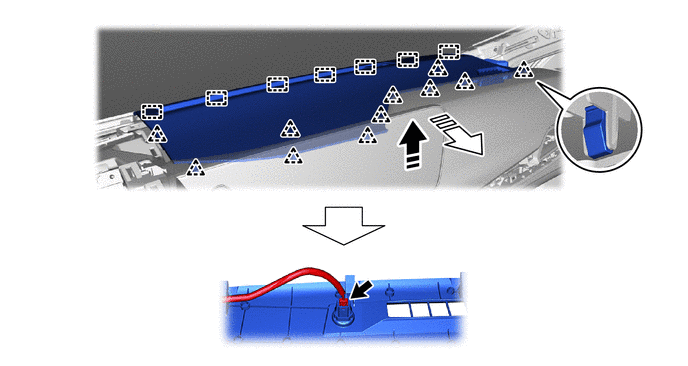

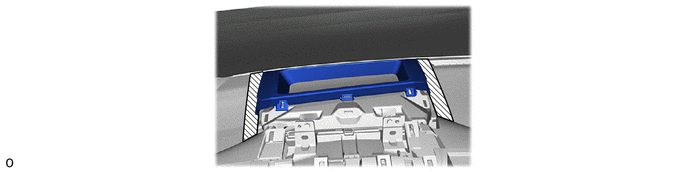

- REMOVE INSTRUMENT PANEL FINISH PLATE
- REMOVE INSTRUMENT CLUSTER FINISH PANEL END
HINT:
The illustrations are representative examples, and details may differ.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 10 - REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
HINT:
Pull back the front door opening trim weatherstrip LH so that the front pillar garnish assembly LH can be removed.
Refer to PROCEDURE - Step 2 - REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT: - Pull back the front door opening trim weatherstrip RH so that the front pillar garnish assembly RH can be removed.
- Use the same procedure described for the LH side.
- REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

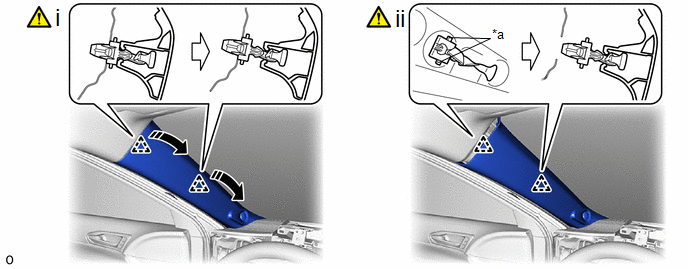

*a Release Lever - - Remove in this Direction - - - Detach the front pillar garnish assembly LH from the base of the front pillar garnish clip as shown in the illustration.
- While pushing the release lever of the front pillar garnish clip as shown in the illustration, detach it.
- When the front pillar garnish clip cannot be detached easily:
Pull in this Direction - - - While pushing the tab of the front pillar garnish clip shown in the illustration with your finger, move the front pillar garnish clip in the direction shown in the illustration.

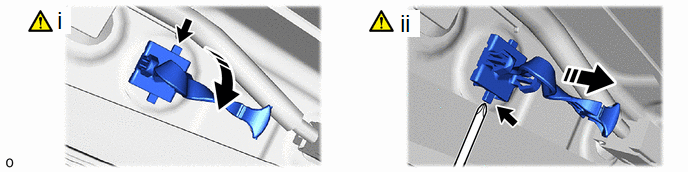

- While pulling the front pillar garnish clip as shown in the illustration, push the release lever of the front pillar garnish clip shown in the illustration with a screwdriver and detach the front pillar garnish clip.

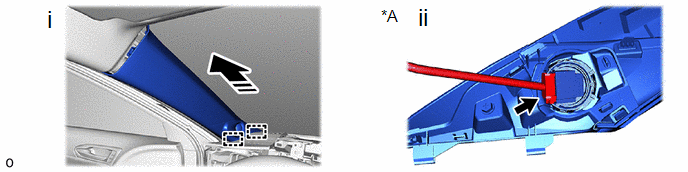

*A for 14 Speakers - - Remove in this Direction - - - Detach the guide and remove the front pillar garnish assembly LH as shown in the illustration.
- for 14 Speakers:
Disconnect the connector.
- Protect the curtain shield airbag assembly LH:

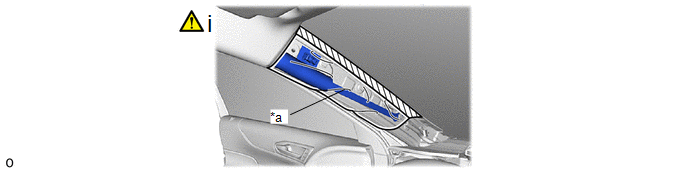

*a Protective Cover - - Adhesive Tape - - - Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.NOTE:
Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.
- Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.

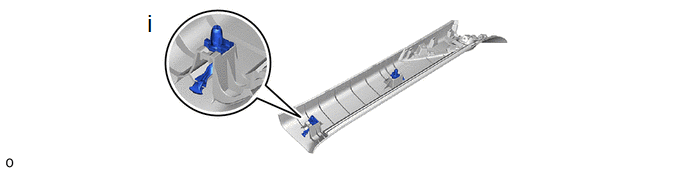

- Remove the 2 front pillar garnish clips from the front pillar garnish assembly LH.
- REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
- Use the same procedure described for the LH side.

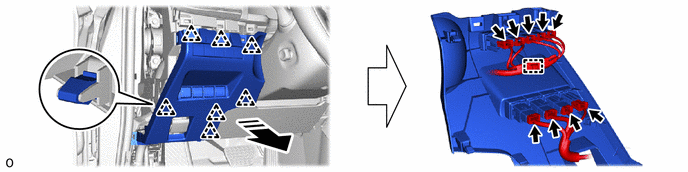

- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL
- REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

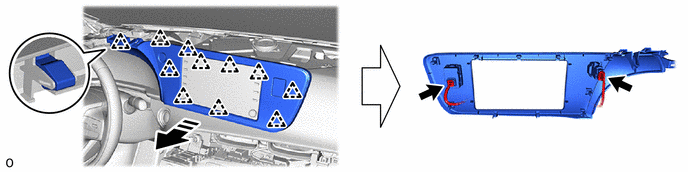

- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 9
- REMOVE NO. 3 RADIO RECEIVER BRACKET (for 12.3 Inch Display)
- REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 5 - REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL GARNISH

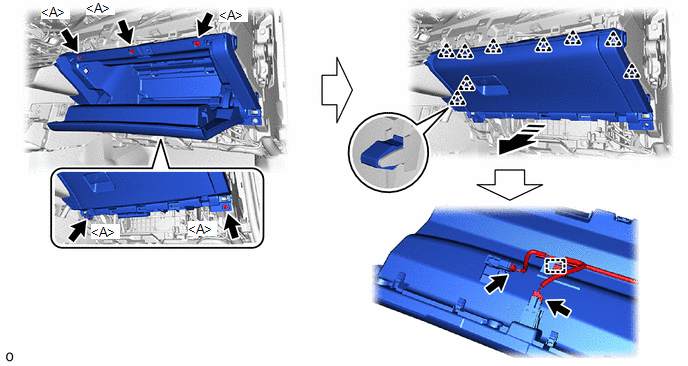

- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
- REMOVE POWER SWITCH
Refer to PROCEDURE - Step 2
- REMOVE SHIFT LOCK CONTROL UNIT ASSEMBLY
Refer to PROCEDURE - Step 2 - REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
Refer to PROCEDURE - Step 3
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 9 - REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for 14 Speakers)
Refer to PROCEDURE - Step 10 - REMOVE LOWER INSTRUMENT COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE COMBINATION METER ASSEMBLY

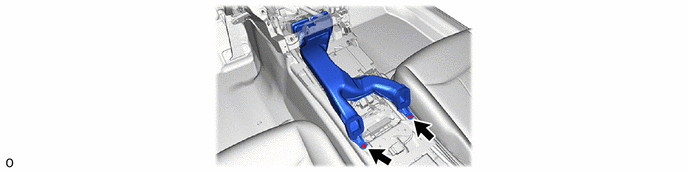

Refer to PROCEDURE - Step 10 - REMOVE NO. 1 CONSOLE BOX DUCT
- REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
Refer to REMOVAL [11/2020 - 12/2023]
- REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

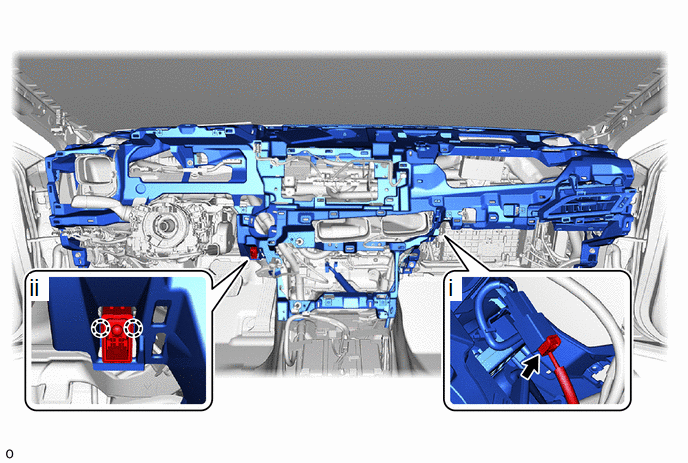

- Disconnect the connector.

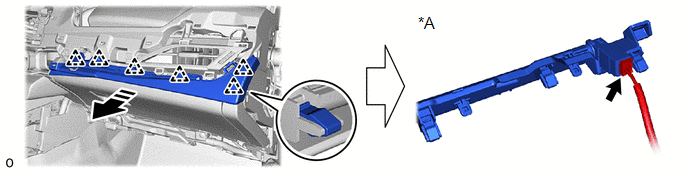

- Detach the claw and remove the cooler thermistor (room temperature sensor).

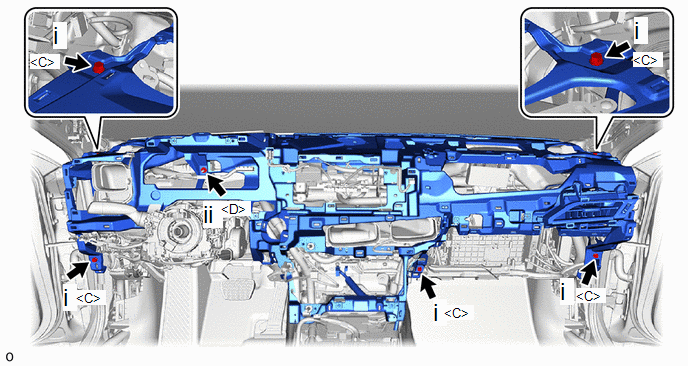

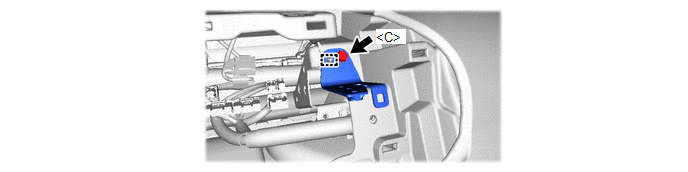

- Remove the 5 bolts <C>.
- Remove the nut <D>.

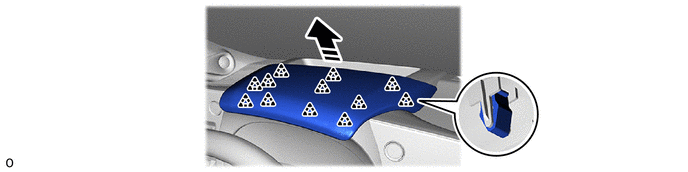

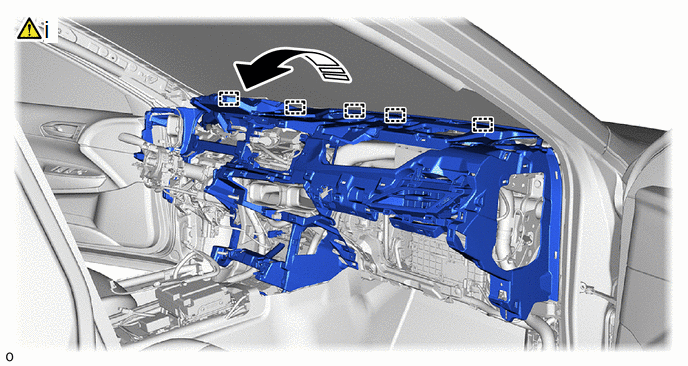

Remove in this Direction - - - Lift in the direction indicated by the arrow shown in the illustration to detach the guide.NOTE:
- Do not damage the instrument panel safety pad assembly or vehicle interior.
- Make sure that the wire harness does not get caught on anything as it may become damaged.
- Lift in the direction indicated by the arrow shown in the illustration to detach the guide.

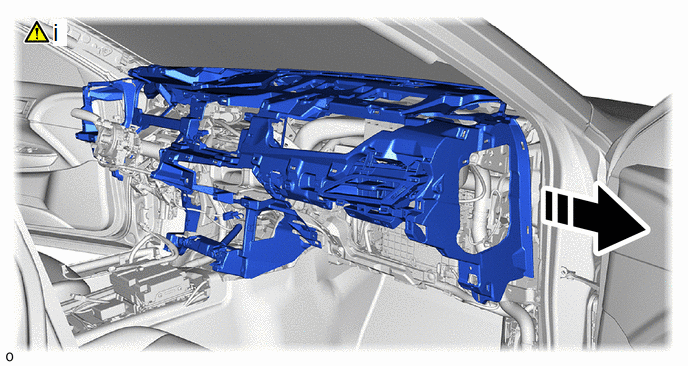

Remove in this Direction - - - Remove the instrument panel safety pad assembly as shown in the illustration.NOTE:
- Do not damage the instrument panel safety pad assembly or vehicle interior.
- Make sure that the wire harness does not get caught on anything as it may become damaged.
- Remove the instrument panel safety pad assembly as shown in the illustration.
