Removal [12/2022 - 12/2023]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2022 - 12/2023]

  2. REMOVE GLOVE COMPARTMENT DOOR PAD PLATE

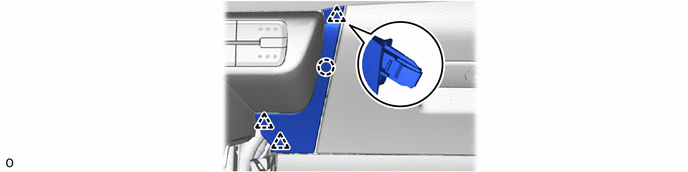

    1. GTY990730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

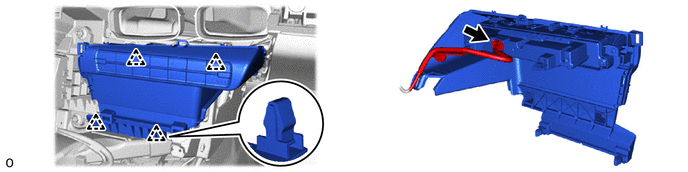

    1. GTY990731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
