Removal [12/2022 - 12/2023]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [12/2022 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - 12/2023]
  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [12/2022 - 12/2023]

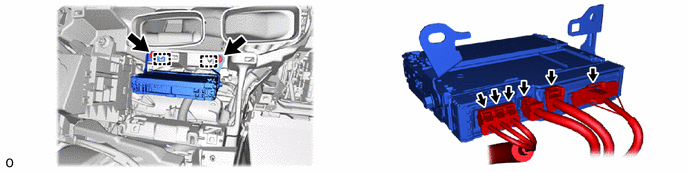

  3. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. GTY1169508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY1169507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 TELEPHONE BRACKET
    1. GTY1169506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
