Removal [11/2020 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  2. REMOVE POWER SWITCH

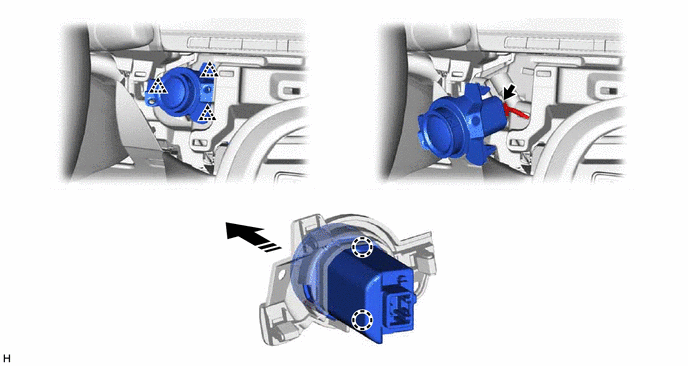

    1. GTY1002510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
