Removal [11/2020 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 10 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 10 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL END

    Refer to PROCEDURE - Step 13 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 13 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 13 [12/2023 - ]

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Pull back the front door opening trim weatherstrip LH so that the front pillar garnish LH can be removed.
    Refer to PROCEDURE - Step 2
  4. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 17 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 17 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 17 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 17 [12/2023 - ]
  5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

    Refer to PROCEDURE - Step 20 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 20 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 20 [12/2023 - ]

  6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure described for the LH side.
  7. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure described for the LH side.
  8. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL

    Refer to PROCEDURE - Step 19 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 19 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 19 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 19 [12/2023 - ]

  9. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not touch the cone section of the front No. 2 speaker assembly.

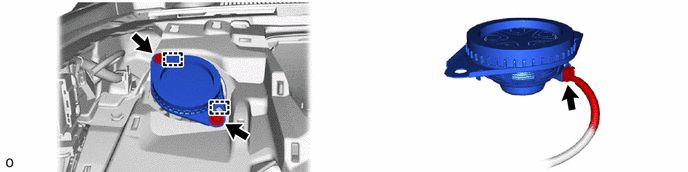

    1. GTY990950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Center)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not touch the cone section of the front No. 3 speaker assembly.

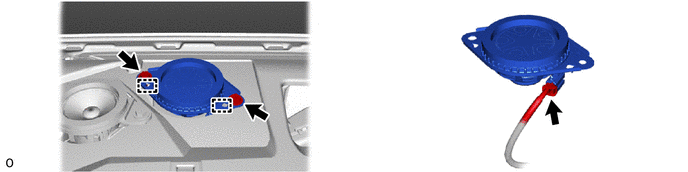

    1. GTY990946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
