Removal [12/2022 - 12/2023]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 10

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL END (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 13

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 8

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 21

  6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (for 12.3 Inch Display)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Pull back the front door opening trim weatherstrip RH so that the front pillar garnish RH can be removed.
    • Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 2
  7. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH (for 12.3 Inch Display)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure described for the LH side.
    Refer to PROCEDURE - Step 18
  8. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 20

  9. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    1. for 8 Inch Display:

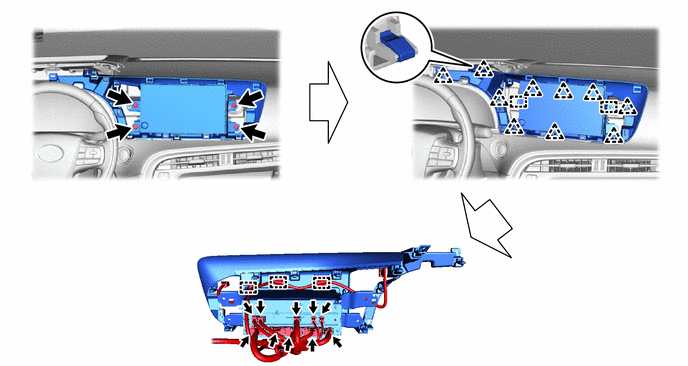

      GTY1169517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      GTY1169516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. for 8 Inch Display:
      GTY1169515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      GTY1169514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO RECEIVER BRACKET
    1. for 8 Inch Display:
      GTY1169520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      GTY1169519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY

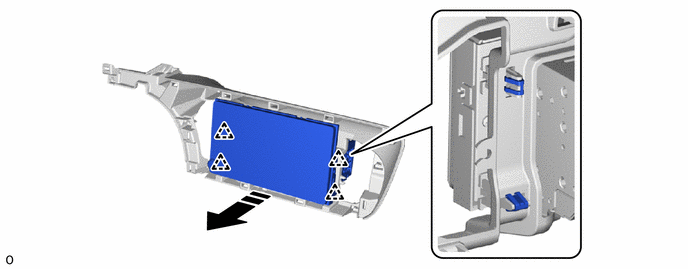

    1. GTY1169439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  13. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 10
