Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WIRE HARNESS CLAMP BRACKET

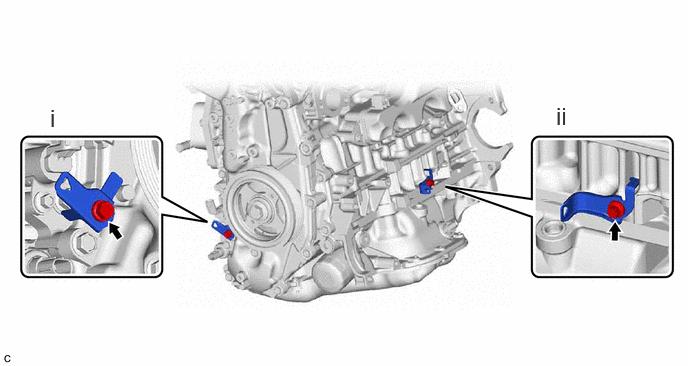

    1. GTY1105303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, install the wire harness clamp bracket to the No. 2 timing chain cover assembly with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      2. Using an 8 mm socket wrench, install the wire harness clamp bracket to the crankshaft bearing cap with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  3. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 1

  4. INSTALL KNOCK CONTROL SENSOR

    Refer to PROCEDURE - Step 1

  5. INSTALL ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)

    Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  6. INSTALL HEATER WATER HOSE BRACKET

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  7. INSTALL WATER BY-PASS GASKET

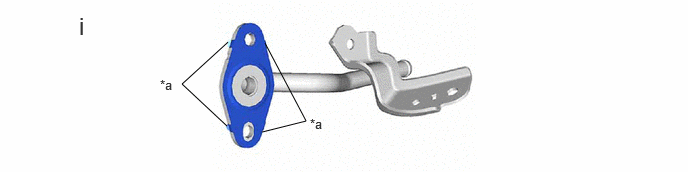

    1. GTY1106238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new water by-pass gasket to the water by-pass pipe sub-assembly.
        NOTE:

        Make sure that the claws of the water by-pass gasket are toward the water by-pass pipe sub-assembly side.

  8. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  9. INSTALL WATER BY-PASS HOSE
  10. INSTALL EXHAUST PIPE HEAT INSULATOR

    Refer to PROCEDURE - Step 5

  11. INSTALL NO. 2 MANIFOLD STAY

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  12. INSTALL WATER INLET HOUSING

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  13. INSTALL WIRE HARNESS

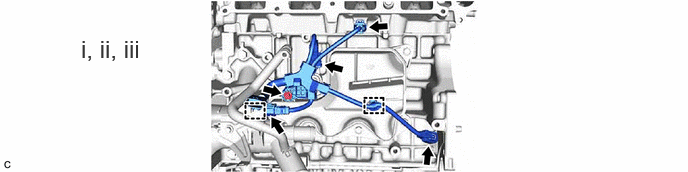

    1. GTY1105463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, install the wire harness with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      2. Engage the 2 clamps.
      3. Connect the 4 connectors.
  14. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  15. INSTALL PORT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  16. INSTALL NO. 5 ENGINE WIRE
  17. INSTALL INJECTOR VIBRATION INSULATOR
  18. INSTALL FUEL DELIVERY SPACER
  19. INSTALL FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  20. INSTALL NO. 2 WATER BY-PASS PIPE

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  21. INSTALL FUEL PUMP LIFTER ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  22. INSTALL FUEL PUMP SPACER GASKET
  23. TEMPORARILY INSTALL FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  24. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  25. INSTALL FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  26. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  27. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1109306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly to the fuel delivery pipe.

        Refer to PRECAUTION [10/2022 - ]

      2. Connect the fuel tube sub-assembly to the fuel (engine room side) pump assembly.

        Refer to PRECAUTION [10/2022 - ]

      3. Install the EFI fuel pipe clamp (fuel delivery pipe side) to the fuel tube connector.
  28. CONNECT WATER OUTLET STAY

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  29. TEMPORARILY INSTALL TURBOCHARGER SUB-ASSEMBLY
    1. GTY1250251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new exhaust manifold to head gasket.
      2. Temporarily install the turbocharger sub-assembly to the cylinder head sub-assembly by tightening 4 new nuts by 2 or 3 threads.
  30. INSTALL NO. 1 TURBO OIL OUTLET GASKET
    1. GTY1109139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new No. 1 turbo oil outlet gasket to the No. 1 turbo oil pipe.
        NOTE:

        Make sure that the claws of the No. 1 turbo oil outlet gasket are toward the No. 1 turbo oil pipe side.

  31. INSTALL NO. 1 TURBO OIL PIPE

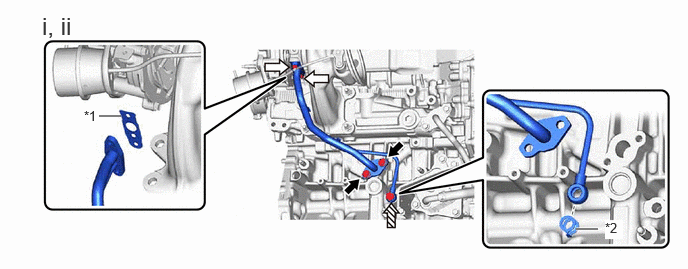

    1. GTY1250238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Turbo Oil Inlet Gasket *2 Gasket
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Install a new turbo oil inlet gasket and gasket.

        HINT:

        Face the straight part of the turbo oil inlet gasket toward the outside of the engine.

      2. Temporarily install the No. 1 turbo oil pipe to the turbocharger sub-assembly and cylinder block sub-assembly by tightening the oil pipe union bolt, 2 bolts and 2 nuts by 2 or 3 threads.

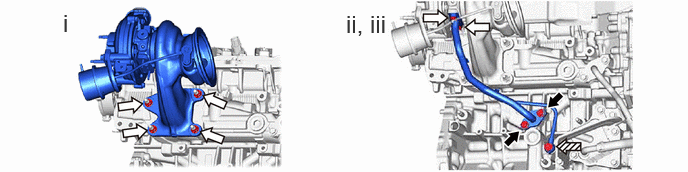

    2. GTY1249982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Temporarily install the turbocharger sub-assembly to the cylinder head sub-assembly by tightening the 4 nuts until the turbocharger sub-assembly is seated.
      2. Temporarily install the No. 1 turbo oil pipe to the turbocharger sub-assembly by tightening the 2 nuts until the No. 1 turbo oil pipe is seated.
      3. Temporarily install the No. 1 turbo oil pipe to the cylinder block sub-assembly by tightening the 2 bolts and oil pipe union bolt until the No. 1 turbo oil pipe is seated.
    3. Fig 1: No. 1 Turbo Oil Pipe Bolts And Nuts Tightening Sequence
      GTY1249983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Uniformly tighten the 4 nuts in the order shown in the illustration.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      2. Uniformly tighten the 2 bolts, oil pipe union bolt and 2 nuts in the order shown in the illustration.

        Bolt

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

        Oil Pipe Union Bolt

        Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

        Nut

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  32. INSTALL MANIFOLD STAY

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  33. INSTALL NO. 1 HEAT INSULATOR BRACKET

    Refer to PROCEDURE - Step 5

  34. CONNECT NO. 3 TURBO WATER HOSE

    Refer to PROCEDURE - Step 6

  35. CONNECT NO. 2 TURBO WATER HOSE

    Refer to PROCEDURE - Step 7

  36. INSTALL NO. 1 TURBO INSULATOR

    Refer to PROCEDURE - Step 8

  37. INSTALL COMPRESSOR INLET ELBOW SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  38. INSTALL VACUUM REGULATING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. INSTALL WATER OUTLET GASKET
    1. GTY1105487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new water outlet gasket to the front water by-pass joint.
        NOTE:

        Make sure that the claws of the water outlet gasket are toward the front water by-pass joint side.

  40. INSTALL FRONT WATER BY-PASS JOINT

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  41. INSTALL WATER CONTROL VALVE

    Refer to PROCEDURE - Step 1

  42. INSTALL INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to PROCEDURE - Step 4

  43. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

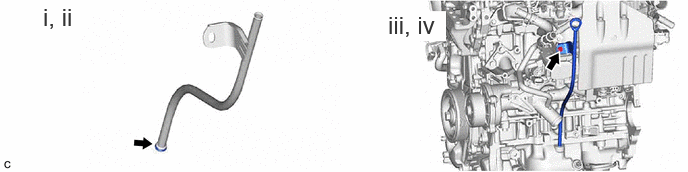

    1. GTY1107755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply a light coat of engine oil to a new O-ring.
      2. Install the O-ring to the engine oil level dipstick guide.
      3. Using an 8 mm socket wrench, install the engine oil level dipstick guide to the intake manifold with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      4. Install the engine oil level dipstick.
  44. CONNECT NO. 5 WATER BY-PASS HOSE
  45. CONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 7

  46. CONNECT NO. 4 TURBO WATER HOSE

    Refer to PROCEDURE - Step 9

  47. CONNECT NO. 3 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 11

  48. CONNECT NO. 1 TURBO WATER HOSE

    Refer to PROCEDURE - Step 13

  49. CONNECT NO. 2 FUEL VAPOR FEED HOSE
  50. INSTALL AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 15

  51. CONNECT NO. 1 VENTILATION PRESSURE SENSOR HOSE
  52. INSTALL PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 16

  53. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  54. INSTALL DRIVE SHAFT BEARING BRACKET

    Torque: 63.7 N.m (650 kgf/cm, 47 ft.lbf)
