Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

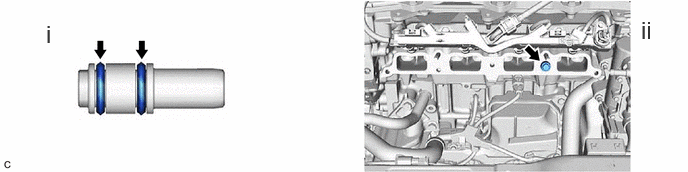

    1. GTY1108598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply a light coat of engine oil to the O-ring.
        NOTE:

        When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.

      2. Install the PCV valve (ventilation valve sub-assembly) to the cylinder head sub-assembly.
  2. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [10/2022 - ]
