WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP LIFTER ASSEMBLY
    1. GTY1107912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Pump Assembly *2 Fuel Pump Lifter Assembly
      *3 Camshaft - -
      *a Correct *b Incorrect
      *c Pump Drive Cam (Engine Oil Application Area) *d Fuel Pump Lifter Assembly (Engine Oil Application Area)
      *e Fuel Pump Lifter Guide (Engine Oil Application Area) *f Stopper Key
      *g Key Groove - -
      1. Turn the crankshaft pulley until the flat of the camshaft faces the fuel pump lifter assembly.

        HINT:

        This prevents the camshaft nose from pushing up the fuel pump lifter assembly when installing the fuel pump assembly.

      2. Apply 30 cc (1.8 cu in.) of engine oil to the pump drive cam.
      3. Apply engine oil to the fuel pump lifter assembly.
      4. Apply engine oil to the inside of the fuel pump lifter guide and the outside of the fuel pump lifter assembly.
      5. Set the fuel pump lifter assembly on the fuel pump lifter guide as shown in the illustration.

        HINT:

        Align the stopper key of the fuel pump lifter assembly with the key groove of the fuel pump lifter guide.

  2. INSTALL FUEL PUMP SPACER GASKET
  3. TEMPORARILY INSTALL FUEL PUMP ASSEMBLY
    NOTE:

    When replacing the fuel pump assembly, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.

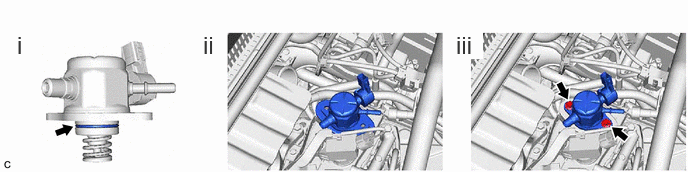

    1. GTY1103733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply engine oil to a new O-ring and install it to the fuel pump assembly.
        NOTE:

        Do not damage the O-ring.

      2. Set the fuel pump flange and fuel pump assembly on the No. 5 camshaft bearing cap.
      3. Temporarily install the fuel pump assembly with the 2 bolts, leaving some allowance for left and right movement.
  4. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY
    NOTE:

    Do not damage the seals of the union nuts of the No. 1 fuel pipe sub-assembly.

    1. GTY1104754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the No. 1 fuel pipe sub-assembly to the fuel delivery pipe sub-assembly and tighten the union nut by hand.
      2. Temporarily install the No. 1 fuel pipe sub-assembly to the fuel pump assembly and tighten the union nut by hand.
  5. INSTALL FUEL PUMP ASSEMBLY
    1. GTY1106417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Tighten the 2 bolts.

        Torque: 28.5 N.m (291 kgf/cm, 21 ft.lbf)

  6. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

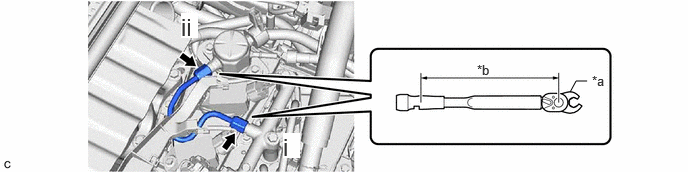

    1. GTY1109366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 17 mm Union Nut Wrench *b Torque Wrench Fulcrum Length
      1. Using a 17 mm union nut wrench, tighten the union nut on the fuel delivery pipe sub-assembly side of the No. 1 fuel pipe sub-assembly.

        Specified tightening torque

        Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [11/2023 - ]

        • When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 30 N.m (306 kgf/cm, 22 ft.lbf)
      2. Using a 17 mm union nut wrench, tighten the union nut on the fuel pump assembly side of the No. 1 fuel pipe sub-assembly.

        Specified tightening torque

        Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [11/2023 - ]

        • When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 30 N.m (306 kgf/cm, 22 ft.lbf)
  7. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1108566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly to the fuel pump assembly.

        Refer to PRECAUTION [10/2022 - ]

  8. INSTALL AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 15

  9. INSTALL PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 16

  10. CONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 17

  11. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 18

  12. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  13. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56

  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  15. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  16. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6

  17. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing the fuel pump assembly.

      Refer to INITIALIZATION [10/2022 - ]

  18. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2023 - ]
