Installation [10/2022 - 11/2023]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

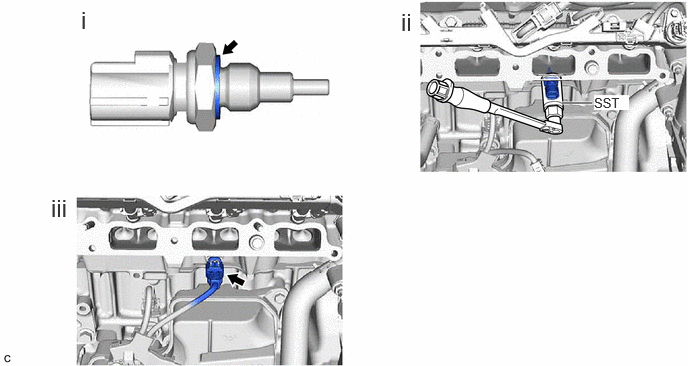

   1. Install a new gasket to the engine coolant temperature sensor.
   2. Using SST, install the engine coolant temperature sensor to the cylinder head sub-assembly.
      • SST: 09817-33191

      Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)

      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

   3. Connect the engine coolant temperature sensor connector.

HINT:

Perform this procedure only when replacement of the engine coolant temperature sensor (for Cylinder Head Side) is necessary.

Refer to INSTALLATION [10/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

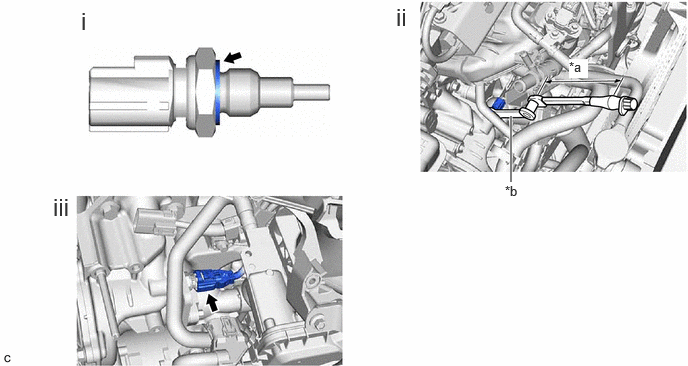

   *a

   Torque Wrench Fulcrum Length

   *b

   Ball Joint Lock Nut Wrench

   1. Install a new gasket to the engine coolant temperature sensor.
   2. Using a ball joint lock nut wrench, install the engine coolant temperature sensor to the water inlet housing.

      Specified tightening torque

      Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)

      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [12/2019 - 11/2023]

      • When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        10.2 N.m (104 kgf/cm, 8 ft.lbf)

   3. Connect the engine coolant temperature sensor connector.

HINT:

Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

HINT:

Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

HINT:

Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

HINT:

Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

Refer to INSTALLATION [10/2022 - 11/2023]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

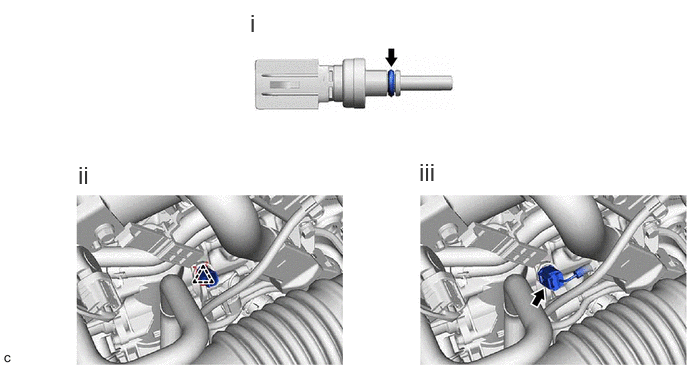

   1. Apply a light coat of engine coolant to the O-ring of the engine coolant temperature sensor.
   2. Install the engine coolant temperature sensor to the front water by-pass joint with a new clip.
      NOTE:

      • If the engine coolant temperature sensor has been struck or dropped, replace it.
      • If reusing the engine coolant temperature sensor, be sure to inspect the O-ring.
      • Make sure that the O-ring is not cracked or moved out of place when installing the engine coolant temperature sensor.
   3. Connect the engine coolant temperature sensor connector.

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

1. Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

   Refer to INITIALIZATION [10/2022 - ]
