Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK CONTROL SENSOR

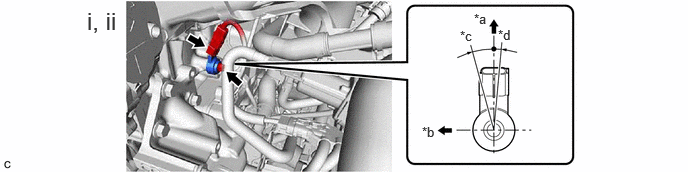

*a Top *b Right of Vehicle *c 15° *d 5° - Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
NOTE:- If the knock control sensor has been struck or dropped, replace it.
- Make sure that the knock control sensor is in the correct position.
- Connect the knock control sensor connector.
- Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.
- CONNECT WIRE HARNESS
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL GENERATOR ASSEMBLY
Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the knock control sensor.
Refer to INITIALIZATION [10/2022 - ]
- Perform "Inspection After Repair" after replacing the knock control sensor.
