Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CRANKSHAFT POSITION SENSOR

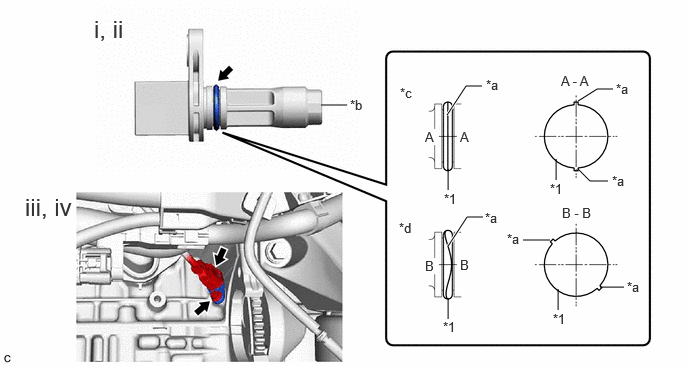

    1. GTY1103085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring - -
      *a Seam *b Crankshaft Position Sensor Tip
      *c OK *d NG
      1. Perform this procedure only when reusing the crankshaft position sensor.
        1. Clean the O-ring groove of the crankshaft position sensor.
          NOTE:

          Make sure the O-ring groove is free of foreign matter.

        2. Install a new O-ring to the crankshaft position sensor.
          NOTE:

          Set the O-ring on the tip of the crankshaft position sensor and roll it into the O-ring groove with bare hands to install it.

        3. Check if the O-ring is twisted.

          HINT:

          Check the entire circumference of the seam of the O-ring for twisting.

      2. Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.
      3. Using an 8 mm socket wrench, install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:
        • If the crankshaft position sensor has been struck or dropped, replace it.
        • Make sure that the O-ring is not cracked or moved out of place when installing the crankshaft position sensor.
      4. Connect the crankshaft position sensor connector.
  2. INSTALL STARTER ASSEMBLY
