Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. GTY1108422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new gasket as shown in the illustration.
      2. Install the No. 1 turbo water pipe sub-assembly with the bolt and 2 nuts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  2. INSTALL TURBOCHARGER SUB-ASSEMBLY

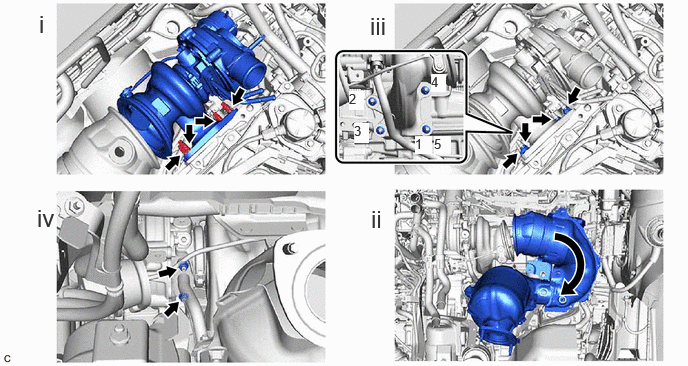

    1. Fig 1: Turbocharger Sub-Assembly Nuts Tightening Sequence
      GTY1106432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E10 "TORX" socket wrench, install the 4 stud bolts.

        Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

      2. Rotate the converter with catalyst assembly outwards around the stud bolts to secure install space.
      3. Install the turbocharger sub-assembly with 4 new nuts in the order shown in the illustration.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

        NOTE:

        After tightening the 4 nuts to the specified torque, tighten the first nut again.

      4. Install the No. 1 turbo oil pipe and turbocharger sub-assembly with the 2 nuts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  3. INSTALL EXHAUST PIPE CLAMP

    Refer to PROCEDURE - Step 2

  4. INSTALL CONVERTER WITH CATALYST ASSEMBLY

    Refer to PROCEDURE - Step 3

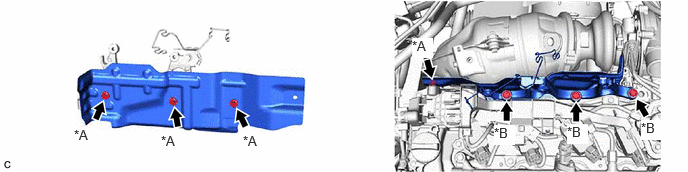

  5. INSTALL NO. 1 HEAT INSULATOR BRACKET
    1. GTY1105088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      *B

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  6. CONNECT NO. 3 TURBO WATER HOSE
    1. GTY1105178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark (White) - -
      1. Connect the No. 3 turbo water hose.

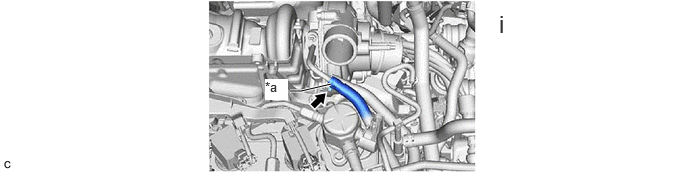

  7. CONNECT NO. 2 TURBO WATER HOSE
    1. GTY1106622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark (Yellow) - -
      1. Connect the No. 2 turbo water hose.
  8. INSTALL NO. 1 TURBO INSULATOR

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  9. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to PROCEDURE - Step 1

    Specified tightening torque

    Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

  10. INSTALL DASH PANEL HEAT INSULATOR

    Torque: 4.9 N.m (50 kgf/cm, 43 in.lbf)

  11. INSTALL COMPRESSOR INLET ELBOW SUB-ASSEMBLY

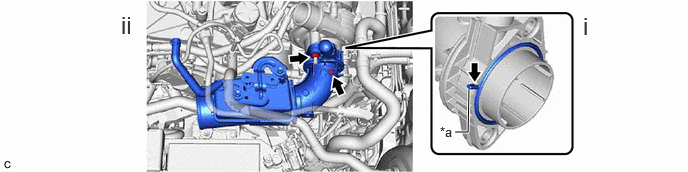

    1. Type A:
      GTY1108653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion - -
      1. Install a new throttle body gasket to the compressor inlet elbow sub-assembly with the protrusion of the throttle body gasket oriented as shown in the illustration.
      2. Install the compressor inlet elbow sub-assembly and turbocherger sub-assembly with the 2 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

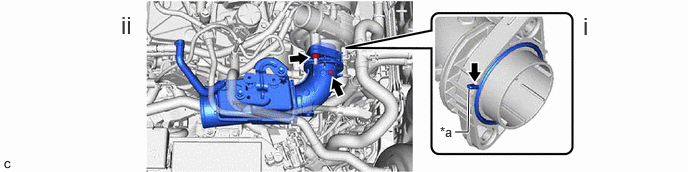

    2. Type B:
      GTY1103564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion - -
      1. Install a new throttle body gasket to the compressor inlet elbow sub-assembly with the protrusion of the throttle body gasket oriented as shown in the illustration.
      2. Install the compressor inlet elbow sub-assembly and turbocherger sub-assembly with the 2 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  12. INSTALL VACUUM REGULATING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 1

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  13. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
  14. INSTALL AIR TUBE ASSEMBLY

    See step  15

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  15. CONNECT NO. 2 VENTILATION HOSE
  16. INSTALL PURGE VALVE (PURGE VSV)

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  17. CONNECT ENGINE WIRE

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  18. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY

    See step  19

  19. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 56 [11/2023 - ]

  20. INSTALL COWL VENTILATOR PANEL SUB-ASSEMBLY
  21. INSTALL FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH
  22. INSTALL FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH
  23. INSTALL FRONT FENDER SPLASH SHIELD SEAL FRONT LH
  24. INSTALL FRONT FENDER SPLASH SHIELD SEAL FRONT RH
  25. INSTALL FENDER REAR SPLASH SHIELD SUB-ASSEMBLY LH
  26. INSTALL FENDER REAR SPLASH SHIELD SUB-ASSEMBLY RH
  27. INSTALL HOOD CUSHION CENTER LH
  28. INSTALL HOOD CUSHION CENTER RH
  29. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]

  30. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [10/2022 - ]

  31. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2WD)

    Refer to INSTALLATION [10/2022 - ]

  32. ADD COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 5

  33. INSPECT FOR EXHAUST GAS LEAK

    See step  3

  34. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

      Refer to INITIALIZATION [10/2022 - ]
