Removal [12/2015 - 11/2017]: Procedure

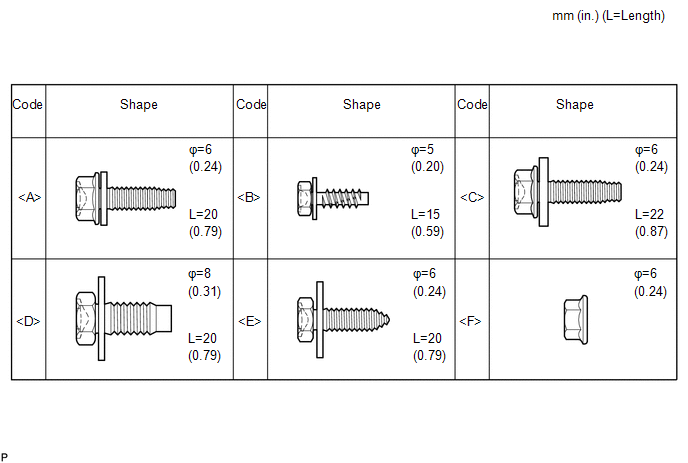

- BOLT, SCREW AND NUT TABLE
- TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] ).
- REMOVE CONSOLE ASSEMBLY (for Slide Type)
(Refer to REMOVAL [12/2015 - ] )
- REMOVE CONSOLE ASSEMBLY (for Fixed Type)
(Refer to REMOVAL [12/2015 - ] )
- REMOVE STEERING WHEEL ASSEMBLY
(Refer to REMOVAL [12/2015 - ] )
- REMOVE LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 10
- REMOVE UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 11
- REMOVE DOOR SCUFF PLATE ASSEMBLY RH
See step 3
- REMOVE DOOR SCUFF PLATE ASSEMBLY LH
HINT:
Use the same procedure as for the RH side.
- REMOVE COWL SIDE TRIM BOARD RH
See step 5
- REMOVE COWL SIDE TRIM BOARD LH
HINT:
Use the same procedure as for the RH side.
- SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- Separate the front door opening trim weatherstrip RH.
- SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
HINT:
Use the same procedure as for the RH side.
- REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

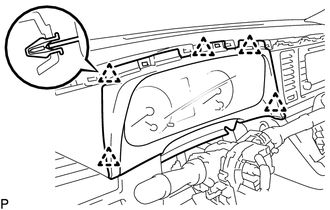

- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL
- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

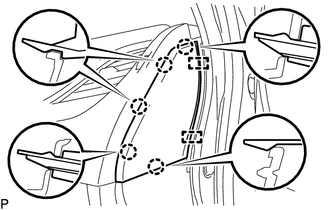

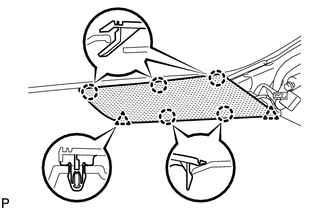

- REMOVE INSTRUMENT SIDE PANEL RH
- Disengage the 5 claws and 2 guides to remove the instrument side panel RH.
- REMOVE INSTRUMENT SIDE PANEL LH
HINT:
Use the same procedure as for the RH side.
- REMOVE INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY LH
- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 4

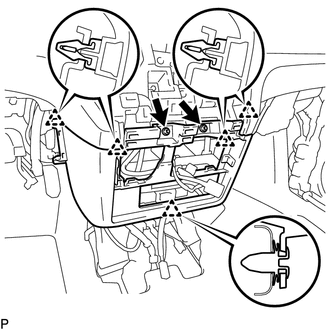

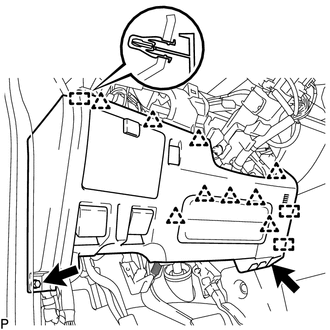

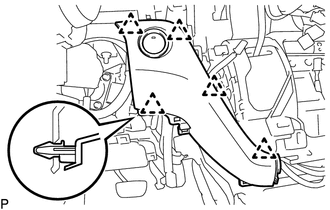

- REMOVE NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL
- Remove the 2 <A> bolts.
- Disengage the 9 clips and 3 guides to separate the No. 1 instrument panel lower finish panel.
- Disengage the claw and 2 guides to separate the fuel lid lock open lever.
- Disengage the claw and 2 guides to separate the hood lock control lever.
- Disconnect the connectors to remove the No. 1 instrument panel lower finish panel.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 12 [08/2016 - ]
- REMOVE POSITION INDICATOR HOUSING ASSEMBLY
Refer to PROCEDURE - Step 13 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - ]
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (for Radio Receiver Type)
Refer to PROCEDURE - Step 7
- REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for Navigation Receiver Type)
Refer to PROCEDURE - Step 7

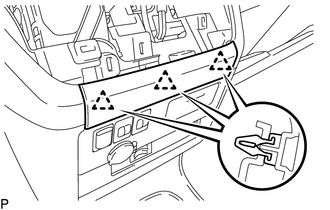

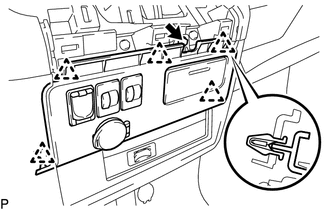

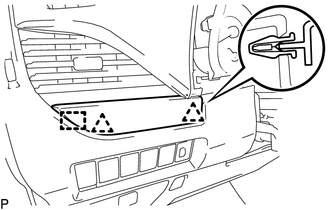

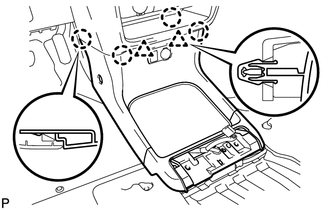

- REMOVE NO. 2 SWITCH HOLE BASE
- Disengage the 3 clips to remove the No. 2 switch hole base.

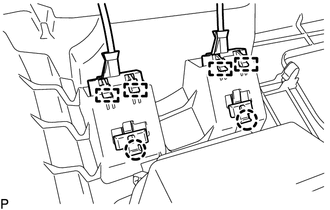

- REMOVE NO. 1 SWITCH HOLE BASE
- REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY

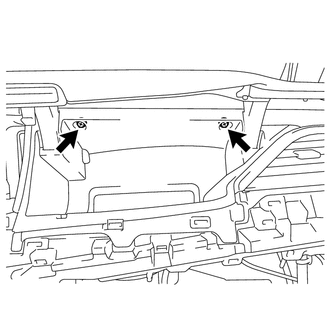

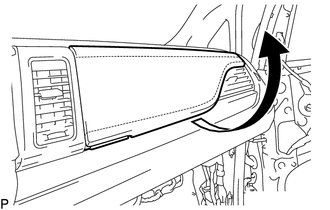

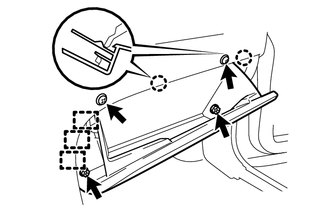

- REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
- Remove the 2 <A> bolts and 2 <B> screws.
- Disengage the 2 claws and 3 guides to remove the glove compartment door sub-assembly.
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH
- REMOVE INSTRUMENT PANEL FINISH PANEL END LH
HINT:
Use the same procedure as for the RH side.

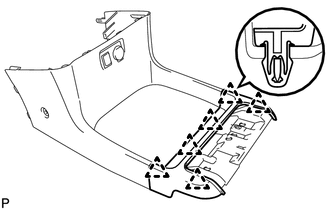

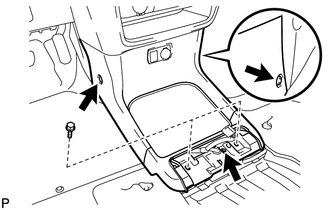

- REMOVE INSTRUMENT LOWER CENTER COVER (w/o Front Console Box)
- REMOVE INSTRUMENT LOWER CENTER COVER (w/ Front Console Box)
- REMOVE INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY
- REMOVE BOX BOTTOM MAT
- Remove the box bottom mat.

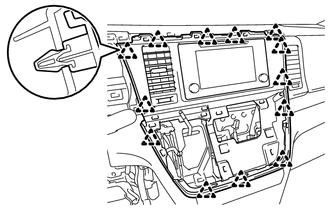

- REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY
- REMOVE STEREO OPENING COVER (w/ Disc Player)
Refer to PROCEDURE - Step 20
- REMOVE DISC PLAYER ASSEMBLY WITH BRACKET (w/ Disc Player)
Refer to PROCEDURE - Step 21
- REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

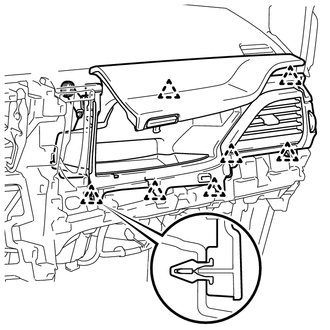

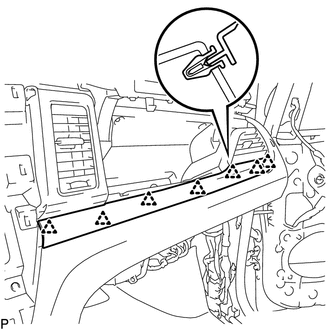

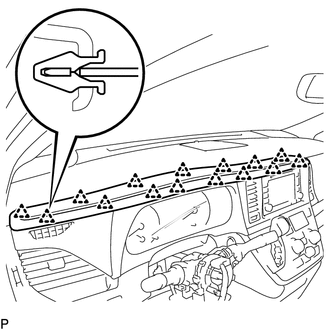

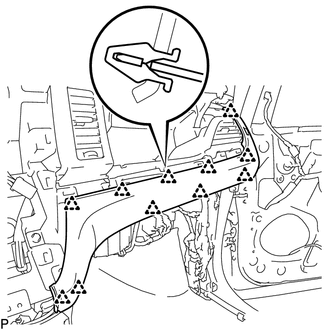

- REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- Disengage the 11 clips to remove the instrument panel finish panel sub-assembly.

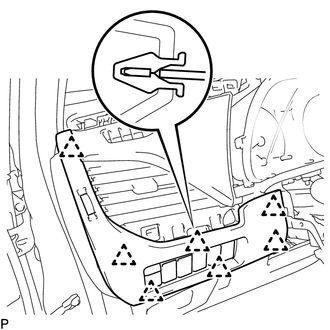

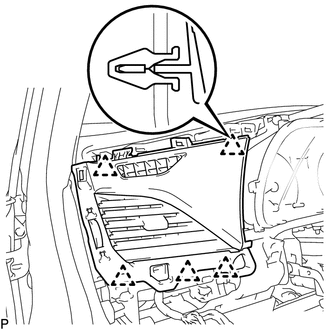

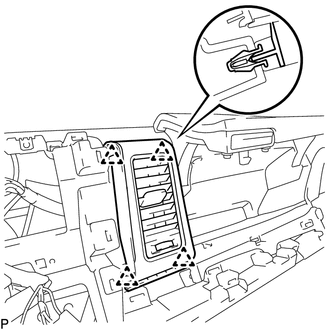

- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
- Disengage the 4 clips to remove the No. 3 instrument panel register assembly.
- REMOVE NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
- REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD RETAINER
- REMOVE FRONT PILLAR GARNISH RH
See step 9
- REMOVE FRONT PILLAR GARNISH LH
HINT:
Use the same procedure as for the RH side.
- REMOVE FRONT PILLAR LOWER GARNISH RH
See step 11
- REMOVE FRONT PILLAR LOWER GARNISH LH
HINT:
Use the same procedure as for the RH side.
- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:
Use the same procedure as for the No. 2 instrument panel speaker panel sub-assembly.
- REMOVE INSTRUMENT PANEL FINISH PLATE SUB-ASSEMBLY
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 4

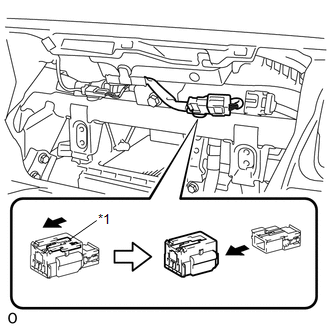

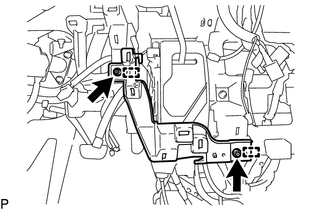

- DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

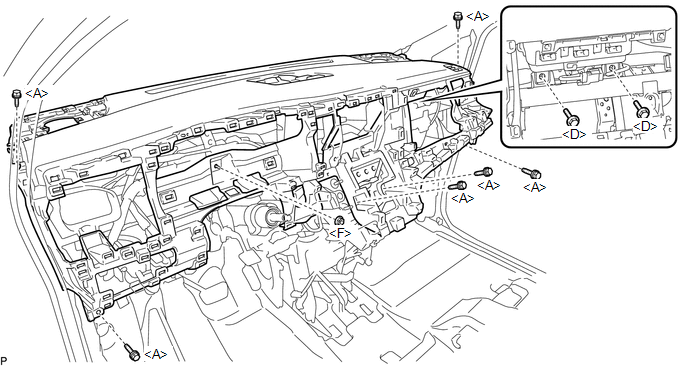

- REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
