Removal [12/2015 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 16 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 16 [11/2017 - ]

  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

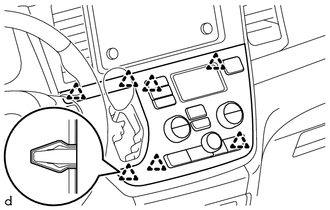

    GTY482341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 7 clips to separate the air conditioning control assembly.
    2. Disconnect the connector to remove the air conditioning control assembly.
