Removal [08/2016 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 3 [12/2015 - 11/2017] Refer to PROCEDURE - Step 4 [11/2017 - ]

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  3. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 5 [12/2015 - 11/2017] Refer to PROCEDURE - Step 6 [11/2017 - ]

  4. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  5. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 13 [12/2015 - 11/2017] Refer to PROCEDURE - Step 13 [11/2017 - ]

  6. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side.

  7. REMOVE NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL

    Refer to PROCEDURE - Step 23 [12/2015 - 11/2017] Refer to PROCEDURE - Step 23 [11/2017 - ]

  8. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34 [12/2015 - 11/2017] Refer to PROCEDURE - Step 33 [11/2017 - ]

  9. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2015 - 11/2017] Refer to PROCEDURE - Step 15 [11/2017 - ]

  10. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 16 [12/2015 - 11/2017] Refer to PROCEDURE - Step 16 [11/2017 - ]

  11. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 3

  12. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob sub-assembly counterclockwise to remove it from the shift lever assembly.
      GTY707773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE POSITION INDICATOR HOUSING ASSEMBLY
    1. Disengage the 4 clips to separate the position indicator housing assembly from the center instrument cluster finish panel sub-assembly.
      GTY735579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the indicator light wire connector to remove the position indicator housing assembly.
  14. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28 [12/2015 - 11/2017] Refer to PROCEDURE - Step 28 [11/2017 - ]

  15. REMOVE CONSOLE BOX ASSEMBLY (for Slide Type)

    Refer to REMOVAL [12/2015 - ]

  16. REMOVE CONSOLE BOX ASSEMBLY (for Fixed Type)

    Refer to REMOVAL [12/2015 - ]

  17. REMOVE INSTRUMENT LOWER CENTER COVER (w/o Console Box)

    Refer to PROCEDURE - Step 37 [12/2015 - 11/2017] Refer to PROCEDURE - Step 36 [11/2017 - ]

  18. REMOVE INSTRUMENT LOWER CENTER COVER (w/ Console Box)

    Refer to PROCEDURE - Step 38 [12/2015 - 11/2017] Refer to PROCEDURE - Step 37 [11/2017 - ]

  19. REMOVE BOX BOTTOM MAT

    Refer to PROCEDURE - Step 40 [12/2015 - 11/2017] Refer to PROCEDURE - Step 39 [11/2017 - ]

  20. REMOVE INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [12/2015 - 11/2017] Refer to PROCEDURE - Step 38 [11/2017 - ]

  21. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 35 [12/2015 - 11/2017] Refer to PROCEDURE - Step 34 [11/2017 - ]

  22. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    HINT:

    Use the same procedure as for the RH side.

  23. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 31 [12/2015 - 11/2017] Refer to PROCEDURE - Step 30 [11/2017 - ]

  24. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 32 [12/2015 - 11/2017] Refer to PROCEDURE - Step 31 [11/2017 - ]

  25. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 41 [12/2015 - 11/2017] Refer to PROCEDURE - Step 40 [11/2017 - ]

  26. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 48 [12/2015 - 11/2017] Refer to PROCEDURE - Step 47 [11/2017 - ]

  27. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD RETAINER

    Refer to PROCEDURE - Step 49 [12/2015 - 11/2017] Refer to PROCEDURE - Step 48 [11/2017 - ]

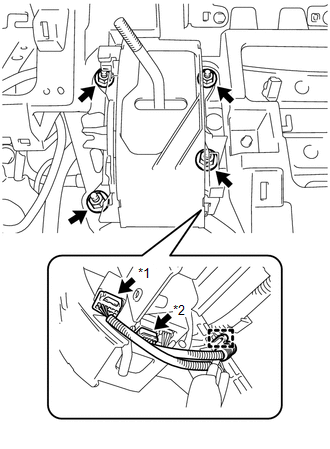

  28. REMOVE SHIFT LEVER ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control switch connector and shift lock control ECU connector.
      GTY722673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Control Switch Connector
      *2 Shift Lock Control ECU Connector
    3. Disengage the clamp to separate the wire harness from the shift lever assembly.
    4. Remove the 4 nuts and shift lever assembly from the instrument panel reinforcement.
  29. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Disconnect the end of the transmission control cable assembly from the shift lever assembly.
      GTY727597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pull out the stopper of the transmission control cable assembly.
      GTY727596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not remove the stopper. If the stopper is removed, reinstall it to its original position.

    3. Rotate the nut of the transmission control cable assembly counterclockwise approximately 270° and while holding the nut in that position, separate the cable outer of the transmission control cable assembly from the shift lever retainer.
      GTY727595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
