Removal [12/2015 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    (Refer to PROCEDURE - Step 3 [12/2015 - 11/2017] Refer to PROCEDURE - Step 4 [11/2017 - ] )

  2. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  3. REMOVE COWL SIDE TRIM BOARD RH

    (Refer to PROCEDURE - Step 5 [12/2015 - 11/2017] Refer to PROCEDURE - Step 6 [11/2017 - ] )

  4. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    (Refer to PROCEDURE - Step 13 [12/2015 - 11/2017] Refer to PROCEDURE - Step 13 [11/2017 - ] )

  6. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    (Refer to PROCEDURE - Step 14 [12/2015 - 11/2017] Refer to PROCEDURE - Step 14 [11/2017 - ] )

  7. REMOVE CONSOLE ASSEMBLY (for Slide Type)

    (Refer to REMOVAL [12/2015 - ] )

  8. REMOVE CONSOLE ASSEMBLY (for Fixed Type)

    (Refer to REMOVAL [12/2015 - ] )

  9. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    (Refer to PROCEDURE - Step 35 [12/2015 - 11/2017] Refer to PROCEDURE - Step 34 [11/2017 - ] )

  10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    HINT:

    Use the same procedure as for the RH side.

  11. REMOVE BOX BOTTOM MAT

    (Refer to PROCEDURE - Step 40 [12/2015 - 11/2017] Refer to PROCEDURE - Step 39 [11/2017 - ] )

  12. REMOVE INSTRUMENT LOWER CENTER COVER (w/o Console Box)

    (Refer to PROCEDURE - Step 37 [12/2015 - 11/2017] Refer to PROCEDURE - Step 36 [11/2017 - ] )

  13. REMOVE INSTRUMENT LOWER CENTER COVER (w/ Console Box)

    (Refer to PROCEDURE - Step 38 [12/2015 - 11/2017] Refer to PROCEDURE - Step 37 [11/2017 - ] )

  14. REMOVE INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY

    (Refer to PROCEDURE - Step 39 [12/2015 - 11/2017] Refer to PROCEDURE - Step 38 [11/2017 - ] )

  15. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    (Refer to PROCEDURE - Step 34 [12/2015 - 11/2017] Refer to PROCEDURE - Step 33 [11/2017 - ] )

  16. REMOVE NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL

    (Refer to PROCEDURE - Step 23 [12/2015 - 11/2017] Refer to PROCEDURE - Step 23 [11/2017 - ] )

  17. REMOVE NO. 2 SWITCH HOLE BASE

    (Refer to PROCEDURE - Step 31 [12/2015 - 11/2017] Refer to PROCEDURE - Step 30 [11/2017 - ] )

  18. REMOVE NO. 1 SWITCH HOLE BASE

    (Refer to PROCEDURE - Step 32 [12/2015 - 11/2017] Refer to PROCEDURE - Step 31 [11/2017 - ] )

  19. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY

    (Refer to PROCEDURE - Step 41 [12/2015 - 11/2017] Refer to PROCEDURE - Step 40 [11/2017 - ] )

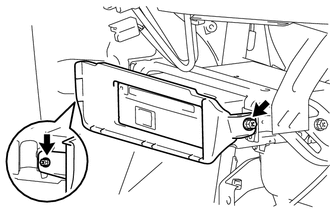

  20. REMOVE STEREO OPENING COVER
    GTY480269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and stereo opening cover.

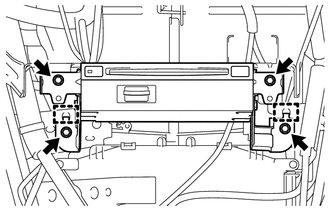

  21. REMOVE DISC PLAYER ASSEMBLY WITH BRACKET
    GTY480268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts.
    2. Disengage the 2 guides.
    3. Disconnect the connector to remove the disc player assembly with bracket.
  22. REMOVE TELEVISION BRACKET LH
    GTY482638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and television bracket LH.
  23. REMOVE TELEVISION BRACKET RH
    GTY480270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and television bracket RH.

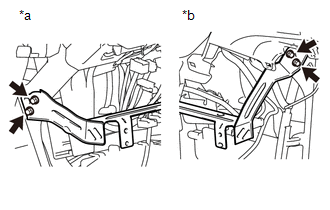

  24. REMOVE TELEVISION TOP BRACKET
    1. Remove the 4 bolts and television top bracket.
      GTY474461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a LH Side
      *b RH Side
