Removal [12/2015 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - ] ).

  2. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 3 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 4 [11/2017 - ]

  3. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 5 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - ]

  4. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  5. REMOVE NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL

    Refer to PROCEDURE - Step 23 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 23 [11/2017 - ]

  6. REMOVE KNEE AIRBAG ASSEMBLY

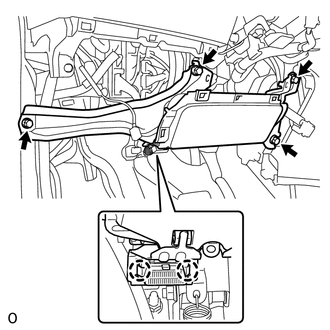

    1. Remove the 4 bolts.
      GTY307154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to separate the DLC3.
    3. Remove the knee airbag assembly.

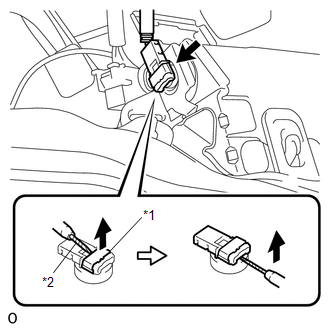

    4. Using a thin-bladed screwdriver with its tip wrapped with protective tape, release the locking button.
      GTY706324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Locking Button
      *2 Protective Tape
    5. Using a thin-bladed screwdriver with its tip wrapped with protective tape, disconnect the airbag connector.
