Removal [12/2015 - ]: Procedure

REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
(Refer to PROCEDURE - Step 54 [12/2015 - 11/2017] Refer to PROCEDURE - Step 53 [11/2017 - ] )

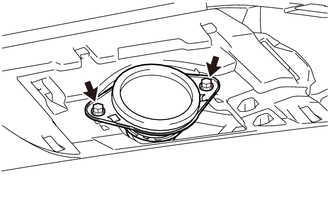

REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 bolts.
2. Disconnect the connector to remove the front No. 2 speaker assembly.
  NOTE:
  Do not touch the cone part of the front No. 2 speaker assembly.
REMOVE INSTRUMENT PANEL FINISH PLATE SUB-ASSEMBLY
(Refer to PROCEDURE - Step 45 [12/2015 - 11/2017] Refer to PROCEDURE - Step 44 [11/2017 - ] )

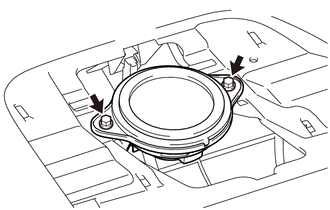

REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 bolts.
2. Disconnect the connector to remove the front No. 3 speaker assembly.
  NOTE:
  Do not touch the cone part of the front No. 3 speaker assembly.
