Removal [12/2015 - ]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  2. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2015 - 11/2017] Refer to PROCEDURE - Step 15 [11/2017 - ]

  3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

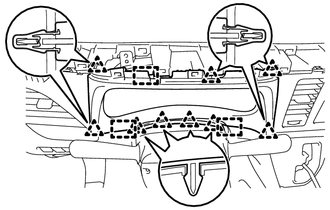

    1. Disengage the 9 clips and 3 guides to remove the No. 1 instrument cluster finish panel.
      GTY472812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COMBINATION METER ASSEMBLY

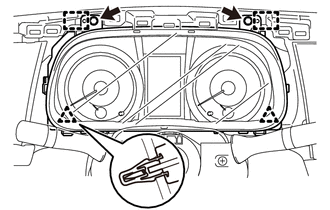

    1. Remove the 2 screws.
      GTY480217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and 2 guides.
    3. Disconnect the 2 connectors to remove the combination meter assembly.
