Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 12 [08/2017 - 08/2019]

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 12 [08/2017 - 08/2019]

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 15 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 15 [08/2018 - 08/2019]

  4. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 17 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 17 [08/2018 - 08/2019]

  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 26 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 26 [08/2018 - 08/2019]

  10. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 28 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 28 [08/2018 - 08/2019]

  11. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 16 [08/2017 - 08/2019]

  12. REMOVE NAVIGATION RECEIVER ASSEMBLY

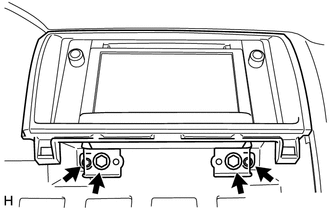

    1. Remove the 4 bolts.
      GTY426237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

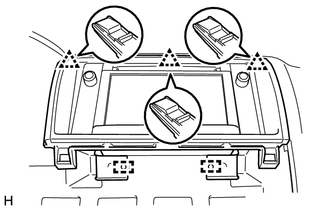

    2. Pull the navigation receiver assembly to detach the 3 clips and 2 guides on the backside of the navigation receiver assembly.
      GTY426236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the navigation receiver assembly.

      HINT:

      w/ Satellite Radio:

      Do not disconnect the No. 1 navigation wire connector.

  13. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

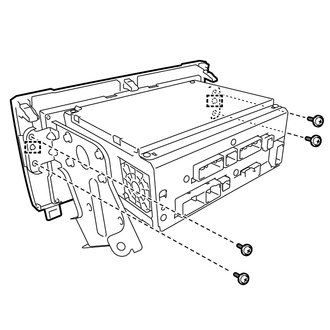

    1. Remove the 4 screws.
      GTY572381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 guides and remove the upper instrument cluster finish panel.
  14. REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)

    Refer to PROCEDURE - Step 14

  15. REMOVE NO. 1 RADIO RECEIVER BRACKET

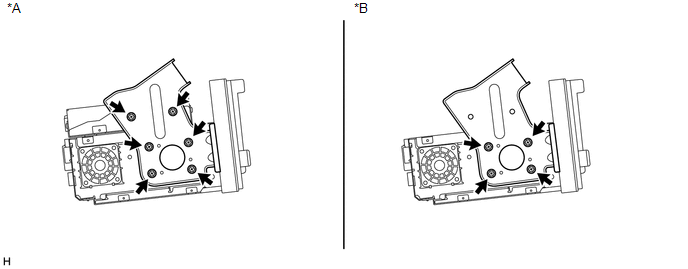

    GTY589869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *A w/ Satellite Radio *B w/o Satellite Radio
    1. w/ Satellite Radio:

      Remove the 6 bolts and No. 1 radio receiver bracket.

    2. w/o Satellite Radio:

      Remove the 4 bolts and No. 1 radio receiver bracket.

  16. REMOVE NO. 2 RADIO RECEIVER BRACKET

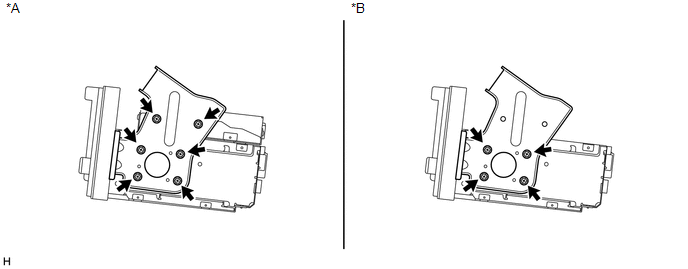

    GTY549128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *A w/ Satellite Radio *B w/o Satellite Radio
    1. w/ Satellite Radio:

      Remove the 6 bolts and No. 2 radio receiver bracket.

    2. w/o Satellite Radio:

      Remove the 4 bolts and No. 2 radio receiver bracket.

  17. REMOVE STEREO COMPONENT TUNER ASSEMBLY (w/ Satellite Radio)

    Refer to PROCEDURE - Step 17
