Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 12 [08/2017 - 08/2019]

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 14 [08/2017 - 08/2019]

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 15 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 15 [08/2018 - 08/2019]

  4. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    (Refer to PROCEDURE - Step 3 )

  5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 17 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 17 [08/2018 - 08/2019]

  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 26 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 26 [08/2018 - 08/2019]

  10. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 28 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 28 [08/2018 - 08/2019]

  11. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 16 [08/2017 - 08/2019]

  12. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY

    See step  12

  13. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

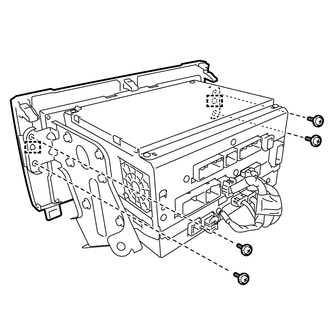

    1. Remove the 4 screws.
      GTY431507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 guides and remove the upper instrument cluster finish panel.
  14. REMOVE NO. 1 NAVIGATION WIRE

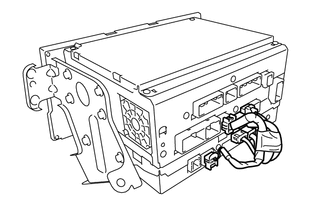

    1. Disconnect each connector and remove the No. 1 navigation wire.
      GTY431619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 RADIO RECEIVER BRACKET
    GTY431620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

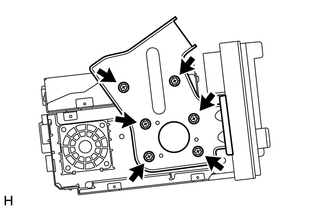

    1. Remove the 6 bolts and No. 1 radio receiver bracket.
  16. REMOVE NO. 2 RADIO RECEIVER BRACKET
    GTY431613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 6 bolts and No. 2 radio receiver bracket.
  17. REMOVE STEREO COMPONENT TUNER ASSEMBLY
    1. Detach the 2 guides and remove the stereo component tuner assembly as shown in the illustration.
      GTY431612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
