Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  12 [08/2015 - 08/2017], or see step  12 [08/2017 - 08/2019]

  2. REMOVE COWL SIDE TRIM BOARD LH

    See step  14 [08/2015 - 08/2017], or see step  14 [08/2017 - 08/2019]

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    See step  16 [08/2015 - 08/2017], or see step  16 [08/2017 - 08/2019]

  4. REMOVE FRONT PILLAR GARNISH LH

    See step  26 [08/2015 - 08/2017], or see step  26 [08/2017 - 08/2019]

  5. REMOVE INSTRUMENT SIDE PANEL LH

    See step  15 [08/2015 - 08/2017], or see step  15 [08/2017 - 08/2018], or see step  15 [08/2018 - 08/2019]

  6. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    See step  17 [08/2015 - 08/2017], or see step  17 [08/2017 - 08/2018], or see step  17 [08/2018 - 08/2019]

  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Twist the shift lever knob in the direction indicated by the arrow and remove it.

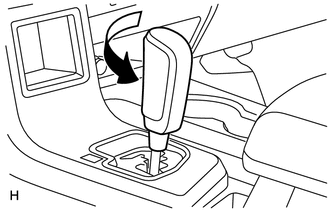

      GTY177629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

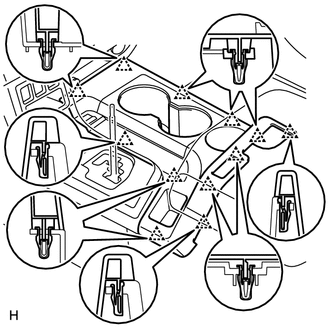

    GTY611645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 12 clips and remove the console panel.
  10. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

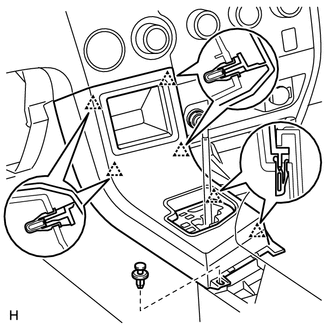

    GTY556193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the shift lever to N.
    2. Remove the clip.
    3. Detach the 6 clips and remove the console panel.
    4. Disconnect the connector
  11. REMOVE REAR CONSOLE BOX POCKET

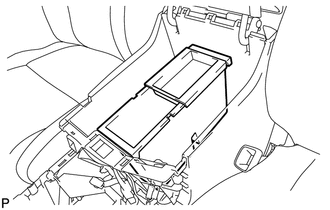

    GTY550529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear console box pocket.
  12. REMOVE CONSOLE BOX CARPET

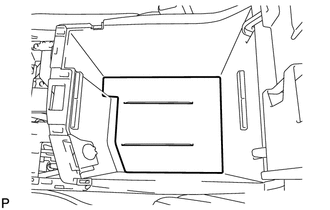

    GTY550530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the console box carpet.
  13. REMOVE REAR CONSOLE BOX ASSEMBLY

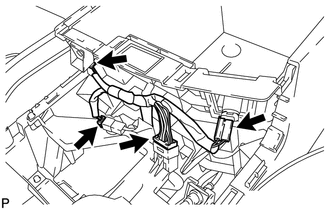

    GTY600170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Remove the 4 bolts and 2 screws.

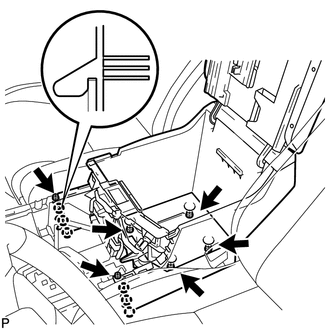

      GTY590512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 6 claws and remove the rear console box.
  14. REMOVE FRONT CONSOLE BOX

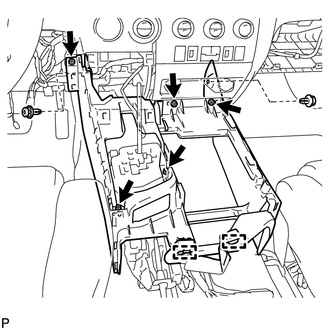

    GTY556189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 clamps.
    2. Remove the 2 clips.
    3. Remove the 5 screws and the front console box.
