Engine Assembly: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE  (See REMOVAL )
  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM  (See REPLACEMENT )
  3. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  4. REMOVE BATTERY
    1. Loosen the nut, and disconnect the negative battery terminal.
      CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
    2. Remove the nut, and separate the positive battery terminal cable.
    3. Loosen the nut, and remove the bolt and battery clamp.
    4. Remove the battery and battery tray.
      5. Fig 1: Identifying Battery Nuts
      G05414363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  6. REMOVE FRONT WHEELS
  7. REMOVE ENGINE UNDER COVER ASSEMBLY
    1. Remove the 2 bolts and engine under cover assembly RR.
      Fig 2: Identifying Engine Under Cover Assembly RR Bolts
      G05414364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, 2 screws, 5 clips and engine under cover assembly.
      Fig 3: Identifying Engine Under Cover Assembly Screws, Bolts & Clips
      G05414365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 ENGINE UNDER COVER
    1. Remove the 6 bolts, 2 clips and No. 1 engine under cover.
      Fig 4: Identifying No. 1 Engine Under Cover Bolts & Clips
      G05414366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 ENGINE UNDER COVER
    1. Remove the 2 bolts and No. 2 engine under cover.
      Fig 5: Identifying No. 2 Engine Under Cover Bolts
      G05414367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FLOOR UNDER COVER LH  (See REMOVAL )
  11. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY LH  (See REMOVAL )
  12. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY RH  (See REMOVAL )
  13. REMOVE FRONT FENDER LINER LH  (See REMOVAL )
  14. REMOVE FRONT FENDER LINER RH  (See REMOVAL )
  15. REMOVE FRONT FENDER APRON SEAL LH
    1. Remove the 2 bolts, clip and front fender apron seal LH.
      Fig 6: Identifying Front Fender Apron Seal LH Bolts
      G05414368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the 2 bolts, clip and front fender apron seal RH.
      Fig 7: Identifying Front Fender Apron Seal RH Bolts
      G05414369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DRAIN ENGINE OIL  (See REPLACEMENT )
  18. DRAIN ENGINE COOLANT  (See REPLACEMENT )
  19. DRAIN AUTOMATIC TRANSAXLE FLUID  (See REMOVAL )
  20. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See REMOVAL )
  21. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See REMOVAL )
  22. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See REMOVAL )
  23. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See REMOVAL )
  24. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
    1. Remove the 4 clips, and separate the engine wire.
      Fig 8: Identifying Engine Wire Clips
      G05414370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts, 6 nuts and front outer cowl top panel sub-assembly.

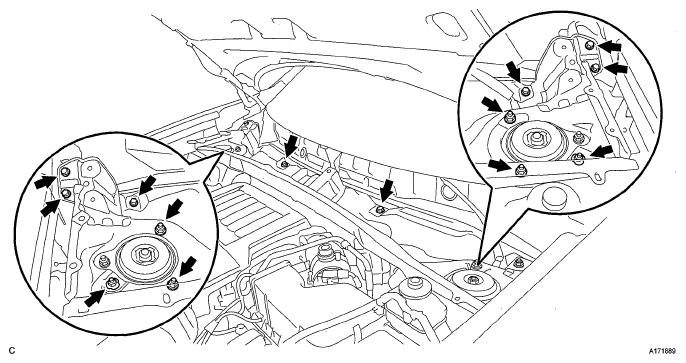

      Fig 9: Identifying Front Outer Cowl Top Panel Sub-Assembly Bolts & Nuts
      G05414371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Hold the front of the V-bank cover and raise it to disengage the 2 clips on the front of the V-bank cover sub-assembly. Continue rising the V-bank cover sub-assembly to disengage the clip on the rear of the V-bank cover sub-assembly and remove the cover.
      NOTE: Attempting to disengage both front and rear clips at the same time may cause the V-bank cover sub-assembly to break.
      Fig 10: Identifying V-Bank Cover Nuts
      G05136475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 2 AIR CLEANER INLET  (See REMOVAL )
  27. REMOVE NO. 1 AIR CLEANER INLET  (See REMOVAL )
  28. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  (See REMOVAL )
  29. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
    1. Remove the air cleaner filter element sub-assembly.
  30. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  (See REMOVAL )
  31. REMOVE AIR CLEANER BRACKET
    1. Remove the 2 bolts and air cleaner bracket.
      Fig 11: Identifying Air Cleaner Bracket Bolts
      G05414373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
    1. Disconnect the level warning switch connector.
    2. Remove the bolt, and separate the brake master cylinder reservoir assembly.
      Fig 12: Identifying Brake Master Cylinder Reservoir Assembly Bolts
      G05414374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE RESERVOIR BRACKET
    1. Remove the 2 bolts and reservoir bracket.
      Fig 13: Identifying Reservoir Bracket Bolts
      G05414375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 2 ENGINE MOUNTING STAY RH
    1. Remove the bolt, 2 nuts and No. 2 engine mounting stay RH.
      Fig 14: Identifying No. 2 Engine Mounting Stay RH Nuts
      G05136481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE ENGINE MOVING CONTROL ROD
    1. Remove the 3 bolts and engine moving control rod.
      Fig 15: Identifying Engine Moving Control Rod Nuts
      G05414377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Slide the clamp and disconnect the No. 1 fuel vapor feed hose.
      Fig 16: Identifying No. 1 Fuel Vapor Feed Hose Clamp
      G05414378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. DISCONNECT NO. 1 RADIATOR HOSE
    1. Disconnect the clamp.
    2. Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 1 radiator hose from the water outlet.
      Fig 17: Identifying No. 1 Radiator Hose Clamp
      G05414379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. DISCONNECT NO. 2 RADIATOR HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 2 radiator hose from the water inlet.
      Fig 18: Identifying No. 2 Radiator Hose Clamp
      G05414380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. DISCONNECT HEATER WATER OUTLET HOSE B
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect heater water outlet hose B from the water inlet.
      Fig 19: Identifying Heater Water Outlet Hose Claws
      G05414381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. DISCONNECT HEATER WATER INLET HOSE B
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect heater water inlet hose B from the water outlet.
      Fig 20: Identifying Heater Water Inlet Hose Claws
      G05414382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Remove the No. 1 fuel pipe clamp.
      Fig 21: Identifying No. 1 Fuel Pipe Clamp
      G05414383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube from the fuel pipe pinching part A with your fingers as shown below.
      NOTE:
      • Check for dirt and foreign objects the pipe and around the connector. Clean if necessary and then disconnect the connector.
      • Disconnect the connector by hand.
      • Do not bend, fold or rotate the nylon tube.
      • If the pipe and connector are stuck together, push and pull the connector until it becomes free.
      • Put the pipe and connector ends in vinyl bags to prevent damage and contamination.
      Fig 22: Disconnecting Fuel Tube
      G04974163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. DISCONNECT OIL COOLER INLET HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 2 oil cooler hose.
      Fig 23: Identifying No. 2 Oil Cooler Hose Claws
      G05414385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. DISCONNECT OIL COOLER OUTLET HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the oil cooler outlet hose.
      Fig 24: Identifying Oil Cooler Outlet Hose Claws
      G05414386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the nut from the control shaft lever.
      Fig 25: Identifying Control Shaft Lever Nut
      G05414387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transmission control cable assembly from the control shaft lever.
    3. Remove the clip and disconnect the transmission control cable assembly from the control cable bracket.
      Fig 26: Identifying Transmission Control Cable Assembly Clip
      G05414388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the transmission control cable assembly from the control cable clamp.
      Fig 27: Identifying Control Cable Clamp
      G04975975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. DISCONNECT ENGINE WIRE
    1. Disconnect the engine wire from the engine room relay block.
      1. Remove the No. 1 relay block cover.
      2. Remove the nut.
      3. Disconnect the engine wire connector from the engine room relay block.
      4. Unlock the engine wire. Pull the engine room wire.
        5. Fig 28: Identifying Engine Wire Connector
        G05414390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the engine wire clamp.
      Fig 29: Identifying Engine Wire Clamp
      G05414391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt, and separate the ground cables.
      Fig 30: Identifying Ground Cables & Bolt
      G05414392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the heated oxygen sensor connector and clamp.
      Fig 31: Identifying Heated Oxygen Sensor Connector & Clamp
      G05414393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts, clip and 2 ground cables.
      Fig 32: Identifying Ground Cables Clips & Bolts
      G05414394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the 3 ECM connectors, 2 junction block connectors and clamp.
      Fig 33: Identifying ECM & Junction Block Connectors
      G05414395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts and clamp, and separate the engine wire from the body.
      Fig 34: Identifying Engine Wire Clamp Nuts
      G05414396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. DISCONNECT UNION TO CHECK VALVE HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the union to check valve hose.
      Fig 35: Identifying Valve Hose Claws
      G05136500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  (See REMOVAL )
  48. REMOVE TAIL EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  49. REMOVE CENTER EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  50. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY  (See REMOVAL )
  51. REMOVE FRONT EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  52. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH  (See REMOVAL )
  53. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  54. REMOVE FRONT AXLE HUB NUT LH  (See REMOVAL )
  55. REMOVE FRONT AXLE HUB NUT RH

    HINT:

    Use the same procedure described for the LH side.

  56. DISCONNECT FRONT SPEED SENSOR LH  (See REMOVAL )
  57. DISCONNECT FRONT SPEED SENSOR RH

    HINT:

    Use the same procedure described for the LH side.

  58. DISCONNECT TIE ROD ASSEMBLY LH  (See REMOVAL )
  59. DISCONNECT TIE ROD ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  60. SEPARATE NO. 1 FRONT SUSPENSION LOWER ARM LH  (See REMOVAL )
  61. SEPARATE NO. 1 FRONT SUSPENSION LOWER ARM RH

    HINT:

    Use the same procedure described for the LH side.

  62. SEPARATE FRONT AXLE ASSEMBLY LH  (See REMOVAL )
  63. SEPARATE FRONT AXLE ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  64. DISCONNECT STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
  65. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY  (See REMOVAL )
  66. DISCONNECT SUCTION HOSE SUB-ASSEMBLY  (See REMOVAL )
  67. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine lifter.
    2. Remove the 6 bolts, 2 nuts, and frame side rail plates RH and LH.
      Fig 36: Identifying Frame Side Rail Plates RH & LH Bolts
      G05414398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 bolts, 2 nuts, and front suspension member rear braces RH and LH.
      Fig 37: Identifying Front Suspension Member Rear Braces RH & LH Bolts
      G05414399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Operate the engine lifter, then remove the engine assembly from the vehicle.
      NOTE: Make sure that the engine is clear of all wiring and hoses.
  68. REMOVE V-RIBBED BELT  (See REMOVAL  )
  69. REMOVE FRONT STABILIZER BAR (for 4WD)

    HINT:

    See REMOVAL .

  70. REMOVE POWER STEERING LINK ASSEMBLY (for 4WD)  (See REMOVAL )
  71. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
    1. Disengage the clamp.
    2. Disconnect the connector.
      Fig 38: Identifying Connector
      G05418823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage each clamp.
      Fig 39: Identifying Clamps
      G05414401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts and the compressor and magnetic clutch.
      Fig 40: Identifying Compressor Bolts
      G05418825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE VENTILATION HOSE
    1. Using pliers, grip the claws of the 2 clips and slide the 2 clips to remove the ventilation hose.
      Fig 41: Identifying Ventilation Hose Claws
      G05136512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    1. Disconnect the 2 water by-pass hoses from the throttle with motor body assembly (*1).
    2. Disconnect the vapor feed hose (*2).
    3. Disconnect the throttle with motor body assembly connector and clamp (*3).
    4. Disconnect the No. 1 ventilation hose.
      Fig 42: Identifying Vapor Feed Hose, Motor Body Assembly Connector & Clamp
      G05136513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector.
      Fig 43: Identifying Connector
      G05136514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 bolts, No. 1 surge tank stay and throttle body bracket.
    7. Using a 5 mm socket hexagon wrench, remove the 4 bolts (*4).
    8. Remove the 2 nuts and intake air surge tank (*5).
      Fig 44: Identifying Intake Air Surge Tank Nuts
      G05136515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the gasket from the intake air surge tank.
  74. REMOVE ENGINE WIRE
    1. Disconnect the oil pressure switch cover and clamp.
      Fig 45: Identifying Oil Pressure Switch Cover Clamp
      G05414407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the oil pressure switch assembly connector.
      Fig 46: Identifying Oil Pressure Switch Assembly Connector
      G05414408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the crankshaft position sensor connector and clamp.
      Fig 47: Identifying Crankshaft Position Sensor Connector & Clamp
      G05414409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the generator assembly connector and clamp.
    5. Remove the nut and separate the engine wire from the generator assembly.
      Fig 48: Identifying Engine Wire Nut
      G05414410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the purge VSV connector, air fuel ratio sensor connector and 2 clamps.
      Fig 49: Identifying Purge VSV Connector, Air Fuel Ratio Sensor Connector & Clamps
      G05414411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt.
    8. Disconnect the engine coolant temperature sensor connector, knock control sensor wire connector and 2 clamps.
      Fig 50: Identifying Engine Coolant Temperature Sensor Connector & Clamps
      G05414412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disconnect the air fuel ratio sensor connector and clamp.
      Fig 51: Identifying Air Fuel Ratio Sensor Connector & Clamp
      G05414413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the bolt and 2 nuts.
    11. Disconnect the 2 clamps, radio setting condenser connector, 3 ignition coil assembly connectors, 2 camshaft timing oil control valve assembly connectors, 2 VVT sensor connectors and 3 injector assembly connectors, and separate the engine wire from the cylinder head cover sub-assembly RH.
      Fig 52: Identifying Radio Setting Condenser Connector, Ignition Coil Assembly Connectors & Clamps
      G05414414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the 3 bolts.
    13. Disconnect the 2 clamps, radio setting condenser connector, 3 ignition coil assembly connectors, 2 camshaft timing oil control valve assembly connectors, 2 VVT sensor connectors and 3 injector assembly connectors, and separate the engine wire from the engine assembly.
  75. REMOVE STARTER ASSEMBLY  (See REMOVAL )
  76. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and transverse engine mounting bracket.
      Fig 53: Identifying Transverse Engine Mounting Bracket Bolts
      G05414415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE MANIFOLD STAY
    1. Remove the bolt, nut, and manifold stay.
      Fig 54: Identifying Manifold Stay Bolt & Nut
      G05136510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. INSTALL ENGINE HANGERS
    1. Install the 2 engine hangers with the 4 bolts as shown below.

      Part No.: No. 1 engine hanger 12281-31120

      No. 2 engine hanger 12282-31100

      Bolts 91671-10825

      Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

      Fig 55: Identifying Engine Hangers & Bolts
      G04996618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the engine sling device and hang the engine with the chain block.
  79. REMOVE FRONT FRAME ASSEMBLY
    1. Disconnect the active mount VSV connector and harness clamp.
      Fig 56: Identifying Active Mount VSV Connector & Harness Clamp
      G05414418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 3 nuts.

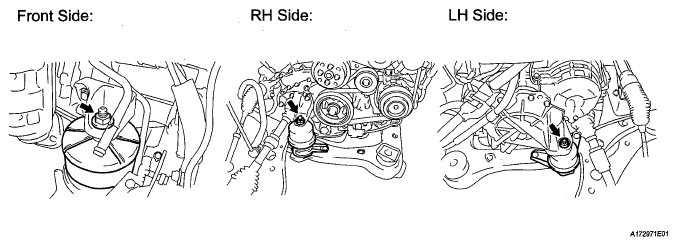

      Fig 57: Identifying Nuts
      G05414419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 hole plugs.
      Fig 58: Identifying Hole Plugs
      G05414420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 9 nuts.

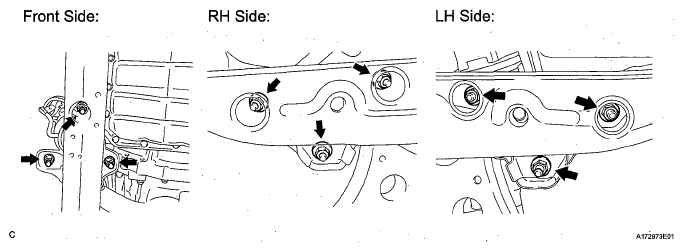

      Fig 59: Identifying Nuts
      G05414421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and separate the engine with transaxle from the front frame assembly.
      Fig 60: Identifying Front Frame Assembly Bolts
      G05414422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
    1. Remove the nut and front engine mounting insulator assembly.
      Fig 61: Identifying Front Engine Mounting Insulator Assembly Nut
      G05414423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. REMOVE TRANSVERSE ENGINE MOUNTING INSULATOR
    1. Remove the nut and transverse engine mounting insulator.
      Fig 62: Identifying Transverse Engine Mounting Insulator Nut
      G05414424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. REMOVE TRANSVERSE ENGINE MOUNTING INSULATOR
    1. Remove the nut and transverse engine mounting insulator.
      Fig 63: Identifying Transverse Engine Mounting Insulator Nut
      G05414425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH  (See REMOVAL )
  84. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (for 2WD)  (See REMOVAL )
  85. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (for 4WD)  (See REMOVAL )
  86. REMOVE TRANSFER STIFFENER PLATE RH (for 4WD)  (See REMOVAL )
  87. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for 2WD)  (See REMOVAL )
  88. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for 4WD)  (See REMOVAL )
  89. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY  (See REMOVAL  )
  90. SECURE ENGINE
    1. Secure the engine onto an engine stand with the bolts.
    2. Remove the engine hangers.
      Fig 64: Identifying Engine Hangers With Bolts
      G04996618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. REMOVE TRANSVERSE ENGINE MOUNTING INSULATOR
    1. Remove the 2 hole plugs.
      Fig 65: Identifying Hole Plugs
      G05414427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and transverse engine mounting insulator.
      Fig 66: Identifying Transverse Engine Mounting Insulator Nuts
      G05414428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
