Steering Gear: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE  (See REMOVAL )
  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM  (See REPLACEMENT )
  3. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  4. REMOVE BATTERY  (See REMOVAL )
  5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  6. SECURE STEERING WHEEL
    1. Secure the steering wheel with the seat belt in order to prevent it from rotating.

      HINT:

      This operation is necessary to prevent damage to the spiral cable.

      Fig 1: Securing Steering Wheel With Seat Belt
      G05418287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT WHEELS
  8. REMOVE ENGINE UNDER COVER ASSEMBLY  (See REMOVAL )
  9. REMOVE NO. 1 ENGINE UNDER COVER  (See REMOVAL )
  10. REMOVE NO. 2 ENGINE UNDER COVER  (See REMOVAL )
  11. REMOVE FLOOR UNDER COVER LH  (See REMOVAL )
  12. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY LH  (See REMOVAL )
  13. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY RH  (See REMOVAL )
  14. REMOVE FRONT FENDER LINER LH  (See REMOVAL )
  15. REMOVE FRONT FENDER LINER RH  (See REMOVAL )
  16. REMOVE FRONT FENDER APRON SEAL LH  (See REMOVAL )
  17. REMOVE FRONT FENDER APRON SEAL RH  (See REMOVAL )
  18. DRAIN ENGINE OIL  (See REPLACEMENT )
  19. DRAIN ENGINE COOLANT  (See REPLACEMENT )
  20. DRAIN AUTOMATIC TRANSAXLE FLUID  (See REMOVAL )
  21. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See REMOVAL )
  22. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See REMOVAL )
  23. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See REMOVAL )
  24. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See REMOVAL )
  25. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY  (See REMOVAL )
  26. REMOVE V-BANK COVER SUB-ASSEMBLY  (See REMOVAL )
  27. REMOVE NO. 2 AIR CLEANER INLET  (See REMOVAL )
  28. REMOVE NO. 1 AIR CLEANER INLET  (See REMOVAL )
  29. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  (See REMOVAL )
  30. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY  (See REMOVAL )
  31. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  (See REMOVAL )
  32. REMOVE AIR CLEANER BRACKET  (See REMOVAL )
  33. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY  (See REMOVAL )
  34. REMOVE RESERVOIR BRACKET  (See REMOVAL )
  35. REMOVE NO. 2 ENGINE MOUNTING STAY RH  (See REMOVAL )
  36. REMOVE ENGINE MOVING CONTROL ROD  (See REMOVAL )
  37. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE  (See REMOVAL )
  38. DISCONNECT NO. 1 RADIATOR HOSE  (See REMOVAL )
  39. DISCONNECT NO. 2 RADIATOR HOSE  (See REMOVAL )
  40. DISCONNECT HEATER WATER OUTLET HOSE B  (See REMOVAL )
  41. DISCONNECT HEATER WATER INLET HOSE B  (See REMOVAL )
  42. DISCONNECT FUEL TUBE SUB-ASSEMBLY  (See REMOVAL )
  43. DISCONNECT OIL COOLER INLET HOSE  (See REMOVAL )
  44. DISCONNECT OIL COOLER OUTLET HOSE  (See REMOVAL )
  45. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY  (See REMOVAL )
  46. DISCONNECT ENGINE WIRE  (See REMOVAL )
  47. DISCONNECT UNION TO CHECK VALVE HOSE  (See REMOVAL )
  48. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  (See REMOVAL )
  49. REMOVE TAIL EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  50. REMOVE CENTER EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  51. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY  (See REMOVAL )
  52. REMOVE FRONT EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  53. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH  (See REMOVAL )
  54. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  55. REMOVE FRONT AXLE HUB NUT LH  (See REMOVAL )
  56. REMOVE FRONT AXLE HUB NUT RH

    HINT:

    Perform the same procedure as for the LH side.

  57. DISCONNECT FRONT SPEED SENSOR LH  (See REMOVAL )
  58. DISCONNECT FRONT SPEED SENSOR RH

    HINT:

    Perform the same procedure as for the LH side.

  59. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the bolt and slide the steering intermediate shaft assembly.
      NOTE: Do not separate the steering intermediate shaft assembly from the power steering link assembly.
      Fig 2: Identifying Steering Intermediate Shaft Sub-Assembly Bolt
      G05418193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the steering intermediate shaft assembly and the power steering link assembly.
      Fig 3: Identifying Matchmarks On Steering Intermediate Shaft Assembly & Power Steering Link Assembly
      G05418194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the steering intermediate shaft assembly from the power steering link assembly.
  60. SEPARATE TIE ROD ASSEMBLY LH
    1. Remove the cotter pin and the nut.
    2. Install SST to the tie rod end.

      SST 09960-20010 (09961-02060)

      NOTE: Make sure that the upper ends of the tie rod end and SST are aligned.
      Fig 4: Identifying SST & Tie Rod End
      G05418290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, separate the tie rod end from the steering knuckle.

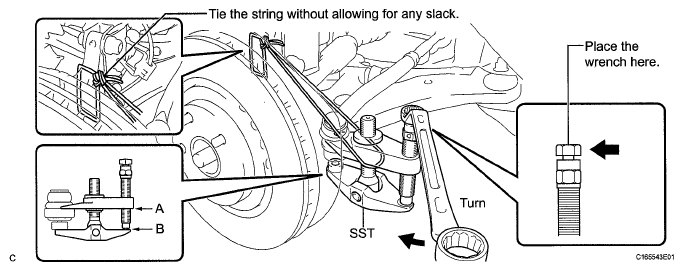

      Fig 5: Separating Tie Rod End Of Steering Knuckle Using SST
      G05418291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09960-20010 (09961-02010)

      NOTE:
      • When securing SST to the steering knuckle, be sure to tighten the string of SST to prevent it from falling.
      • Install SST so that A and B are parallel.
      • Be sure to place the wrench on the part indicated in the illustration.
      • Do not damage the front disc brake dust cover.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
  61. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  62. SEPARATE NO. 1 FRONT SUSPENSION LOWER ARM LH  (See REMOVAL )
  63. SEPARATE NO. 1 FRONT SUSPENSION LOWER ARM RH

    HINT:

    Perform the same procedure as for the LH side.

  64. SEPARATE FRONT AXLE ASSEMBLY LH  (See REMOVAL )
  65. SEPARATE FRONT AXLE ASSEMBLY RH
  66. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY  (See REMOVAL )
  67. DISCONNECT SUCTION HOSE SUB-ASSEMBLY  (See REMOVAL )
  68. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE  (See REMOVAL )
  69. REMOVE FRONT NO. 1 STABILIZER BRACKET LH  (See REMOVAL )
  70. REMOVE FRONT NO. 1 STABILIZER BRACKET RH  (See REMOVAL )
  71. REMOVE FRONT STABILIZER BAR
  72. REMOVE POWER STEERING LINK ASSEMBLY
    1. Remove the 2 bolts, 2 nuts, and power steering link assembly.
      NOTE: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut fixed.
      Fig 6: Identifying Power Steering Link Assembly Bolts & Nuts
      G05418292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE TIE ROD ASSEMBLY LH
    1. Put matchmarks on the tie rod assembly LH and the steering rack end sub-assembly.
      Fig 7: Identifying Matchmarks On Tie Rod Assembly LH & Steering Rack End Sub-Assembly
      G05418293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the lock nut, and remove the tie rod assembly LH and the lock nut.
  74. REMOVE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.
