Primary Pulley and Secondary Pulley: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Select shims for pulley alignment. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Primary Pulley and Secondary Pulley>ADJUSTMENT .
  2. Install the seal ring to the input shaft.
    NOTE:
    • Use new seal rings.
    • When installing the seal rings, do not expand the seal rings too much.
    • Apply CVTF to the seal rings.

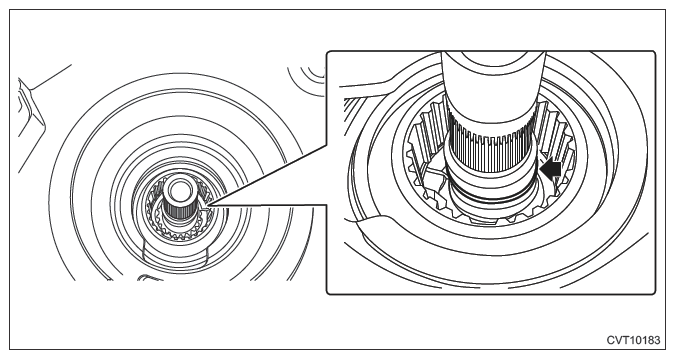

    Fig 1: Locating Seal Ring To Input Shaft
    G11255858Courtesy of SUBARU OF AMERICA, INC.
  3. Install the seal ring to drive pinion retainer.
    NOTE:
    • Use new seal rings.
    • When installing the seal rings, do not expand the seal rings too much.
    • Apply CVTF to the seal rings.

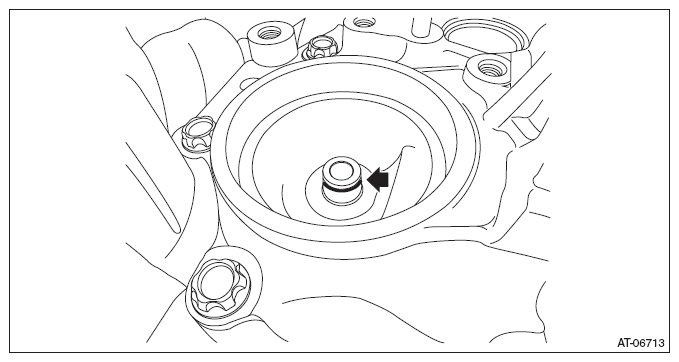

    Fig 2: Locating Seal Ring To Drive Pinion Retainer
    G08317998Courtesy of SUBARU OF AMERICA, INC.
  4. Install the selected shims to the primary pulley bearing catch surface.
  5. Install the secondary pulley to the drive pinion retainer.

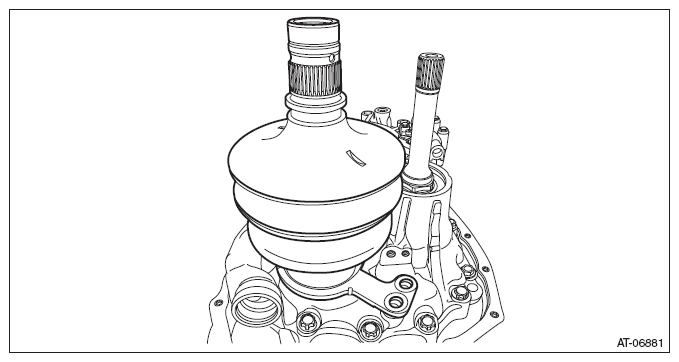

    Fig 3: Installing Secondary Pulley To Drive Pinion Retainer
    G08318002Courtesy of SUBARU OF AMERICA, INC.
  6. Install and tighten the secondary pulley securing bolts.
    1. Tighten the three bolts until the seating surfaces contact the bearing retainer.
      NOTE:
      • Be careful not to tilt the bearing retainer of the secondary pulley.
      • Apply CVTF to the bolt.
      Fig 4: Identifying Secondary Pulley And Bearing Retainer
      G11265712Courtesy of SUBARU OF AMERICA, INC.
    2. Tighten the bolts in the order of (A) → (B) → (C) → (B).

      Tightening torque:

      67.5 N.m (6.9 kgf-m, 49.8 ft-lb)

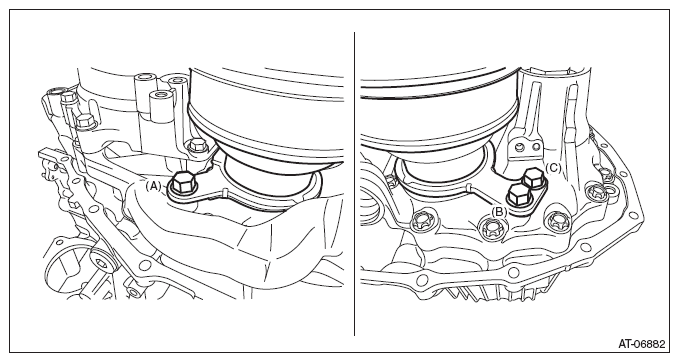

      Fig 5: Secondary Pulley Bolts Tightening Sequence
      G08318004Courtesy of SUBARU OF AMERICA, INC.
  7. Place the variator chain on the V groove of the secondary pulley, and set the ST.

    ST 18769AA010 EXPANDER PULLEY

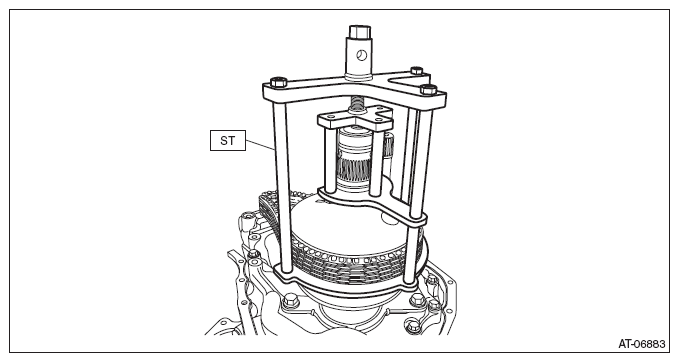

    Fig 6: Placing Variator Chain On V Groove Of Secondary Pulley
    G08318005Courtesy of SUBARU OF AMERICA, INC.
  8. Expand the V groove of the secondary pulley.
  9. Install the primary pulley to the reverse brake housing together with the variator chain.
    CAUTION: Cover the V grooves of primary pulley and secondary pulley with cloth to protect the both pulleys and variator chain from scratching.
    1. Intersect the V groove of primary pulley and the V groove of secondary pulley and install the secondary pulley while placing the variator chain on secondary pulley.

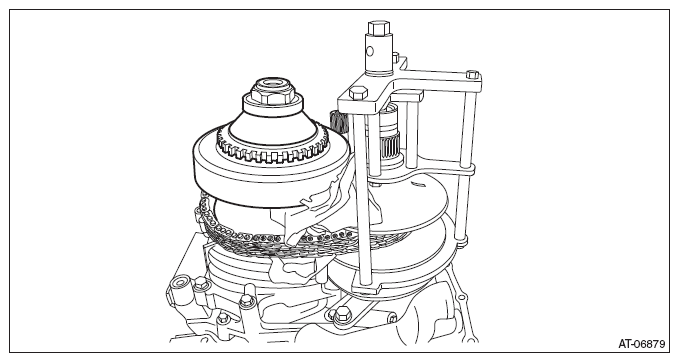

      Fig 7: Installing Variator Chain On Secondary Pulley
      G08317996Courtesy of SUBARU OF AMERICA, INC.
    2. Install the primary pulley to the reverse brake housing so that the bolt hole of primary bearing retainer and the bolt hole of reverse brake housing are aligned.
  10. Install the primary pulley bolt.

    Tightening torque:

    21 N.m (2.1 kgf-m, 24.3 ft-lb)

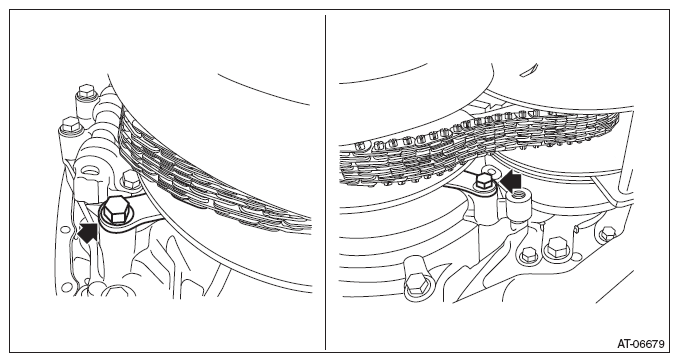

    Fig 8: Locating Primary Pulley Bolt
    G08317995Courtesy of SUBARU OF AMERICA, INC.
  11. Install the chain guide.
    1. Place the support rod inside of the variator chain.
      CAUTION: Protect the both pulleys and variator chain from scratching.

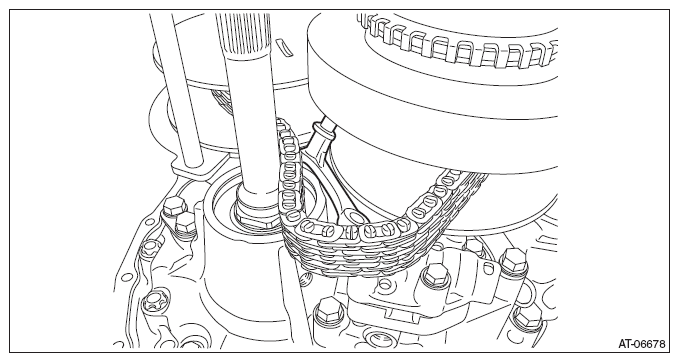

      Fig 9: Placing Support Rod Inside Of Variator Chain
      G08317994Courtesy of SUBARU OF AMERICA, INC.
    2. Install the chain guide to the variator chain.

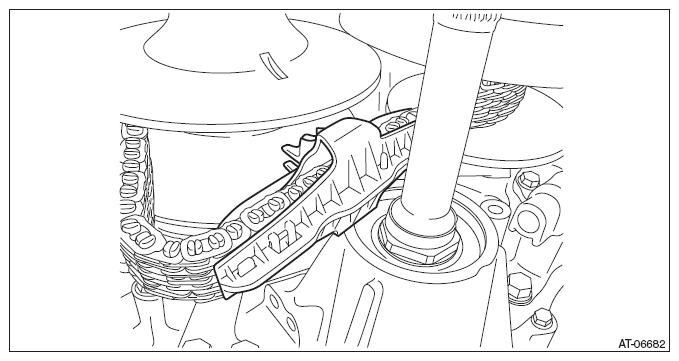

      Fig 10: Installing Chain Guide To Variator Chain
      G08318009Courtesy of SUBARU OF AMERICA, INC.
    3. Move the chain guide to the support rod side.
    4. While holding the support rod, press the chain guide so that the support rod runs through between the protrusions of chain guide and install the chain guide to the support rod.

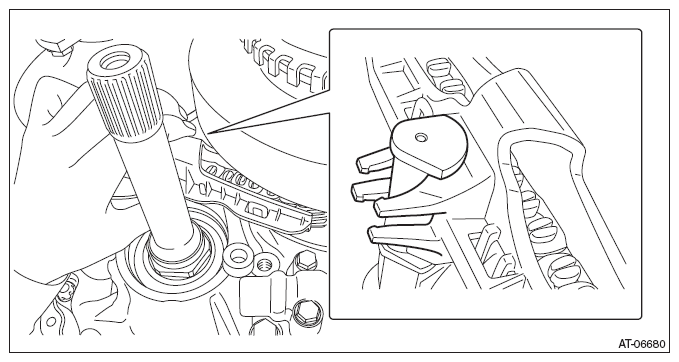

      Fig 11: Installing Chain Guide To Support Rod
      G08318010Courtesy of SUBARU OF AMERICA, INC.
    5. Install the support rod.

      Tightening torque:

      21 N.m (2.1 kgf-m, 15.5 ft-lb)

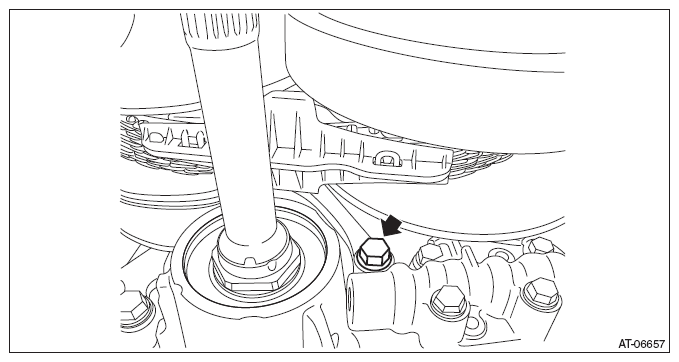

      Fig 12: Locating Support Rod Bolt
      G08317990Courtesy of SUBARU OF AMERICA, INC.
    6. Install the lubrication pipe.

      Tightening torque:

      21 N.m (2.1 kgf-m, 15.5 ft-lb)

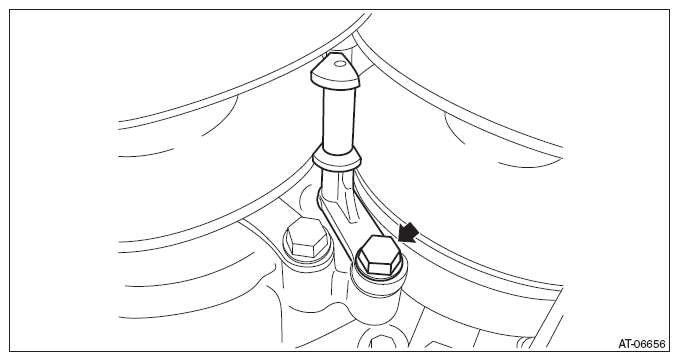

      Fig 13: Locating Lubrication Pipe Bolt
      G08317989Courtesy of SUBARU OF AMERICA, INC.

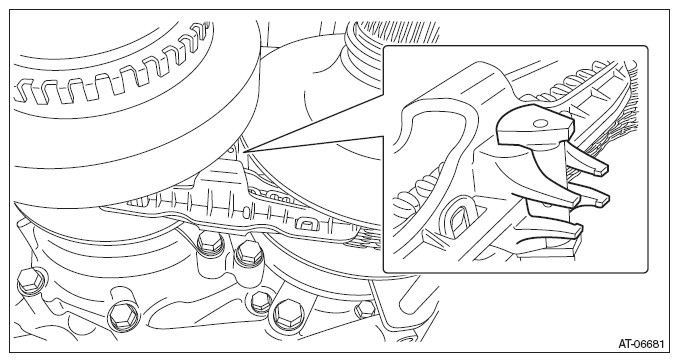

    7. Install the chain guide so that the lubrication pipe runs through between the protrusions of each chain guide. Then remove the ST (PULLEY EXPANDER).
      Fig 14: Installing Chain Guide
      G08318013Courtesy of SUBARU OF AMERICA, INC.
  12. Install the reduction drive gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Drive Gear>INSTALLATION .
  13. Select the reduction drive gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Drive Gear>ADJUSTMENT .
  14. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Case>INSTALLATION .
  15. Install the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Device>INSTALLATION .
  16. Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan and Strainer>INSTALLATION .
  17. Install the reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Driven Gear>INSTALLATION .
  18. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Parking Pawl>INSTALLATION .
  19. Install the transfer driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Driven Gear>INSTALLATION .
  20. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>INSTALLATION .
  21. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
  22. Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>INSTALLATION .
  23. Install the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Secondary Speed Sensor>INSTALLATION .
  24. Install the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Primary Speed Sensor>INSTALLATION .
  25. Install the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Turbine Speed Sensor>INSTALLATION .
  26. Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Harness>INSTALLATION .
  27. Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Control Valve Body>INSTALLATION .
  28. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Air Breather Hose>INSTALLATION .
  29. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
