Transfer Clutch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the thrust bearing.
    NOTE: Make sure to install in the right direction.

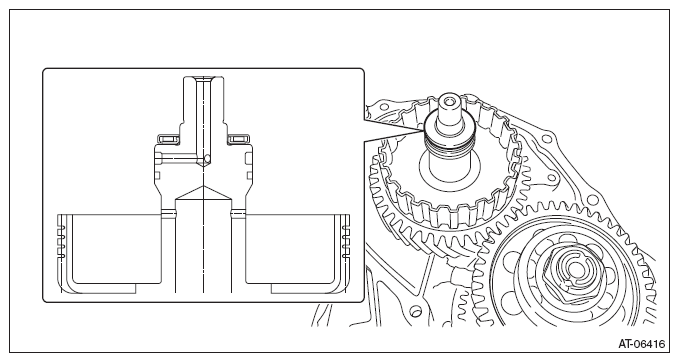

    Fig 1: Installing Thrust Bearing
    G08317902Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch assembly.

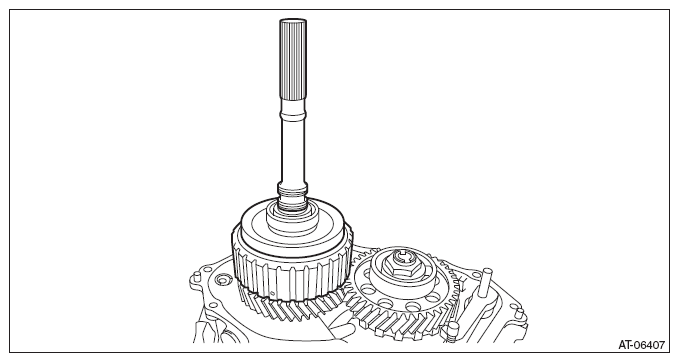

    Fig 2: Installing Transfer Clutch Assembly
    G08317898Courtesy of SUBARU OF AMERICA, INC.
  3. Select the transfer driven gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>ADJUSTMENT .
  4. Attach the selected transfer driven gear shim to extension case with vaseline.
  5. Remove the transfer clutch assembly.
  6. Install the seal ring to the transfer clutch assembly.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.
    • Apply CVTF to the seal rings.
    Fig 3: Locating Seal Ring To Transfer Clutch Assembly
    G08317900Courtesy of SUBARU OF AMERICA, INC.
  7. Install the seal ring to the transfer driven gear assembly.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.
    • Apply CVTF to the seal rings.

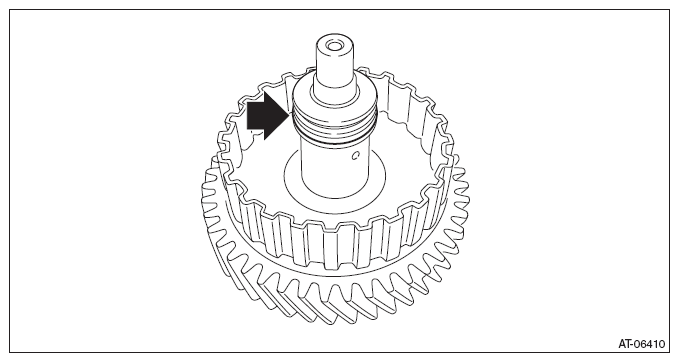

    Fig 4: Locating Seal Ring To Transfer Driven Gear Assembly
    G08317901Courtesy of SUBARU OF AMERICA, INC.
  8. Install the transfer clutch assembly.
  9. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
  10. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
