Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the reduction driven gear assembly and spacer oil.

    Tightening torque:

    17 N.m (1.7 kgf-m, 12.5 ft-lb)

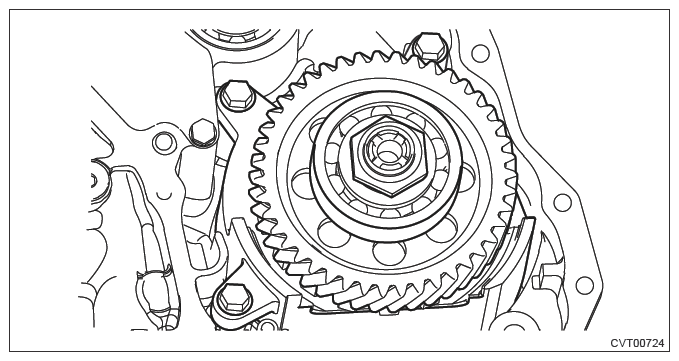

    Fig 1: Identifying Reduction Driven Gear Assembly And Spacer Oil
    G11265632Courtesy of SUBARU OF AMERICA, INC.
  2. Select the transfer drive gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Drive Gear>ADJUSTMENT .
  3. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Parking Pawl>INSTALLATION .
  4. Attach the selected transfer drive gear shim to extension case with vaseline.
  5. Install the transfer driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Driven Gear>INSTALLATION .
  6. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>INSTALLATION .
  7. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
  8. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
