Oil Pan and Strainer: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the mating surface of oil pan and transmission case.
Install the O-ring to the oil strainer.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Fig 1: Installing O-Ring To Oil Strainer
Courtesy of SUBARU OF AMERICA, INC.
Install the oil strainer.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

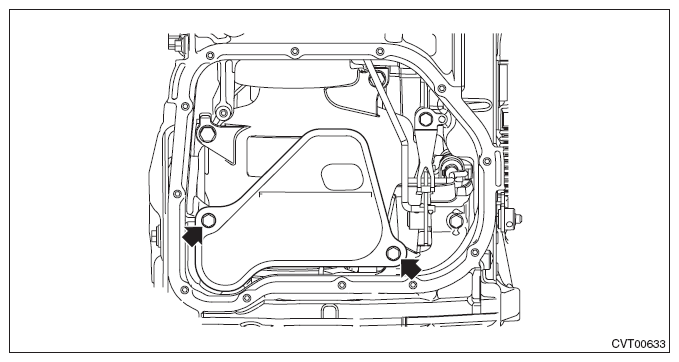

Fig 2: Locating Oil Strainer Bolts
Courtesy of SUBARU OF AMERICA, INC.
Clean the magnet.
Attach the magnet at the specified position of the oil pan.
Apply liquid gasket all around the oil pan mating surface seamlessly.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

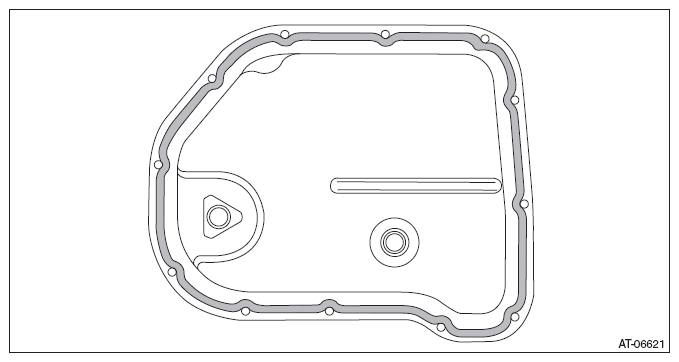

Fig 3: Identifying Oil Pan Mating Surface Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

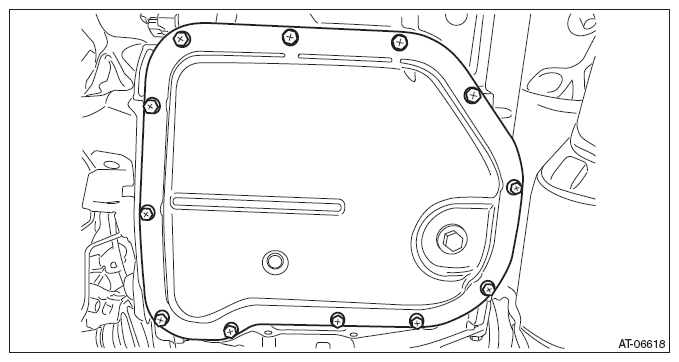

Fig 4: Identifying Oil Pan Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Refill CVTF and adjust the level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
